LED Driver Cross Reference:
Fulham Company Group is a leading global provider of intelligent, sustainable commercial lighting components and electronics for use in commercial general lighting, parking structure, signage, horticultural, UV and other applications. The company develops and manufactures a variety of award-winning LED and emergency products, as well as legacy products across multiple lighting platforms. Fulham is dedicated to intelligent, sustainable lighting solutions that give their users the power to control their light.
Fulham brings you their ThoroLED Drivers. These ThoroLEDs are constant voltage drivers that are NON-dimmable and come in single and multiple output channel models. These drivers have a wide range of wattages and current outputs to meet numerous applications. They will most definitely stand the test of time with a 5 year limited warranty. The rugged construction guarantees performance and reliability various settings. The ThoroLED driver is comes in compact (square) or linear (long) style cases, allowing them to fit into your application.

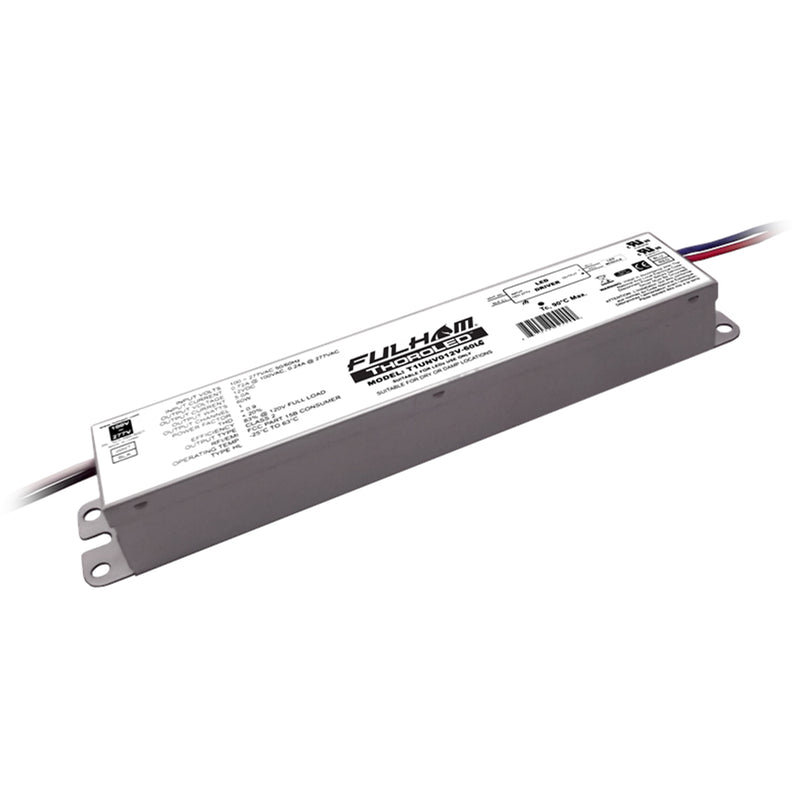

This item is the Fulham ThoroLED low voltage power supply part number T1UNV012V-60LG. The input voltage is universal 100-277 volt and is a single-output channel, non-dimming LED driver. The output current is 5A output. This driver will operate any LED module designed for constant voltage input of 12V and has a maximum input current of 5A. The Fulham ThoroLED Driver comes with multiple protections including input surge protection, input current, output short circuit, output open circuit, output to ground short, and overload protection. The ThoroLED 100-277V 72W driver's approvals include, cURus Class 2, IP68, Type HL/TL, LVLE, CE, RoHS, and Dry/Damp/Wet Locations.
|Output Current||0-5A (5000mA)|
|Input Current||0.74A @ 100V; 0.27A @ 277V|
|Input Wattage||72 Watt|
|Output Wattage||60 Watt|
|THD (Total Harmonic Distortion) Power||20%|
|Max Case Temperature||89°C|
|Operating Temperature||-20°C to 55°C|
|Rated Life||50,000 Hours|
|Dimensions||9.53" L x 1.67" W x 1.34" H|
|Certifications||RoHS Compliant, cURus Class 2|
|Environment||Dry or Damp Location|
|Warranty||5 Year Limited|
