LED Driver Cross Reference:
Universal Lighting's Everline® LED drivers are ideal for maximum energy savings and control applications. These LED power supplies are proven in the field and feature (depending on driver) high efficiency Constant Voltage, high range voltage or universal voltage, Class B transient surge protection and/or dimming functionally. If you need an LED driver replacement be sure to ask for Everline® to make sure your application will operate to its full potential.

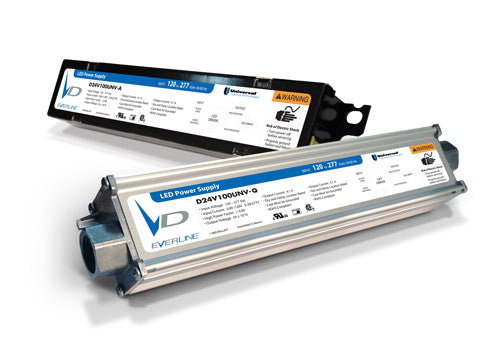

This item is the Universal Everline LED power supply part number D24V100UNV-A (UPC 768386553069). The input voltage is a universal 120-277 volt and has a 24V constant voltage output. This LED driver is NOT dimmable. The output current is 4000mA (4.0 Amps) with 96 watt maximum output power. Each color coded lead is 8 inches long. Universal's Everline LED power supplies are UL Dry and Damp Location Rated, FCC Part 15 Class A for non-consumer limits.
Universal Lighting Technologies warrants to the purchaser that each power supply will be free from defects in material or workmanship for a period of 5 years from the date of manufacture when properly installed per instructions and under normal operating conditions of use.
|Output Current||4.0A (4000mA)|
|Input Current||0.98A @120V; 0.39A @277V|
|Input Wattage||112 Watt|
|Output Wattage||100 Watt|
|THD (Total Harmonic Distortion) Power||<10%|
|Operating Temperature||-40°C to 50°C|
|Dimensions||9.50" L x 1.70" W x 1.18" H|
|Certifications||Class 2, RoHS Compliant, FCC|
|Environment||Dry and Damp Location|
|Warranty||5 Year Limited|
