2x2 30 Watt Field Selectable CCT Dimmable Backlit LED Flat Panel 3500/4000/5000K

Halco Lighting Technologies SKU: 10364
Halco Lighting Technologies 2x2 30 Watt Field Selectable CCT Dimmable Backlit LED Flat Panel 3500/4000/5000K Selectable

2x2 30 Watt Field Selectable CCT Dimmable Backlit LED Flat Panel 3500/4000/5000K

Halco Lighting Technologies SKU: 10364
Save 37%
/
Color Temp
Limited quantity available
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

DIRECT REPLACEMENT:  2x2 20/30/35W Selectable BackLit LED Dimmable Flat Panel 3500/4000/5000K

Halco Lighting Technologies continues to expand their ProLED line of incredible LED products. The ProLED Color Selectable Backlit Panel Series replaces 9 products with just 3, allowing the user to select from 3 different color temperatures in either 1x4, 2x2, or 2x4 size. Reducing the need to carry multiple products, ProLED Select Backlit panels are lightweight and feature a low-profile side mount driver design to save space during shipping and installation. Selecting the perfect look and feel for your application using a simple switch on the driver enclosure couldn't be any easier. These LED panels provide a reliable performance in a budget-friendly design.

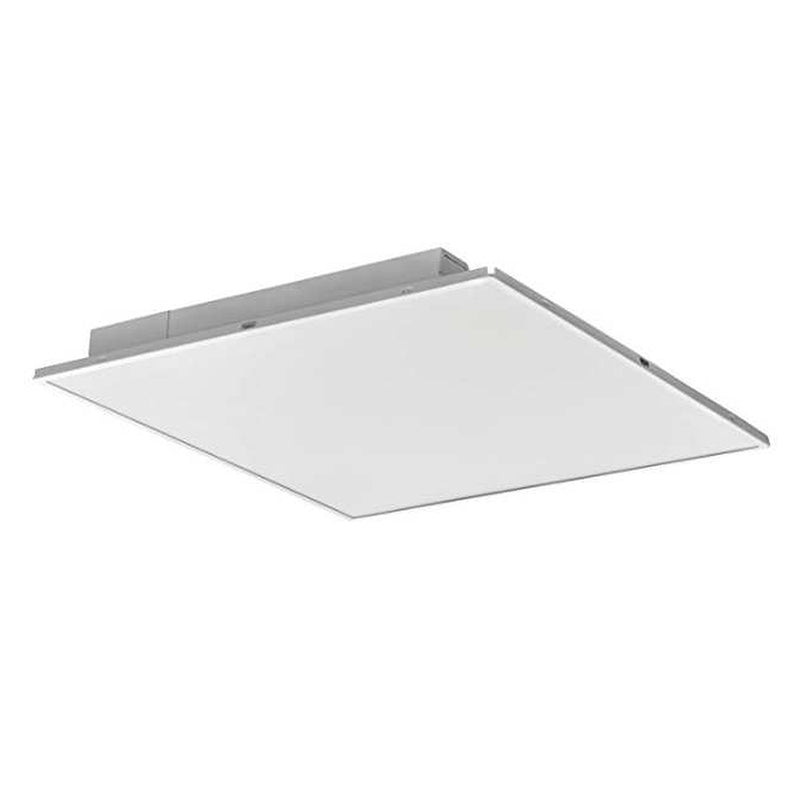

This is the Halco ProLED 10364 (22FSBPL/30U8D). This lightweight 2x2 LED Flat Panel consumes just 30 watts of 120-277 volt energy and the driver has a power factor of 90%. The 10364 generates an average of 3,000 lumens - that's an efficacy of 100 lm/W with a rated lumen maintenance of 50,000 hours based on L70 lumen depreciation. This low profile designed LED flat panel can change between 3500K Bright White, 4000K Cool White, and 5000K Daylight with a simple toggle switch located on the back of the fixture, and has a CRI of at least 80. This 2x2 flat light fixture is designed to be compatible with most standard 0-10V dimming controls. All Halco's LED Flat Panel fixtures carry a 5 Year Warranty and are rated for Damp locations.

Manufacturer Halco Lighting Technologies
MPN 22FSBPL/30U8D
SKU 10364
UPC 807154103645
Lighting Technology LED
Wattage 30 Watt
Voltage Universal 120-277V
Color Temperature (Kelvin) Selectable 3500/4000/5000K
Lumens 3,000 Lumens
Efficiency (Lumens Per Watt) 100 LPW
Dimmable Yes 0-10V
Rated Life 50,000 Hours L70
CRI (Color Rendering Index) 80+
Power Factor <0.9
Housing Aluminum
Operating Temperature -20° C - 40° C
Dimensions 23.74" x 23.74" x 1.5"
Certifications IP40, ETL, RoHS Compliant
Environment Damp Location, IC Rated
Warranty 5 Year Standard

Halco Field Selectable CCT Backlit LED Flat Panel Specification Sheet
