3 Inch 10 Watt 90CRI AC Circline LED Light Engine

Keystone Technologies SKU: KT-RKIT10AC-3C-927-FDIM
Keystone Technologies 3 Inch 10 Watt 90CRI AC Circline LED Light Engine 2700K Warm White

3 Inch 10 Watt 90CRI AC Circline LED Light Engine

Keystone Technologies SKU: KT-RKIT10AC-3C-927-FDIM
  • Energy Star, Enclosed Fixture Rated
Regular price $35.46
Color Temp
Please call to confirm availability.
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

Until recently, the main objections to using AC lighting or on-board LED drivers were the noticeable flicker and lack of dimming capability. Keystone has resolved these drawbacks with our new Future Fit AC LED light engines, offering minimal flicker, and smooth, consistent, dimming with phase control dimmers.

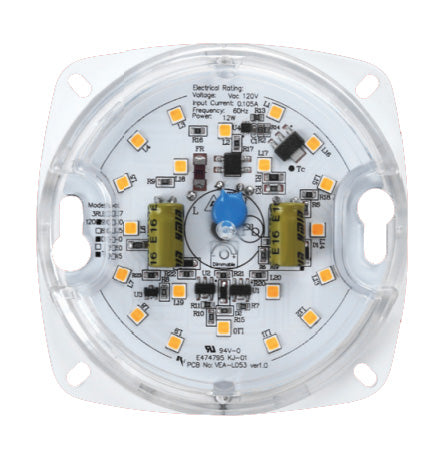

Keystone has eliminated the need for a separate driver to power LED modules by putting the driver directly on the circuit board. Driver-on-board AC LED light engines are considered to be the future of commercial LED solutions, coming in at a low cost and without any perceptible flicker.

The Keystone FutureFit engine comes 10 watts of 90 CRI. This LED circular light engine produces a lumen output between 700-820 lumens depending on choice of color temperature: 2700K warm white, 3000K warm white, 4000K cool white and 5000K daylight. This circline light engine is operated on the voltage of 120V, making it a high-performance, cost-effective replacement for incandescent, CFL, and Circline light sources in residential and commercial ceiling fixtures, including flush mount ceiling lights. This led module is 3.3" in overall diameter with a thickness of only 0.76".

Manufacturer Keystone Technologies
Color Temperature (Kelvin) 2700K Warm White 3000K Warm White 4000K Cool White 5000K Daylight
UPC 890949016732 890949016749 890949016756 890949016763
Lumens 700 Lumens 750 Lumens 800 Lumens 820 Lumens
Efficiency (Lumens Per Watt) 70 LPW 75 LPW 80 LPW 82 LPW
Lighting Technology LED
Wattage 10 Watts
Voltage 120V
Dimmable Yes, Phase Control
Rated Life 50,000 Hours
CRI (Color Rendering Index) 90 CRI
Power Factor >.90
Fluorescent Equivalent 18 Watts
Incandescent Equivalent 60 Watts
Operating Temperature –18ºC/0ºF to 40ºC/104Fº
Dimensions 3.3" x 3.3" x 0.76"
Certifications Enclosed Fixture Rated, Energy Star
Warranty 5 Year Standard
