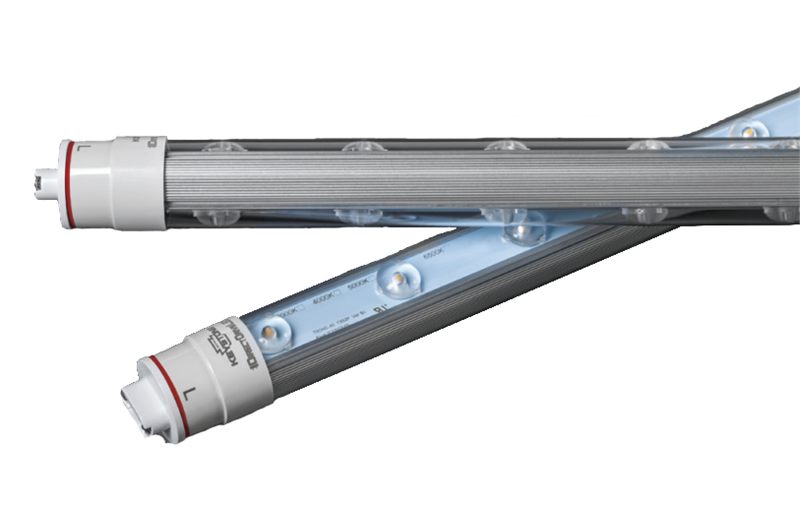

6 Foot 31 Watt R17d 360 Degree Double Ended Ballast ByPass LED Sign Tube Gen 2

Keystone Technologies SKU: KT-LED31T8-72P2S-840-D /G2
Keystone Technologies 6 Foot 31 Watt R17d 360 Degree Double Ended Ballast ByPass LED Sign Tube Gen 2 4000K Cool White

6 Foot 31 Watt R17d 360 Degree Double Ended Ballast ByPass LED Sign Tube Gen 2

Keystone Technologies SKU: KT-LED31T8-72P2S-840-D /G2
Regular price $77.92
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

The Keystone KT-LED31T8-72P2S-8(XX)-D /G2 72" (6 Foot) LED Sign Tube consumes just 31 watts of 120-277 volt energy to produce 3840-4000 lumens of your choice of either 4000K Cool White or 6500K Daylight illumination. Keystone's DirectDrive technology eliminates the need for an external driver or ballast, while still using the existing sockets. The Keystone LED Sign Tubes feature a rotatable R17d base for correct lamp orientation in vertical or horizontal installations, regardless of how the socket was originally installed. These LED retrofit tubes DO NOT require an external LED driver. The existing ballast must be bypassed. This product has a CRI of 80 and an operating temperature of -22°F to 131°F. This LED tube measures 69.91" long by 1.1" in diameter, to fit your sign applications, and is evaluated to UL 48 / UL 879A Standards and listed in the UL SAM Manual.

Manufacturer Keystone
Color Temperature (Kelvin) 4000K Cool White 6500K Daylight
MPN KT-LED31T8-72P2S-840-D /G2 KT-LED31T8-72P2S-865-D /G2
SKU KT-LED31T8-72P2S-840-D /G2 KT-LED31T8-72P2S-865-D /G2
UPC 843654132297 843654132303
Lumens 3840 Lumens 4000 Lumens
Efficiency (Lumens Per Watt) 124 LPW 129 LPW
Wattage 31 Watts
Lighting Technology LED
Voltage 120-277V
Ballast Operation Type B Bypass
Wiring Method Single/Double Ended
Bulb Shape T8
Base R17D Double Contact
Beam Angle 360 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Operating Temperature -30°C to 55°C
Dimensions 69.9" L
Environment Damp Location
Warranty 5 Year Limited
