2x2 24/30/35 Watt LED Smart Loop Selectable Center Basket Fixture 35/40/50K

Keystone Technologies SKU: KT-CBLED35PS-22B-8CSA-VDIM /FC2
Keystone Technologies 2x2 24/30/35 Watt LED Smart Loop Selectable Center Basket Fixture 35/40/50K Selectable

2x2 24/30/35 Watt LED Smart Loop Selectable Center Basket Fixture 35/40/50K

Keystone Technologies SKU: KT-CBLED35PS-22B-8CSA-VDIM /FC2
  • DLC Listed
Regular price $181.46
/
Color Temp
Please call to confirm availability.
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

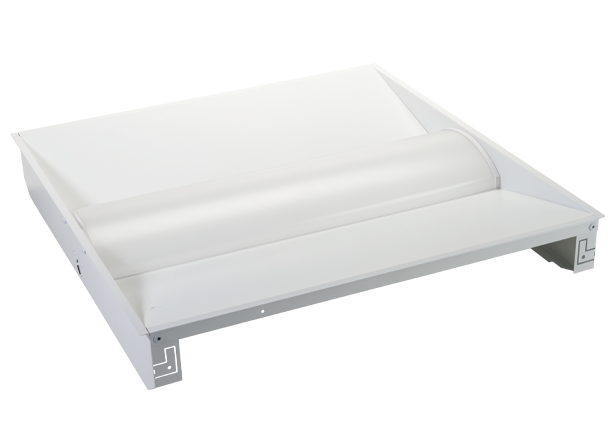

Keystone’s XFit center basket troffer fixtures are the ideal choice for any general illumination application. Providing smooth, even, light with dimming capabilities, our LED troffers are commonly used in offices, schools, and other commercial recessed grid indoor applications. They’re available with Keystone’s Power Select and Color Select technologies, which allow users to choose from among a variety of power outputs and color temperatures by flicking a switch. With higher efficiency and a longer life over fluorescent fixtures, our LED troffers offer substantial energy and maintenance savings. Our center basket troffers feature a large access panel on the back of the fixture to allow for easy installation and servicing.

The SmartLoop wireless lighting control system by Keystone is a Bluetooth mesh lighting control system that allows you to set up and manage your lighting ecosystem quickly and easily. It’s powerful enough to run a space with multiple lighting zones, but simple enough to program in minutes with your smartphone – perfect for warehouses, offices, schools, and auditoriums, whether new construction or retrofit.

This item is the DLC Listed, Keystone Technologies KT-CBLED35PS-22B-8CSA-VDIM /FC2. This Keystone Technologies LED Warp fixture consumes a selectable amount of 24/30/35 watts of 120-277 volt energy. They generate between 3,216-4,550 lumens (128-136 lumens per watt), have a rated lumen maintenance of 50,000 hours based on L70 lumen depreciation, a selectable color temperature of 3500K bright white, 4000K cool white or 5000K daylight and a CRI of 80. These LED center basket fixture have a 0-10V dimmable configuration. All Keystone LED wrap fixtures carry a 5 Year Limited Warranty.

Manufacturer Keystone Technologies
MPN KT-CBLED35PS-22B-8CSA-VDIM /FC2
SKU KT-CBLED35PS-22B-8CSA-VDIM /FC2
UPC 843654154244
Lighting Technology LED
Voltage 120-277V
Dimmable Yes, 0-10V Dimming
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor >0.90
THD (Total Harmonic Distortion) <20%
Operating Temperature -20°C to 50°C
Dimensions 23.77" x 23.77" x 2.875"
DLC Product ID P86VQKZE
Warranty 5 Year Warranty



Wattage 24 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 3,216 Lumens 3,240 Lumens 3,264 Lumens
Efficiency (Lumens Per Watt) 134 LPW 135 LPW 136 LPW



Wattage 30 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 3,930 Lumens 3,960 Lumens 3,990Lumens
Efficiency (Lumens Per Watt) 131 LPW 132 LPW 133 LPW



Wattage 35 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 4,480 Lumens 4,515 Lumens 4,550 Lumens
Efficiency (Lumens Per Watt) 128 LPW 129 LPW 130 LPW
