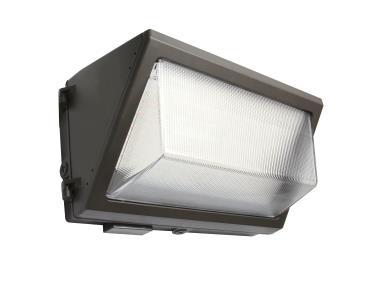

28/40/55W LED Control Ready Wattage and CCT Select WallMax Open Face Wall Pack 3/4/5K

MaxLite SKU: 105518
MaxLite 28/40/55W LED Control Ready Wattage and CCT Select WallMax Open Face Wall Pack 3/4/5K Selectable

28/40/55W LED Control Ready Wattage and CCT Select WallMax Open Face Wall Pack 3/4/5K

MaxLite SKU: 105518
  • DLC Premium Listed, IP65
Regular price $166.67
/
Color Temp
Please call to confirm availability.
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Secure payments

The new generation of WallMax Open Face LED Wall Packs provides flexibility for distributors and contractors with field-selectable CCTs, wattages (55W and 120W models) and field-installable controls. The housing has been enlarged to cover HID fixture footprints and accommodate battery backup in all sizes. The Wall Packs feature a controls-ready receptacle compatible with c-Max controls. The simple plug-and-play sensor receptacle enables c-Max control nodes to be added at the time of installation, or in the future. as well as allowing for future control upgrades without changing the fixture. The receptacle is located at the bottom of the fixture and looks through a window, which minimizes the impact on the fixture aesthetics. A cover is included to hide the window when controls are not used. The controls are sold separately, see spec sheets and related products below.

These MaxLite LED open face wall packs consume a selectable amount of 28/40/55 watts of 120-277 volt energy and the driver has a power factor of 90%. The DLC Premium Listed WPOP55U-WCSBCR (105518) generates 6400 lumens - that's an efficacy of 120 lm/W with a rated lumen maintenance of 100,000 hours based on L70 lumen depreciation. This LED fixture comes with a selectable color temperature of 3000K warm white, 4000K cool white and 5000K daylight. This MaxLite LED wall pack carries a 10 Year Warranty with labor allowance and a CRI of 80.

Voltage 120-277 Volt
Wattage 28/40/55 Watts
LED Color 3000/4000/5000K
Lumens 7,256 Lumens
CRI 80
Dimmable Yes, 0-10V
Dimensions 9.35" H x 7.40" W x 14.39" L
Certifications DLC Premium, IP65, Wet Location
DLC Product PRFGPVAN
Warranty 10 Year Limited
