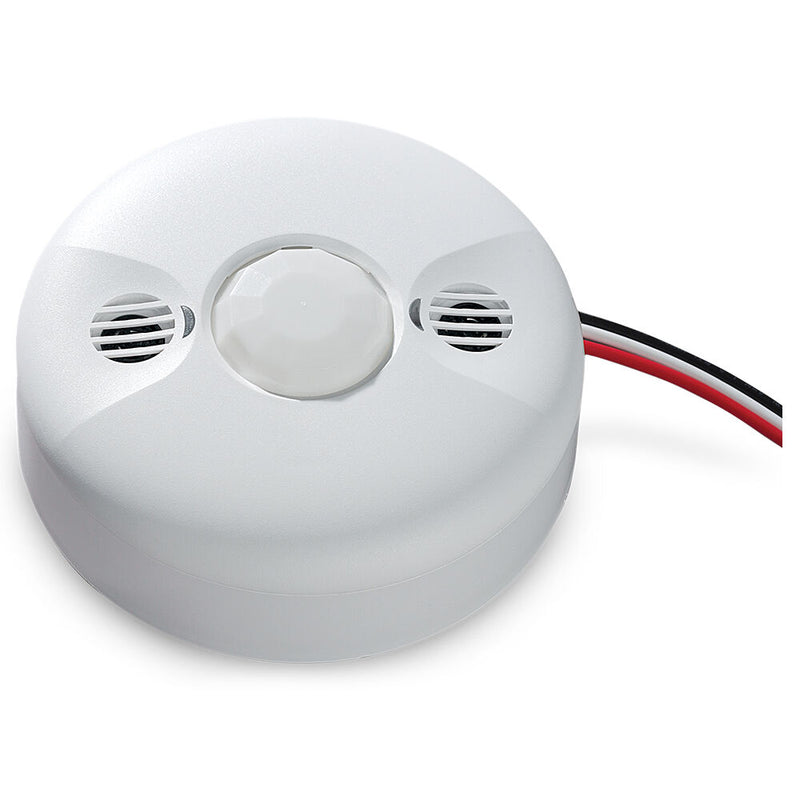

The IOS-CMP-DT-U Dual Technology Line Voltage Occupancy Sensors control loads based on occupancy and ambient light levels. It combines passive infrared (PIR) and ultrasonic technologies to help avoid false triggering while increasing presence detection. Selectable modes allow the sensor to turn load ON and hold it ON as long as either or both technologies detect occupancy. If no movement is detected for a user-specified time of 5 seconds to 30 minutes, the load is turned OFF. The occupancy sensor provides a 360° coverage pattern, up to 1600 ft2 (150m2) for PIR and 1000 ft2 (93m2) for Ultrasonic sensor.
|Lighting Technology||LED, CFL, Fluorescent, Incandescent|
|Input Voltage Range||120/277VAC|
|Sensor Technology||Dual Technology (PIR/Ultrasonic)|
|PIR Coverage Area||1600 Square Feet|
|Ultrasonic Coverage Area||1000 Square Feet|
|PIR Coverage Pattern||360 Degrees|
|Maximum Mounting Height||8-11ft|
|Occupancy Sensor Power Type||Line Voltage|
|Tungsten Range||800 Watts|
|Resistive Load Ratings Ranges||800 Watts
|Motor Load Ratings Ranges||1/4 HP|
|Neutral Connection Required
|Adjustable Time Delay Minimum||5 Seconds|
|Adjustable Time Delay Maximum||30 Minutes|
|Adjustable Light Level Minimum||10FC|
|Adjustable Light Level Maximum||Daylight|
|Operating Temperature||32°F (0°C) to 131°F (55°C)|
|Dimensions||2.12" H x 5" W x 4.88" L|
|Certifications||Title 20, cULus|
|Warranty||2 Year Limited|
