Juno Trac 12 is a miniature 20-amp low voltage track system that boldly goes where no other track lighting system can go. Small and compact, Trac 12 can be ceiling mounted, suspended in cramped quarters, or, it can be integrated into casework, coves or display cases. Wherever it goes, Juno's Trac 12 creates stunning illumination - from accent to spot to linear lighting effects. This low voltage track lighting system features a wide variety of diminutive fixtures that are perfectly matched to its miniaturized scale. LED modules, LED mini floods, LED mini cylinders and LED mini track lighting pendants offer maximum performance with minimal energy consumption.
Juno Trac 12 is an LED track lighting system that offers ultra-miniature, single-circuit track sections for operation with 12- or 24-volt step down transformers. Each trac section is supplied with an integral terminal block feed and straight connector. It is compatible with a right-angle, adjustable joiner plus conduit and J-box mounting accessories to permit NEC code-compliant installations. Juno Trac 12 track light sections accept all Trac 12 cove, accent, and pendant lampholders.

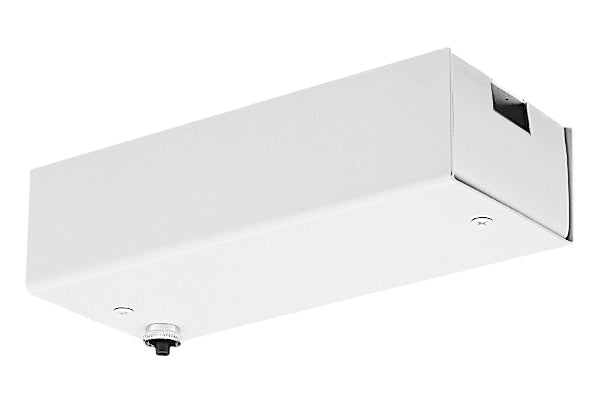

This item is the Juno Trac 12, 12V Electronic Transformer part number TL567 LED 100W 120 12AC WH. This surface, 12 volt electronic transformer is rated for 0-100 watts for either LED or incandescent loads. This driver is for in-line (Trac 12 trac only) or remote installation from up to 5 feet away (Trac 12 or Trac12/25). An easy-to-use on/off rocker switch is located on the transformer and end or top feed supply wiring using .5 inch electrical connectors. This low voltage electronic transformer for Trac 12 systems is ETL Listed, with an automatic resetting thermal and overload and short circuit protection.
This 12V Electronic Surface Mount Transformer is for use with short to medium run lengths and low wattage systems. It is also compatible with mot standard incandescent dimmers. For optimal results, use a dimmer designed for low voltage applications. This transformer should be installed in a well-ventilated locations where the ambient temperature will not exceed 120°F (50°C).
