10 Foot 52 Watt R17d 360 Degree Double Ended Ballast ByPass LED Sign Tube Gen 2

Keystone Technologies SKU: KT-LED52T8-120P2S-840-D /G2
Keystone Technologies 10 Foot 52 Watt R17d 360 Degree Double Ended Ballast ByPass LED Sign Tube Gen 2 4000K Cool White

10 Foot 52 Watt R17d 360 Degree Double Ended Ballast ByPass LED Sign Tube Gen 2

Keystone Technologies SKU: KT-LED52T8-120P2S-840-D /G2
Regular price $145.15
Color Temp
Please call to confirm availability.
Please Call To Order
  • Free Economy Shipping on Orders Over $750
  • Secure Payments

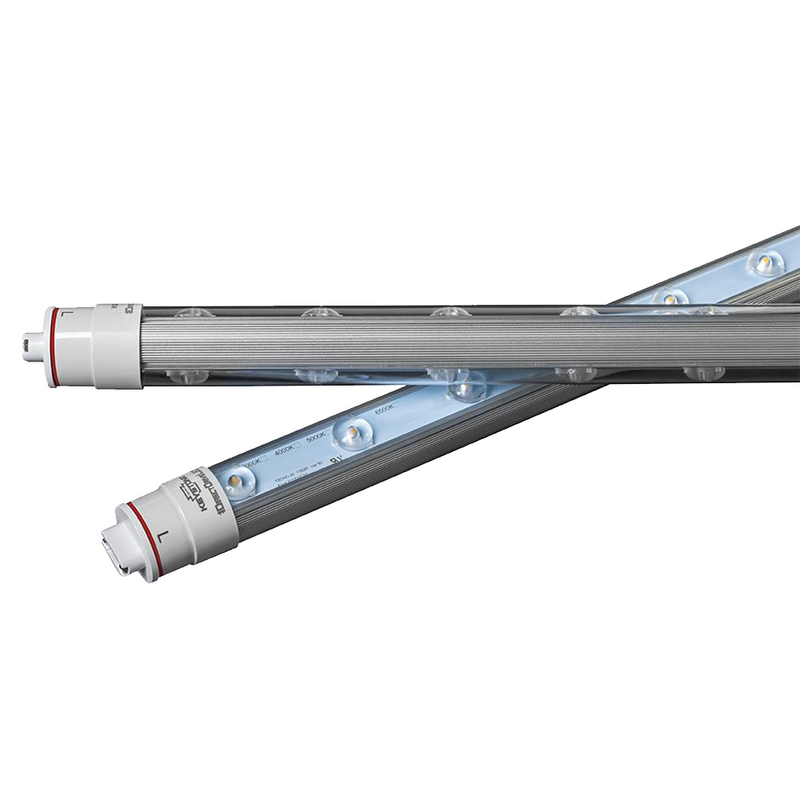

Introducing Keystone's 360° LED Sign Tubes! The Sign Hero series from Keystone is the perfect solution for retrofits or new sign installations. There is no need for an external driver or ballast, making it the fastest way to upgrade a sign to LED. Maintenance professionals can install these LED sign tubes in five minutes or less! These tubes are available in an array of lengths and can work with double sided or single sided signs, therefore they can fit any application. The Keystone Sign Hero LED Sign Tubes are and LED outdoor replacement retrofit solution for conventional T12HO and T8HO fluorescent lamps for sign applications and come in the color temperature of either 4000K or 6500K.

Talk about an easy retrofit option for your existing fluorescent T12HO or T8HO sign bulbs. Keystone's DirectDrive technology eliminates the need for an external driver or ballast, while still using the existing sockets. The Keystone LED Sign Tubes feature a rotatable R17d base for correct lamp orientation in vertical or horizontal installations, regardless of how the socket was originally installed. This tube is two-sided so it can light up single sided or double sided signs. The optical lenses that cover each individual LED chip in the tube eliminates hot spots and ensures a consistent light distribution across both face of the sign. You will no longer get those awkward vertical shadows. You can count Keystone to provide a 50,000 hour lifetime and a 5 year warranty. The heavy duty aluminum heatsink does ensure that the LEDs will run cooler for a longer period of time, while the plastic and aluminum construction ensures less breakage.

This item is Keystone's 120" (10 Foot) LED sign tube. These LED retrofit tubes DO NOT require an external LED driver. The existing ballast must be bypassed. The tubes deliver 6,150-6,400 lumens of 4000K or 6500K light and run on the universal voltage of 120-277V. The 6,150-6,400 lumens provided by these sign tubes works out to be 3,075-3,200 lumens per side and 308-320 lumens per feet. This tube consumes just 52 watts, for a total of 118-123 lumens per watt. This product has a CRI of 80 and an operating temperature of -22°F to 131°F.This LED tube measures 117.91" long by 1.1" in diameter, to fit your sign applications, and is evaluated to UL 48 / UL 879A Standards and listed in the UL SAM Manual.

Voltage 120-277 Volt
Wattage 52 Watts
Lumens 6,150-6,400 Lumens
Dimensions 1.1" Diameter x 117.91" L
Dimmable No
Rated Life 50,000 Hours
Certifications UL SAM, UL 48 / UL 879A
Warranty 5 Year Limited
