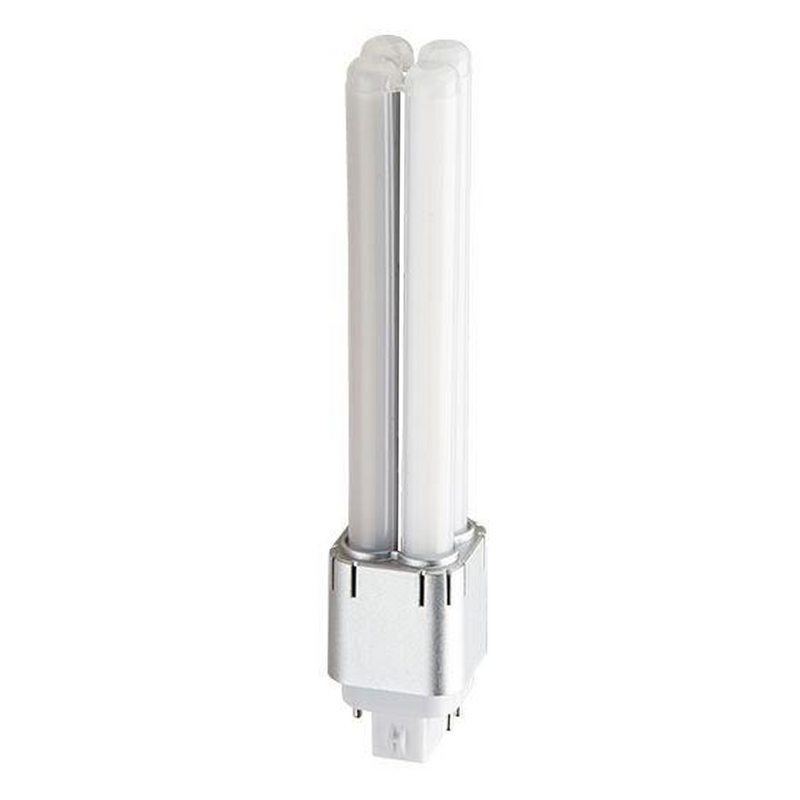

10 Watt Hybrid LED G24q GX24q 4 Pin LED PL Light Bulb Gen 3
Light Efficient Design
SKU: LED-7320-27K-G3
- Details
- Specifications
- Documents
- Request A Quote
Details
Light Efficient Design guarantees top-notch products with certifications such as LM79, Lighting Facts, UL, and Energy Star. Their product selection offers one of the widest assortments of LED lights available. Features you can't see may be similar to competitors, but Light Efficient Design provides the performance and longevity you expect from LED products.
Light Efficient Design's LED-7320-(XX)K-G3 bulbs offer universal operation, compatible with up to 42 watt electronic fluorescent ballasts in G24q/GX24q fixtures or you can bypass your ballast, wire directly to your socket, and operate off of your incoming 120-277v power. Using 10 watts, they provide 2700K-5000K color temperatures, 1,350-1,635 lumens output, 80 CRI, and a 50,000 hour life. With a 360 degree beam angle, LED PL retrofits integrate seamlessly with your recessed lighting. They measure 1.3" in diameter by 6.8" maximum overall length and come with a 5 year limited warranty.
The LED-7320-(XX)K-G3, 10 watt LED lamp is designed to retrofit existing fluorescent recessed can lighting installations, thereby reducing maintenance and energy expenditures in residential, commercial, retail displays, hotel, motel and resort applications and as an energy saving light source for new fixtures and installations. Please NOTE: When retrofitting this LED to a fluorescent fixture by using the bi-pass option, the ballast must be by-passed or removed from the fixture. Additionally, by-passing the ballast will insure no RFI interference.
Specifications
| Manufacturer | Light Efficient Design | |||
| Color Temperature (Kelvin) | 2700K Warm White | 3500K Bright White | 4000K Cool White | 5000K Daylight |
| MPN | LED-7320-27K-G3 | LED-7320-35K-G3 | LED-7320-40K-G3 | LED-7320-50K-G3 |
| SKU | LED-7320-27K-G3 | LED-7320-35K-G3 | LED-7320-40K-G3 | LED-7320-50K-G3 |
| UPC | 844006024703 | 844006024727 | 844006024734 | 844006024741 |
| Lumens | 1350 Lumens | 1550 Lumens | 1600 Lumens | 1635 Lumens |
| Efficiency (Lumens Per Watt) | 135 LPW | 155 LPW | 160 LPW | 163 LPW |
| Lighting Technology | LED | |||
| Wattage | 10 Watt | |||
| Voltage | 120 - 277V | |||
| Bulb Shape | PL | |||
| Base | 4-Pin G/GX24q | |||
| Beam Angle | 360 Degree | |||
| Ballast Operation | Type A/B Hybrid | |||
| Burn Position | Universal | |||
| Rated Life | 50,000 Hours | |||
| CRI (Color Rendering Index) | 80+ | |||
| Fluorescent Equivalent | 42 Watt | |||
| Operating Temperature | -40° F - 104° F | |||
| Dimensions | 1.3" Diameter x 6.9" MOL | |||
| Certifications | cULus | |||
| Environment | Damp Location, Semi Enclosed Recessed Fixtures | |||
| Warranty | 5 Year Warranty | |||
