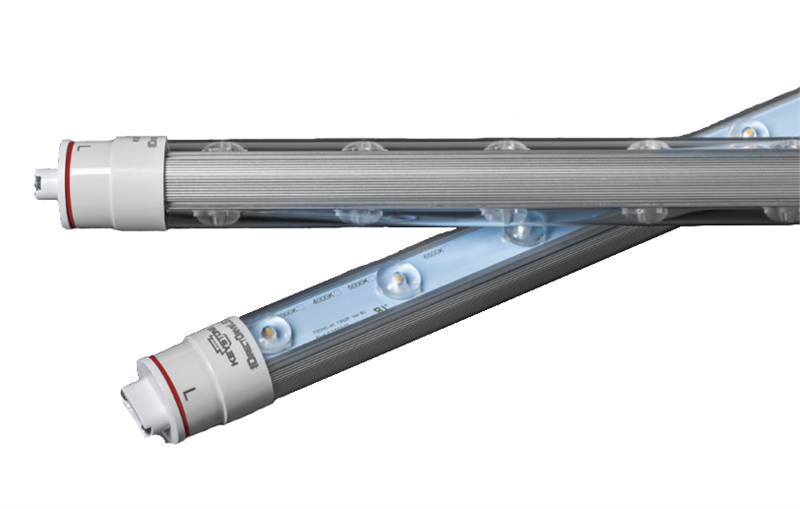

18 Inch 7 Watt R17d 360 Degree Double Ended Ballast ByPass LED Sign Tube

Keystone Technologies SKU: KT-LED7T8-18P2S-840-D
Keystone Technologies 18 Inch 7 Watt R17d 360 Degree Double Ended Ballast ByPass LED Sign Tube 4000K Cool White

18 Inch 7 Watt R17d 360 Degree Double Ended Ballast ByPass LED Sign Tube

Keystone Technologies SKU: KT-LED7T8-18P2S-840-D
Regular price $35.50
/
Color Temp
Please call to confirm availability.
**BALLAST MUST BE BYPASSED IN ORDER TO USE**
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

The Keystone 18" KT-LED7T8-18P2S-8(XX)-D LED Sign Hero series sign tube consumes just 7 watts of 120-277V energy and produces 865-900 lumens of your choice of either 4000K or 6500K illumination. The Keystone Sign Hero LED Sign Tubes are LED outdoor replacement retrofit solution for conventional T12HO and T8HO fluorescent lamps for sign applications. These LED retrofit tubes DO NOT require an external LED driver. The existing ballast must be bypassed. The LED tube measures 15.91" long by 1.1" in diameter to fit your sign applications, and is evaluated to UL 48 / UL 879A Standards and listed in the UL SAM Manual.

Manufacturer Keystone
Color Temperature (Kelvin) 4000K Cool White 6500K Daylight
MPN KT-LED7T8-18P2S-840-D KT-LED7T8-18P2S-865-D /G2
SKU KT-LED7T8-18P2S-840-D KT-LED7T8-18P2S-865-D /G2
UPC 890949017470 843654132143
Lumens 865 Lumens 900 Lumens
Efficiency (Lumens Per Watt) 124 LPW 128 LPW
Wattage 7 Watts
Lighting Technology LED
Voltage 120-277V
Ballast Operation Type B Bypass
Wiring Method Double Ended
Bulb Shape T8
Base R17D Double Contact
Beam Angle 360 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Operating Temperature -30°C to 55°C
Dimensions 18" L x 1.1" Diameter
Warranty 5 Year Limited
