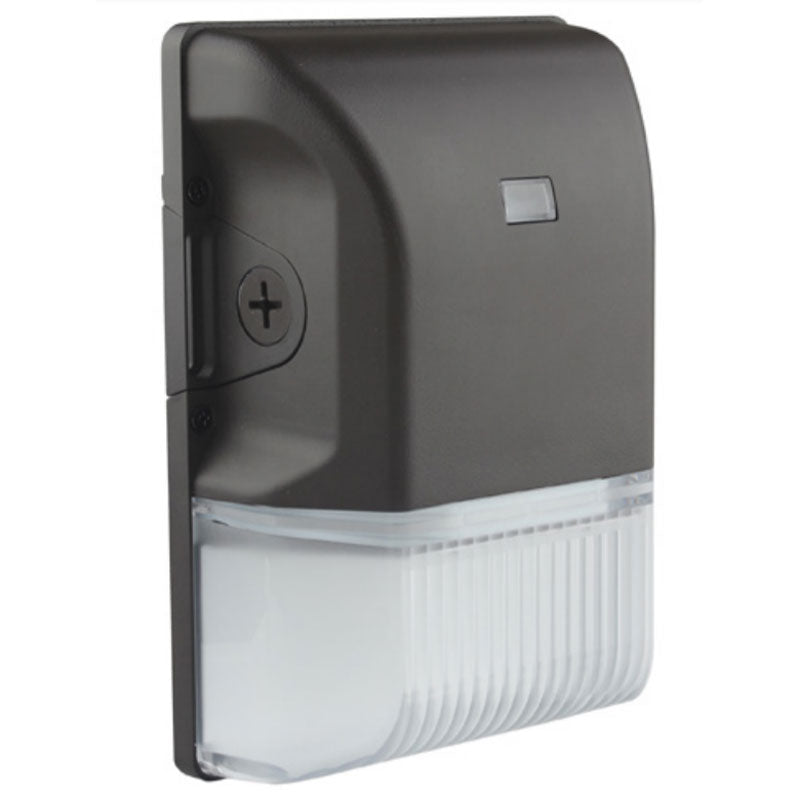

20 Watt GuardMax Slim Profile Color Selectable Small LED Wall Pack with Photocell

MaxLite SKU: 103855
MaxLite 20 Watt GuardMax Slim Profile Color Selectable Small LED Wall Pack with Photocell

20 Watt GuardMax Slim Profile Color Selectable Small LED Wall Pack with Photocell

MaxLite SKU: 103855
  • DLC Premium Listed, IP66
/
Color Temp
Finish Color
Please call to confirm availability.
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Secure payments

MaxLite's DLC Premium listed GuardMax Small Slim Profile Wall Packs deliver high quality illumination in a compact form factor ideal for commercial and multi-residential lighting applications. The MaxLite SECS20UCSBPC (103855) Wall Packs have a die-cast aluminum housing with polycarbonate cover and frosted polycarbonate lens. It consumes just 20 watts of 120-277V energy and delivers 2,520 lumens. The Slim Wall Pack features impact resistant lens and covers, there is also a photocell that can be enabled or disabled to the users preference. It is also color selectable, offering two color temperatures: 4000K cool white and 5000K daylight. Rated for 50,000 hour life (L70), the MaxLite SECS20UCSBPC carries a 5 year Standard Warranty. It mounts directly to the Jbox or wall with 1/2" threaded conduit hole available for surface conduit.

Manufacturer MaxLite
MPN SECS20UCSBPC
SKU 103855
UPC 767627923333
Color Temperature (Kelvin) 4000/5000K
Lumens 2,520 Lumens
Wattage 20 Watts
Efficiency (Lumens Per Watt) 126 LPW
Lighting Technology LED
Voltage 120-277V
Beam Angle 100 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor >0.9
Finish Color Bronze
Metal Halide Equivalent 150 Watts
Operating Temperature -20°C to 45°C
Dimensions 8.58" H x 5.79" W x 3.07" L
Certifications IP66, DLC Listed
DLC Product ID PLZVYZUM942O
Environment Wet Location
Warranty 5 Year Standard



Specification Sheet

Installation Instructions
