Available in either an E26 medium or EX39 mogul screw base, Eiko's Horizontal LED HID Replacement Lamps are a convenient and energy-efficient solution for replacing traditional compact fluorescent, high-pressure sodium and metal halide sources in enclosed lighting fixtures. The 27 watt model are designed with a smaller size and shape for easy installation in bollards and globes, while the larger 45, and 63 watt versions are ideal for acorn fixtures and outdoor security lighting where a higher lumen output is required.

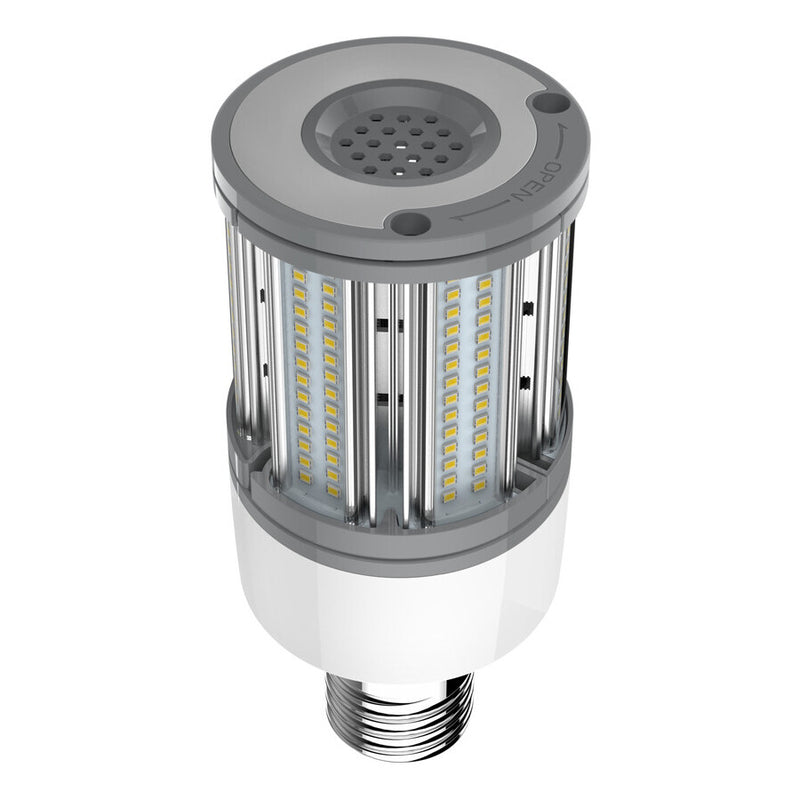

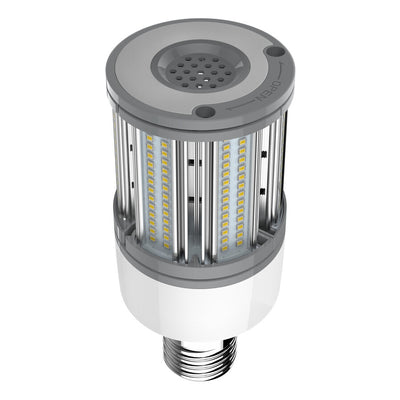

This item is the Eiko Horizontal LED LED27WPT/180/(XX)KMED-G8. These corn cob light bulbs are now smaller than ever but producing equivalent or greater light output! Suitable for totally enclosed post tops and other typical HID fixtures, these LED retrofit bulbs (also called out as an LED corn light or corn bulb) offer an omni-directional 360 degree beam angle, and a 180 degree beam angle when the lamp body is folded out. They consume up to 80% less energy than conventional HID systems at just 27 watts of 120 to 277 volt energy and generate 4,050 initial lumens of light output. An excellent energy saving bulb to replace up to 70 watt Metal Halide (MH) or High Pressure Sodium (HPS) lamp. The LED27WPT/180/(XX)KMED-G8 is a non-dimmable LED light bulb in either 4000K cool white or 5000K daylight. This LED Site, Roadway or Post Top lighting retrofit option carries a rated life of up to 50,000 hours and has an operating temperature range of -40 degree Celsius to 60 degrees Celsius.

These LED bulbs may be short in stature, but, they pack a powerful light output that provides instant full brightness. Designed with Solid State Technology which requires no fans or moving parts, these LED retrofit bulbs give outstanding reliability without any noise. They have an E26 medium base that easily integrates energy saving LED technology into even your tightest site lighting, roadway or post top lighting format and are operated horizontal position. The physical dimensions of the EiKO LED retrofit are just 8.03 MOL by 3.23 in diameter, and 5.28" diameter when lamp body is folded out. These LED retrofit bulbs carry a 5 Year Warranty.

The EiKO HID replacement, 27 watt LED lamp, which is UL Listed for Damp locations, and has been designed to retrofit existing HID installations, thereby reducing maintenance and energy expenditures in residential, commercial, retail displays, hotel, motel and resort applications and as an energy saving light source for new fixtures and installations. Please NOTE: When retrofitting LED to an HID fixture, the ballast must be by-passed or removed from the fixture. Additionally, by-passing the ballast will insure no RFI interference.
