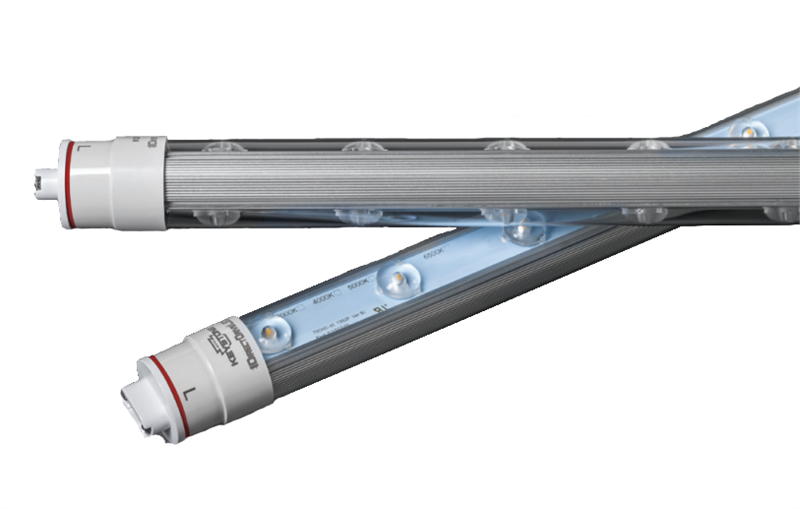

42 Inch 18 Watt R17d 360 Degree Double Ended Ballast ByPass LED Sign Tube Gen 2

Keystone Technologies SKU: KT-LED18T8-42P2S-840-D /G2
Keystone Technologies 42 Inch 18 Watt R17d 360 Degree Double Ended Ballast ByPass LED Sign Tube Gen 2 4000K Cool White

42 Inch 18 Watt R17d 360 Degree Double Ended Ballast ByPass LED Sign Tube Gen 2

Keystone Technologies SKU: KT-LED18T8-42P2S-840-D /G2
Regular price $43.23
/
Color Temp
**BALLAST MUST BE BYPASSED IN ORDER TO USE**
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

Introducing Keystone's 360° LED Sign Tubes! The Sign Hero series from Keystone is the perfect solution for retrofits or new sign installations. There is no need for an external driver or ballast, making it the fastest way to upgrade a sign to LED, while still using the existing sockets. Maintenance professionals can install these LED sign tubes in five minutes or less! The Keystone Sign Hero LED Sign Tubes are an LED outdoor replacement retrofit solution for conventional T12HO and T8HO fluorescent lamps for sign applications and come in the color temperature of either 4000K or 6500K. These LED tubes can cut your energy savings nearly in half!

Talk about an easy retrofit option for your existing fluorescent T12HO or T8HO sign bulbs. The Keystone LED Sign Tubes feature a rotatable R17d base for correct lamp orientation in vertical or horizontal installations, regardless of how the socket was originally installed. This tube is two-sided so it can light up single sided or double sided signs. The optical lenses that cover each individual LED chip in the tube eliminates hot spots and ensures a consistent light distribution across both face of the sign. You will no longer get those awkward vertical shadows. You can count on Keystone to provide a 50,000 hour lifetime and a 5 year warranty. The heavy duty aluminum heatsink does ensure that the LEDs will run cooler for a longer period of time, while the plastic and aluminum construction ensures less breakage.

This item is Keystone's 42" (3.5 Foot) LED sign tube - part number KT-LED18T8-42P2S-8(XX)-D /G2. These LED retrofit tubes DO NOT require an external LED driver. The existing ballast must be bypassed. The KT-LED18T8-42P2S-8(XX)-D /G2 delivers 2160-2250 lumens and runs on the universal voltage of 120-277V. The minimum 2160 lumens provided by these sign tubes works out to be at least 1080 lumens per side and 308 lumens per feet. This tube consumes just 18 watts, for a total of 120 lumens per watt. Now that is efficiency! This product has a CRI of 80 and an operating temperature of -22°F to 131°F. This LED tube measures 39.91" long by 1.1" in diameter, to fit your sign applications, and is evaluated to UL 48 / UL 879A Standards and listed in the UL SAM Manual.

Voltage 120-277 Volt
Wattage 18 Watt
Lumens 2,160-2,250 Lumens
CRI 80 CRI
Base Type R17d Rotatable Base
Dimensions 1.10" Diameter x 39.91" L
Beam Angle 360 Degrees
Rated Life 50,000 Hours
Warranty 5 Year Limited
