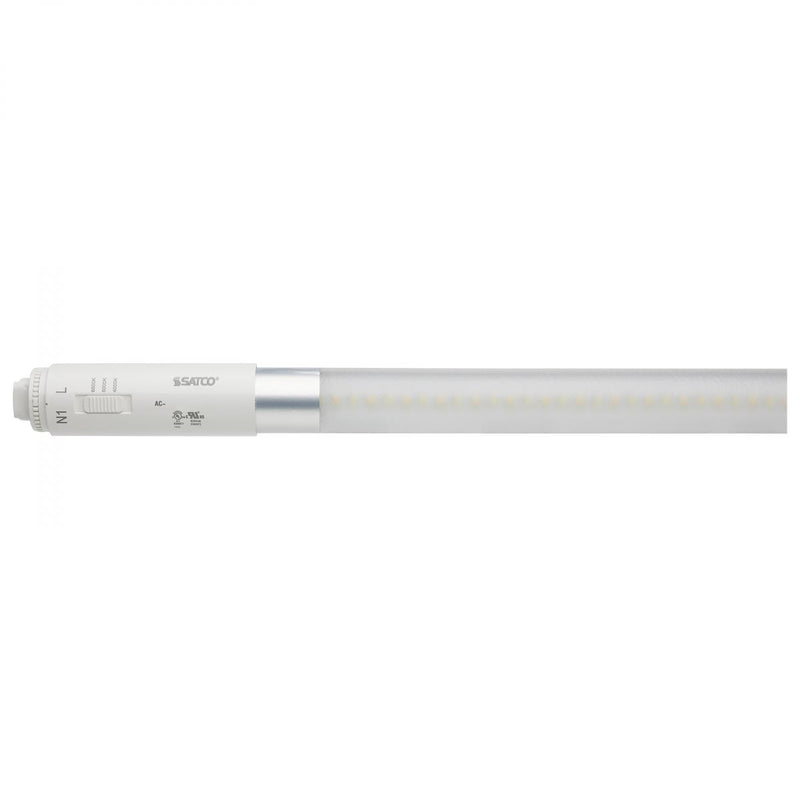

5 Foot 24 Watt R17d LED Single or Double Ended Ballast Bypass Sign Tube 40/50/65K

Satco SKU: S16436
Satco 5 Foot 24 Watt R17d LED Single or Double Ended Ballast Bypass Sign Tube 40/50/65K Selectable

5 Foot 24 Watt R17d LED Single or Double Ended Ballast Bypass Sign Tube 40/50/65K

Satco SKU: S16436
  • Enclosed Fixture Rated, NSF Listed
Regular price $35.96
Color Temp
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

Introducing Satco's Color Selectable LED Sign Tubes! The high output tubes from Satco is the perfect solution for retrofits or new sign installations. There is no need for an external driver or ballast, making it the fastest way to upgrade a sign to LED. Maintenance professionals can install these LED sign tubes in five minutes or less! These tubes are available in an array of lengths and can work with double sided or single sided signs, therefore they can fit any application. The Satco high output LED Sign Tubes are an LED outdoor replacement retrofit solution for conventional T12HO and T8HO fluorescent lamps for sign applications.

Satco's tubes are ballast bypass which eliminates the need for an external driver or ballast, while still using the existing sockets. The Satco LED Sign Tubes feature a 90 degree rotatable R17d base for correct lamp orientation in vertical or horizontal installations, regardless of how the socket was originally installed. This tube is two-sided so it can light up single sided or double sided signs. The optical lenses that cover each individual LED chip in the tube eliminates hot spots and ensures a consistent light distribution across both faces of the sign. You will no longer get those awkward vertical shadows. You can count on Satco to provide a 50,000 hour lifetime and a 5 year warranty.

This item is Satco's 60" (5 Foot) color selectable LED sign tube, part number S16436, replacing S16406 and S16407. These LED retrofit tubes DO NOT require an external LED driver. The existing ballast must be bypassed. The tubes delivers 3,350 lumens of 4000K cool white, 3,450 lumens of 5000K daylight or 3,300 lumens of 6500K daylight color temps and run on the universal voltage of 120-277V. This tube consumes just 24 watts, for a range of 137-143 lumens per watt. Now that is efficiency! This product has a CRI of 83 and measures 57.81" MOL by 1" MOD, to fit your sign applications.

Manufacturer Satco
MPN S16436
SKU S16436
UPC 045923164361
Lighting Technology LED
Wattage 24 Watts
Voltage 120-277V
Color Temperature (Kelvin) 4000K Cool White 5000K Daylight 6500K Daylight
Lumens 3,350 Lumens 3,450 Lumens 3,300 Lumens
Efficiency (Lumens Per Watt) 140 LPW 143 LPW 137 LPW
Ballast Operation Type B Ballast Bypass
Wiring Method Single/Double Ended
Bulb Shape T8
Base R17D Double Contact
Beam Angle 360 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 83 CRI
Power Factor 0.9
Lens Polycarbonate
Fluorescent Equivalent 75 Watts
Operating Temperature -20°C to 45°C
Dimensions 57.81" MOL x 1" MOD
Nominal Length 60" L
Certifications Enclosed Fixture Rated, FCC Compliant, NSF Approved
Environment Damp Location
Warranty 5 Year Limited
