5 Inch GEN4 New Construction Dim LED Downlight Can 120V 600 Lumen 3000K

Juno SKU: IC20LED G4 06LM 30K 90CRI 120 FRPC
Juno 5 Inch GEN4 New Construction Dim LED Downlight Can 120V 600 Lumen 3000K 3000K Warm White

5 Inch GEN4 New Construction Dim LED Downlight Can 120V 600 Lumen 3000K

Juno SKU: IC20LED G4 06LM 30K 90CRI 120 FRPC
  • Energy Star
Regular price $110.77
/
Color Temp
Made To Order Item
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Secure payments

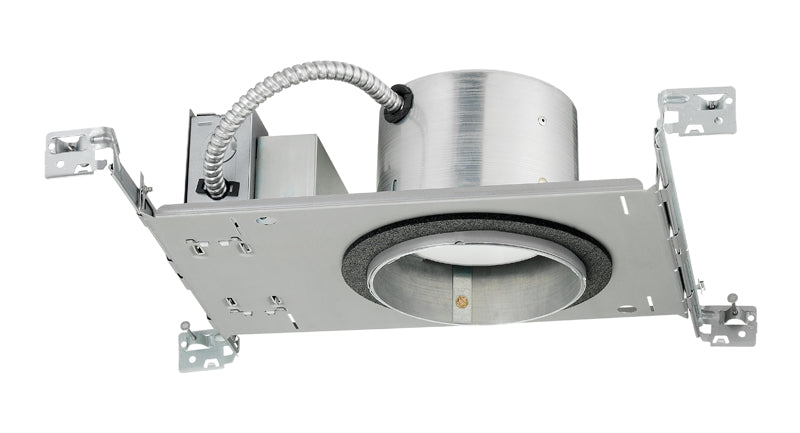

This model is the Juno IC20LED G4 06LM 30K 90CRI 120 FRPC. It is a 5" IC-Rated New Construction 3000K LED recessed light with a dedicated 120 volt 50/60 Hz driver. A fantastic alternative to incandescent 65 BR30 lighting, Juno Lighting's IC-Rated 600 lumen LED recessed downlights are the ultra-efficient LED light fixtures that will offer you extra style and flair. Available in 3000K the 5 inch Juno Generation 4 downlight will offer the "designer-look" that perfectly complements many of today's upscale residential interiors. These ultra-efficient recessed LED lights require only 8.6 watts of 120V input power which delivers over 66 lumens per watt. Offered in new construction and remodel recessed can styles, they are approved for use in both insulated and non-insulated ceilings. They include push-in electrical connectors and all of the easy-installation features that Juno is famous for.

With a color temperature of 3000K (warm white) the Generation 4 LED array produces 600 lumens from just 8.6 watts. The LEDs are binned to exceed ENERGY STAR requirements, providing superior fixture-to-fixture color uniformity. This recessed downlight produces a 3000K LED CCT with 90 CRI (minimum) at full lumen output and is rated for 50,000 hour life at which time the LEDs can be expected to produce 70% of their initial light output with no perceptible color change. The deep regression of the lens produces a low flare, efficient system that can produce over 600 lumens with select trims.

The dedicated 120V LED driver meets ENERGY STAR dimming requirements and is compatible with dimming methods such as incandescent, magnetic low voltage and electronic low voltage wall box dimmers. The Juno IC20LEDG4-3K-1 is NOT compatible with other dimming methods such as 0-10V (you must install the Juno universal 120-277V volt recessed cans for these dimming options), DALI or DMX.

These low-profile LED ceiling light fixtures easily fit within 2x6 ceiling joists, facilitating installation in shallow applications. They can be completely covered with insulation and the fully sealed housing seals infiltration and exfiltration of air, reducing heating and air cooling costs without the use of additional gaskets. The Juno 5" new construction housings are supplied with the Juno Real Nail 3® bar hanger system which permits quick housing placement anywhere within 24" on center joists or suspended ceilings. This hanger system also features captive bugle head nails that are easily removable for quick housing repositioning without changing the bar hanger or nail. For suspended ceilings, the integral T-bar notch can be used to secure the housing onto the ceiling grid - no accessory clips required. Once installed, your Juno LED recessed can light is compatible with a broad range of existing Juno 5" trims to match virtually any designed application.

The Juno IC20LED G4 06LM 30K 90CRI 120 FRPC is ENERGY STAR® Qualified to luminaires V1.1 requirements when used with select trims. Certified to the high efficiency requirements of California T24-2008 with select trims. UL listed for U.S. and Canada through-branch wiring Damp locations rated UL and cUL.

Voltage 120 Volt
Wattage 8.6 Watts
Lumens 600 Lumens
LED Color 3000K Warm White
Dimmable
Yes
CRI 90 CRI
Incandescent Equivalent 65 Watt
Rated Life 50,000 Hours
Dimensions 15 3/4" W x 4 7/8" H
Certifications UL, ENERGY STAR
Warranty 5 Year Limited



Specifications Sheet

Installation Instructions

Dimmer Compatibility
