Juno Generation 4 LED Recessed Downlights with the exclusive WarmDim feature brings atmosphere and romance to LED home lighting. Juno WarmDim downlights incorporate a proprietary, micro-processor controlled light engine that warms the LED color temperature while dimming to capture all the warmth and ambiance previously achieved only with incandescent dimming. From residential dining rooms to hospitality guest rooms, now you can match the mood to every occasion while still experiencing the operating efficiencies of LED lighting. Its a Juno first a Juno exclusive for recessed downlights.

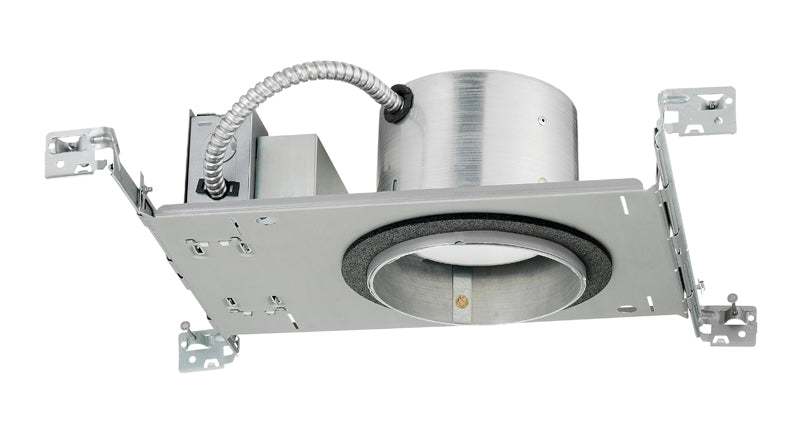

This model is the Juno IC20LED WD G4N 06LM 30K 90CRI 120 FRPC a 5" IC-Rated New Construction LED recessed light with a dedicated 120 volt 50/60 Hz driver. Like all the recessed LED lights in the Juno Generation 4 family, the WarmDim version raises the bar for LED efficiency, producing over 600 lumens of high-quality light while using just 14 watts. They are offered in new construction and remodel recessed can styles and are approved for use in both insulated and non-insulated ceilings. They include push-in electrical connectors and all the easy-installation features you have come to expect from Juno.

Proprietary WarmDim technology features micro-processor controlled dimming that replicates the warmth of incandescent dimming. Generation 4 LED array produces 600 lumens from just 14 watts. LEDs are binned to exceed ENERGY STAR® requirements, providing superior fixture-to-fixture color uniformity. Offered in 3000K LED CCT with 90 CRI minimum throughout the dimming range. The LED light engine is integrated into a one piece, high-purity aluminum, thermally conductive housing that provides uninterrupted heat transfer. This efficient thermal management system assures that at the end of their 50,000-hour service life, the LEDs can be expected to produce 70% of their initial light output with no perceptible color change. The dedicated 120V LED driver supports WarmDim dimming using readily available incandescent, magnetic low-voltage, and electronic low-voltage wall box dimmers. They are NOT compatible with other dimming methods such as 0-10V, DALI or DMX.

These low-profile LED ceiling light fixtures easily fit within 2 x 6 ceiling joists, facilitating installation in shallow applications. New construction housings are supplied with the Juno Real Nail 3® bar hanger system. For suspended ceilings, the integral T-bar notch can be used to secure the housing onto the ceiling grid no accessory clips required. The reflector and high-transmission diffusing lens are computer optimized for each aperture size, producing an optic system that provides uniform light distribution and reduced glare. The lens conceals the LED light source, yielding an aesthetic similar to deeply regressed PAR lamps. The Juno WarmDim LED recessed housings are compatible with a broad selection of existing Juno 5" open and lensed trims. Certified to the high efficiency requirements of California T24-2008 with select trims. UL listed for U.S. and Canada through-branch wiring Damp locations rated UL and cUL.

Specifications Sheet

Installation Instructions

Dimmer Compatibility
