Light Efficient Design is dedicated to providing the type of products that you demand. Proper certifications, such as LM79, Lighting Facts, UL and ultimately Energy Star, are top priorities for Light Efficient Design. These labels instill confidence in the quality of their products. More and more of their products carry certifications, and ultimately most will be certified. Some of Light Efficient Designs products, in what we believe to be one of the broadest assortment of LED lights anywhere, might appear to be similar to many competitors products but we can assure you that the intrinsics, which you cannot see, have been designed to give you the performance and longevity that you expect from LED products, but don't always get in this vast unknown supplier industry.

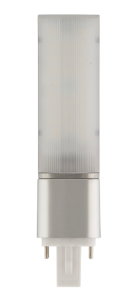

Here are Light Efficient Design's 120 degree beam angle retrofit LED. It is a direct replacement for 26 watt, 2-pin G24d-2 or G24d-3 fluorescent PL tube lights. LED-7322-(XX)K-G2 (the factory replacement for the LED-7302-(XX)A), comes in 3500K Bright White and 4000K Cool White color temperature, has a Power Factor of 90 and consumes just 7 watts of 120 to 277 volt 60 Hz energy. UL Listed, these LED tubes are a non-dimmable LED light bulb, will produce 869-887 Lumens of light output, has a CRI of 84 and an average rated life of up to 25,000 hours based on L70.
These LED fluorescent bulbs have a 120 degree beam angle which easily integrates energy saving LED technology into your standard recessed lighting format. These LED retrofits are designed to replace 26 watt G24d-2 or G24d-3 2-pin fluorescent PL lamps and are designed for use in horizontal recessed applications. The physical dimensions of the Light Efficient Design LED-7322 LED retrofit are 5.75 long by 1.374 wide. Each LED-7322-(XX)K-G2 LED fluorescent retrofit bulb is a Dual operational retrofit option. These retrofits will operate directly off of your existing 26 watt 120V to 277V magnetic ballast or simply bypass your existing ballast and operate the lamp directly off of your 120-277 line voltage. These LED retrofit bulbs carry a 5 Year Limited Warranty.
The LED-7322-(XX)K-G2, 7 watt LED lamp has been designed to retrofit existing fluorescent recessed can lighting installations, thereby reducing maintenance and energy expenditures in residential, commercial, retail displays, hotel, motel and resort applications and as an energy saving light source for new fixtures and installations. Please NOTE: When retrofitting LED to a fluorescent fixture, the ballast must be by-passed or removed from the fixture. Additionally, by-passing the ballast will insure no RFI interference.
|Input Voltage||120-277 Volt|
|Lumens Range||869-887 Lumens|
|Beam Angle||120 Degrees|
|Base Type||2-Pin G24d Base|
|Rated Life||25,000 Hours|
|Dimensions||1.374" W x 5.75" L|
|Warranty||5 Year Limited|
