8 Foot 36 Watt R17d 360 Degree Single Ended Ballast ByPass LED Sign Tube

Satco SKU: S16411
Satco 8 Foot 36 Watt R17d 360 Degree Single Ended Ballast ByPass LED Sign Tube 4000K Cool White

8 Foot 36 Watt R17d 360 Degree Single Ended Ballast ByPass LED Sign Tube

Satco SKU: S16411
  • NSF Listed
Regular price $57.23 Sale price $51.37 Save 10%
Color Temp
Limited quantity available
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

DIRECT REPLACEMENT: 8 Foot 36 Watt R17d LED Single or Double Ended Ballast Bypass Sign Tube 40/50/65K

SUGGESTED ALTERNATE8 Foot 36 Watt R17D 330 Degree Single Ended Bypass LED T8 Sign Tube

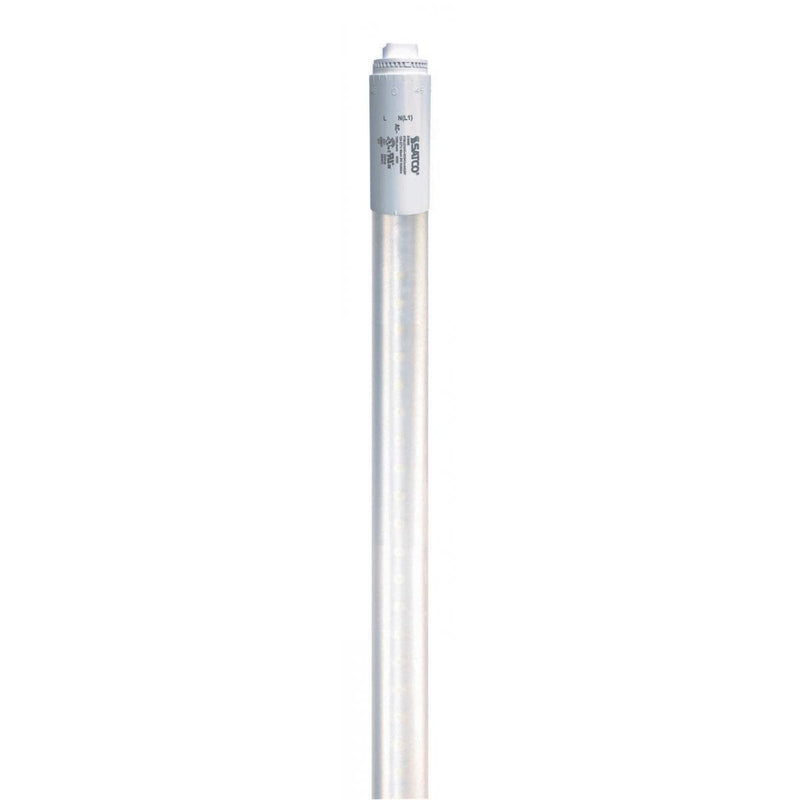

The Satco 96" (8 Foot) S16410 and S16411 LED sign tubes consume just 36 watts of 120-277V energy and produces 5000 lumens of your choice of either 4000K or 6500K illumination. The sign tubes are LED outdoor replacement retrofit solution for your existing T12HO and T8HO fluorescent lamps for sign applications. These LED retrofit tubes DO NOT require an external LED driver. The existing ballast must be bypassed. The LED tube measures 93.9" long by 1.1" in diameter, to fit your sign applications, and is evaluated to UL 48 / UL 879A Standards and listed in the UL SAM Manual.


Manufacturer Satco
Color Temperature (Kelvin) 4000K Cool White 6500K Daylight
MPN 36T8/LED/HO-SIGN/96-840/BP 36T8/LED/HO-SIGN/96-865/BP
SKU S16410 S16411
UPC 045923164101 045923164118
Lumens 5000 Lumens
Efficiency (Lumens Per Watt) 138 LPW
Lighting Technology LED
Wattage 36 Watts
Voltage 120-277V
Frequency 50/60Hz
Ballast Operation Type B Bypass
Wiring Method Single Ended
Bulb Shape T8
Base R17D Double Contact
Beam Angle 360 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 83 CRI
Power Factor 0.9
Fluorescent Equivalent 110 Watts
Incandescent Equivalent 125 Watts
Operating Temperature -30°C to 45°C
Dimensions 93.88" MOL x 1" MOD
Certifications Enclosed Fixture Rated
Environment Damp Location
Warranty 5 Year Limited
