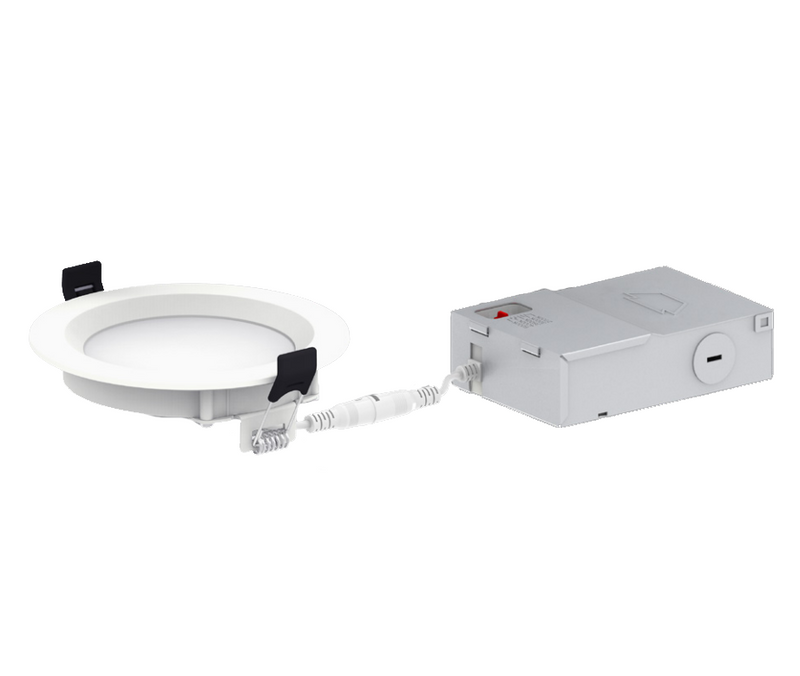

Options for LED recessed lighting fixtures, whether installing canless wafer light kits or retrofitting your current can lights, have grown rapidly. Canless wafer LED light kits can be used for remodel or new construction LED recessed ceiling downlight projects. LED retrofit downlights are installed utilizing your existing recessed can housing. With their remote driver and built-in junction box, Keystone's Circa downlights eliminate the need for a traditional multipiece fixture setup.
The Keystone Technologies 8 Inch KT-WDLED23-8B-9CSF-FDIM is a color selectable recessed wafer downlight. The Circa downlight can switch between five different color temperatures including: 2700K warm white, 3000K warm white, 3500K bright white, 4000K cool white and 5000K daylight with a CCT selection switch location on the built in junction box. This LED downlight operates at 120 volt at a 23 watts and generates between 1,800-1,960 lumens respectively. With a CRI (color rendering index) of 90, this wafer retrofit is dimmable and is suitable for wet locations.
| Manufacturer | Keystone Technologies | ||||
| MPN | KT-WDLED23-8B-9CSF-FDIM | ||||
| SKU | KT-WDLED23-8B-9CSF-FDIM | ||||
| UPC | 843654139128 | ||||
| Lighting Technology | LED | ||||
| Wattage | 23 Watts | ||||
| Voltage | 120V | ||||
| Color Temperature (Kelvin) | 2700K Warm White | 3000K Warm White | 3500K Bright White | 4000K Cool White | 5000K Daylight |
| Lumens | 1,800 Lumens | 1,850 Lumens | 1,920 Lumens | 1,960 Lumens | 1,925 Lumens |
| Efficiency (Lumens Per Watt) | 78 LPW | 80 LPW | 83 LPW | 85 LPW | 84 LPW |
| Dimmable | TRIAC Dimming | ||||
| Beam Angle | 110 Degrees | ||||
| Rated Life | 50,000 Hours (L70) | ||||
| CRI (Color Rendering Index) | 90 CRI | ||||
| Power Factor | >0.9 | ||||
| THD (Total Harmonic Distortion) | <20% | ||||
| Operating Temperature | -30°C to 40°C | ||||
| Dimensions | 6.93" Inner Diameter x 0.69" H | ||||
| Certifications | Energy Star, Title 24 Compliant, RoHS Compliant | ||||
| Environment | Wet Location | ||||
| Warranty | 5 Year Standard | ||||
