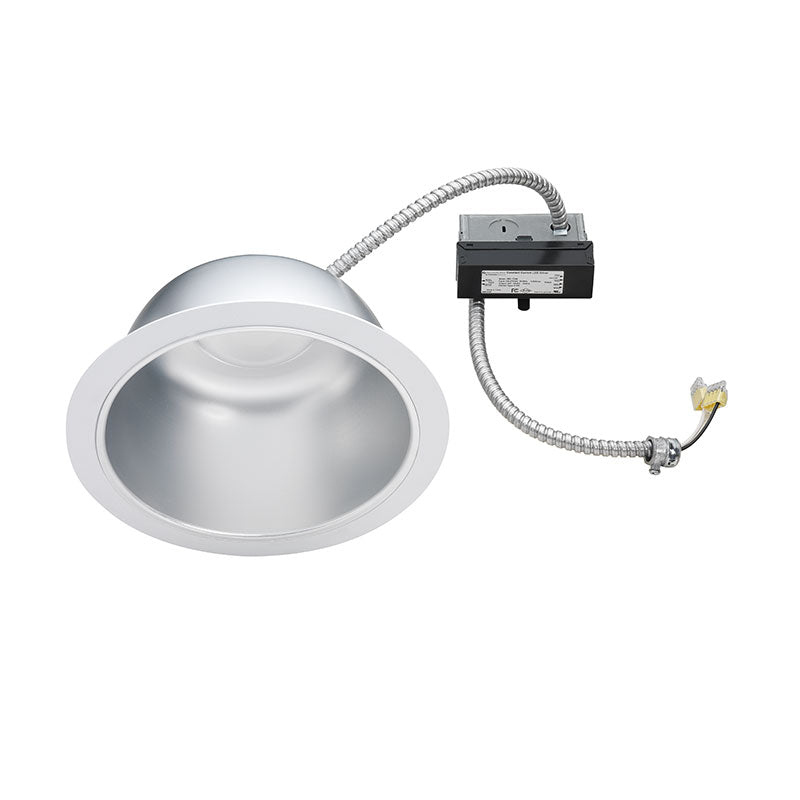

Juno Commercial LED Downlight Retrofit Trim assemblies are the ideal way to upgrade existing incandescent, CFL and HID commercial down light housings to high-performance LED. The all-in-one design features an advanced LED light engine mounted directly to the spun aluminum trim with a regressed diffusing lens in either white or haze finish. Installation is fast and simple with the unique quick disconnect feature from the junction box. The Juno JCLR Series provides an array of options to retrofit traditional incandescent, compact fluorescent and HID commercial recessed downlights. These trim assemblies are available in both small and large 6" and 8" modules for updating a range of varying fixture apertures currently in use today. They replace CFL lamps totaling 42W or greater, while producing as high as 2400 lumens at just 27.5W input. With Juno commercial LED down light retrofit trims, you can upgrade virtually any 6" and 8" non-IC commercial recessed rough-in section to the latest in energy-efficient LED technology. These ENERGY STAR Qualified 8" LED ( Light Emitting Diode ) Commercial High Hat Retrofit Down Light conversion kits are a perfect choice for use in your existing 8" recessed can applications. Juno's LED retrofit cans combine low up-front cost, minimal labor, best-in-class energy efficiency and architectural-quality light to deliver an exceptional value for all your retrofit projects.
This Juno JCLR8L 24LM 30K 80CRI MVOLT ZT HZWH, 3000K warm white, 3500K bright white and 4000K cool white LED light operates on your existing 120 through 277 volt circuit and consumes just 19.9 watts. These LED retrofit lights generate 2,400 delivered lumens (or 75 Lumens Per Watt) and has a Color Rendering Index (CRI) of 80. The Juno 8" LED down light retrofit offers out-of-the-box dimming compatibility using 0-10 volt controls and is suitable for damp locations. These LED bulbs carry a 5 year limited warranty.
Instant on at full brightness and mercury free - environmentally positive - generates no IR or UV - protects valuable objects - these 8 inch recessed downlight can retrofit LED fixtures are rated for 50,000 hours based on the L70 Standard. The white trim is constructed with a heavy gauge anodized aluminum and the reflector has a haze finish. This commercial grade LED retrofit trim module is supplied with optional retaining clips in case the existing frame does not have adequate springs to secure the reflector. This quality retrofit is supplied with an external driver, for easy retrofit and maintenance, and the power supply features integral thermal protection. The one-piece design is quick and easy to install into existing recessed frames.
|Dimensions||10 5/16" Diameter x 5 3/8" H|
|Rated Life||50,000 Hours|
|Dimmable||Yes 0-10V Only|
|Certifications||RoHS, cULus, ENERGY STAR|
|Warranty||5 Year Limited|
