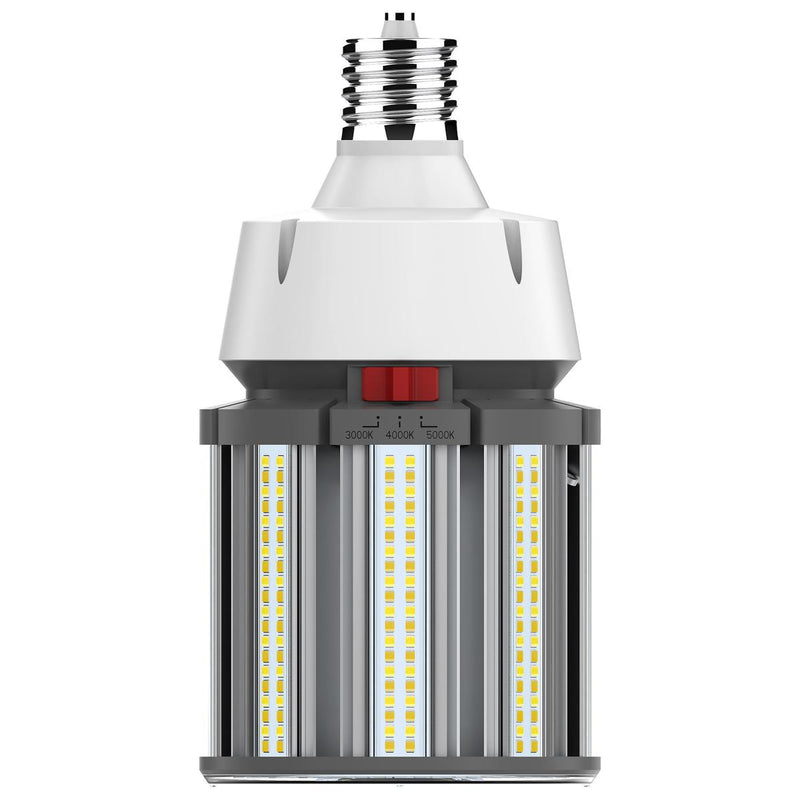

80 Watt LED High Voltage Corn Cob EX39 277-480V 3000/4000/5000K

Satco SKU: S23167
Satco 80 Watt LED High Voltage Corn Cob EX39 277-480V 3000/4000/5000K

80 Watt LED High Voltage Corn Cob EX39 277-480V 3000/4000/5000K

Satco SKU: S23167
  • DLC Listed
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

Satco's S23167 (80W/LED/CCT/277-480V/EX39) Satco Hi-Pro LED post top lighting retrofit offers an EX39 Mogul base that easily integrates energy saving LED technology into even your tightest site lighting, roadway or post top lighting format. The corncob retrofit light bulbs consume just 80 watts of 277 to 480 volt energy and generate between 104,000-105,000 initial lumens of either 3000K, 4000K or 5000K color selectable light output - an excellent energy saving bulb to replace an existing 300 watt Metal Halide or High Pressure Sodium HID.

The 80 watt LED corncob light bulb, which is UL Listed for either Dry or Damp locations, has been designed to retrofit existing HID installations, thereby reducing maintenance and energy expenditures in residential, commercial, retail displays, hotel, motel and resort applications and as an energy saving light source for new fixtures and installations. Please NOTE: When retrofitting LED to an HID fixture, the ballast must be by-passed or removed from the fixture. Additionally, by-passing the ballast will insure no RFI interference.

Manufacturer Satco
Color Temperature (Kelvin) 3000/4000/5000K
MPN 80W/LED/CCT/277-480V/EX39
SKU S23167
UPC 045923231674
Lumens 10,400/11,200/10,800 Lumens
Efficiency (Lumens Per Watt) 130/140/135 LPW
Wattage 80 Watts
Lighting Technology LED
Voltage 277-480V
Frequency 50/60 Hz
Ballast Operation Type B Bypass
Dimmable Yes, via Sensor Port
Beam Angle 300 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Dimensions 9.88" MOL x 5.12" MOD
Certifications IP64, Enclosed Fixture Rated
DLC Product ID S-IQ65D8
Environment Damp Location
Warranty 5 Year Limited


Satco Color Selectable EX39 LED High Voltage Corn Cob Specification Sheet

Satco Color Selectable EX39 LED High Voltage Corn Cob Installation Instructions

Satco Color Selectable EX39 LED High Voltage Corn Cob DLC Product Listing
