The Juno Pro-Series LED Under Cabinet fixtures, with integral 120 Volt electronic driver, are constructed with 3000K LEDs. Their light output is equivalent to Pro-Series Halogen & Pro-Series Xenon fixtures but the Pro-Series LED fixtures offer maintenance free 50,000 hour life and use 1/6 the energy (and virtually no heat) when compared to those halogen & xenon fixtures. Pro-Series LED fixtures are optimized for fast, permanent installation mounting either flush to the rear back-splash or to the front lip of cabinetry to suit project conditions and homeowner preference. Juno Pro-Series LED fixtures are environmentally friendly and contain no harmful mercury. They are the perfect enhancement to a wide variety of residential and commercial decors.
All Juno Pro-Series LED fixtures maintain a slim 1" extruded aluminum profile and are available in a lengths of 9", 14", 22" and 30". To complement any decor, each length is also available in four designer finishes - Designer White, Black, Brushed Bronze and Brushed Silver. The extrusion is optimally designed to dissipate heat, to both maximize lamp life and minimize the cabinet contact temperature. A reverse-angled tempered glass prism lens hinges down for cleaning to provide the optimum mix of safety, simple maintenance, high light transmission and glare control. All these features and more are integrated into an attractive package that will provide years of high-quality, problem-free task lighting.

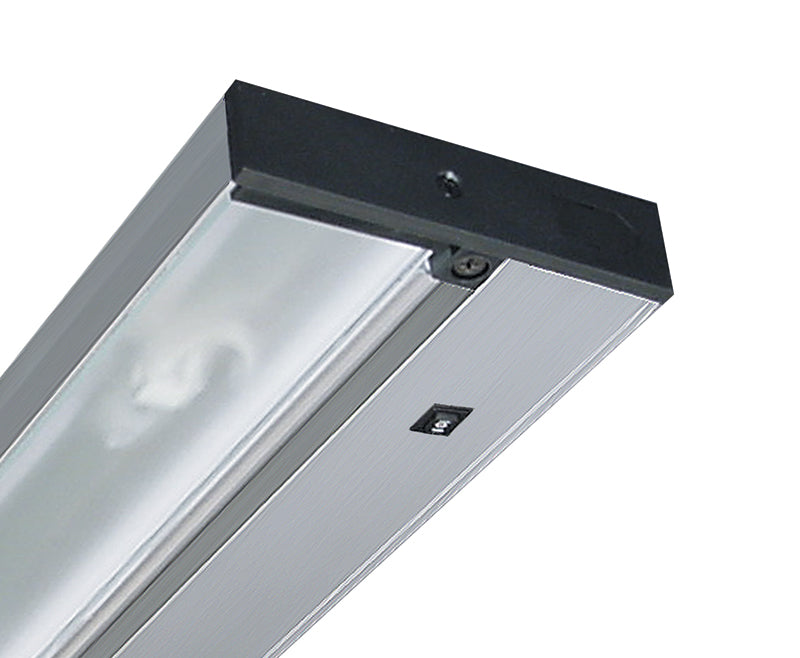

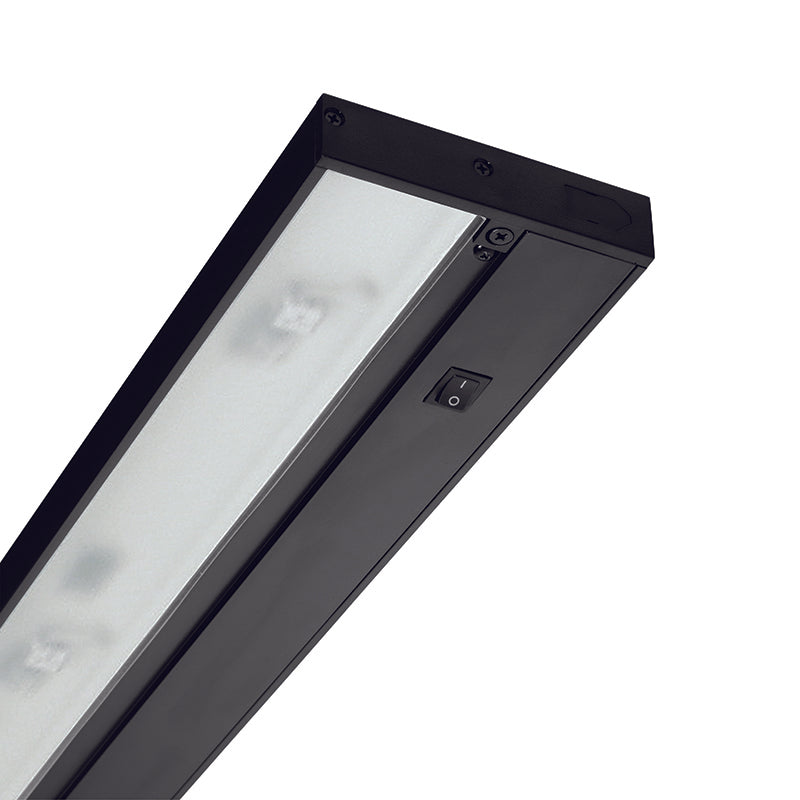

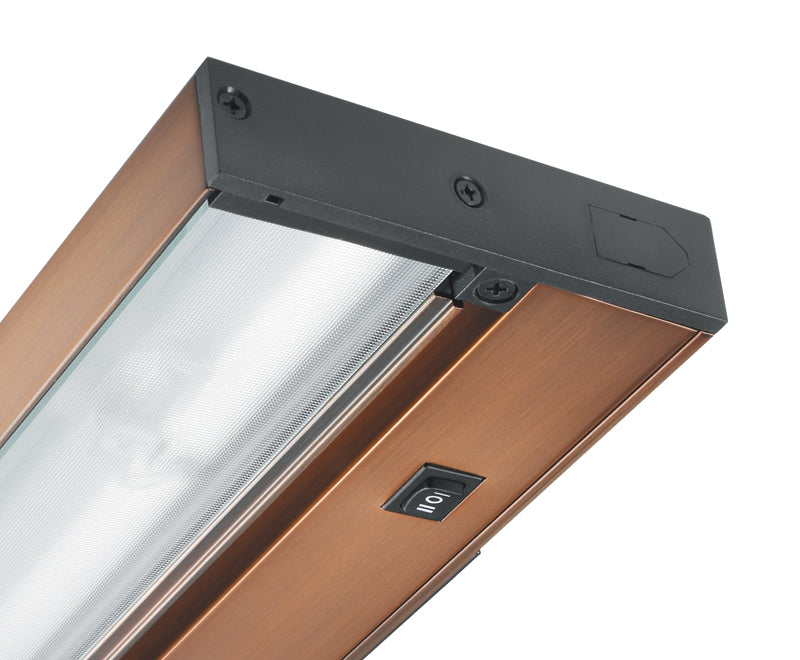

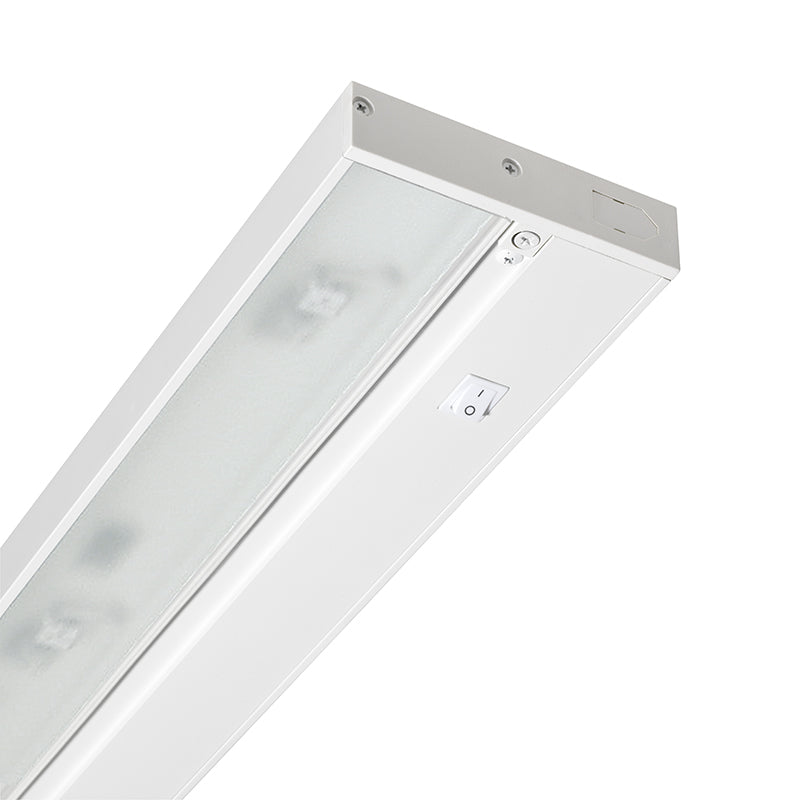

This is the 9" LED Pro-Series under cabinet lighting fixture in either Black, Bronze, Silver or White finish. Each fixture operates two (2) 1W LEDs. The physical dimensions of the UPLED09-BL is 9 1/2" long by 4 1/2" deep by 1" high. This LED under cabinet light comes complete with one fixture joiner (for flush side-by-side connections) and mounting hardware. Either the 6' cord and plug (part number ULH-CP-BL) or the direct wire module (part number ULH-DWM-BL) are required to energize the first fixture in any run and both are sold separately.
All Pro-Series fixtures install in less than five minutes owing to their unique rear-wire access door and captive mounting screws that allow installation without having to open up the wire-way or remove the lens. Connect multiple UPLED Pro-Series fixtures using either the fixture joiner, supplied with the fixture to allow side-by-side installations or use either the JC3-8-BL 8", JC3-17-BL 17" or JC3-26-BL 26" jumper cord (each sold separately). Additional fixtures in a run simply plug into the first. The Pro-Series installation innovations turn one of the contractors least favorite fixtures to install into a pleasure.
The Juno Pro-Series LED under cabinet fixtures are dimmable with most standard incandescent, magnetic low voltage or electronic low voltage dimmers. The dimming range depends on dimmer model. Note: Due to the low wattage of UPLED09, it is recommended to combine this luminaire on a dimmer with at least one additional luminaire for best dimming performance.
Number of LEDs | 2 LEDs |
Operating Voltage | 120 Volt |
Light Color | 3000K Warm White |
Color Rendering | 80 CRI |
Dimensions | 9.5" L x 4.5" D x 1" H |
Dimmable | Yes |
Maximum Run | 5 Amps |
Warranty | 5 Year Limited |
