90 Watt Linear LED 277-480V High Bay Light Fixture

EiKO SKU: 13404
EiKO 90 Watt Linear LED 277-480V High Bay Light Fixture

90 Watt Linear LED 277-480V High Bay Light Fixture

EiKO SKU: 13404
  • DLC Listed
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

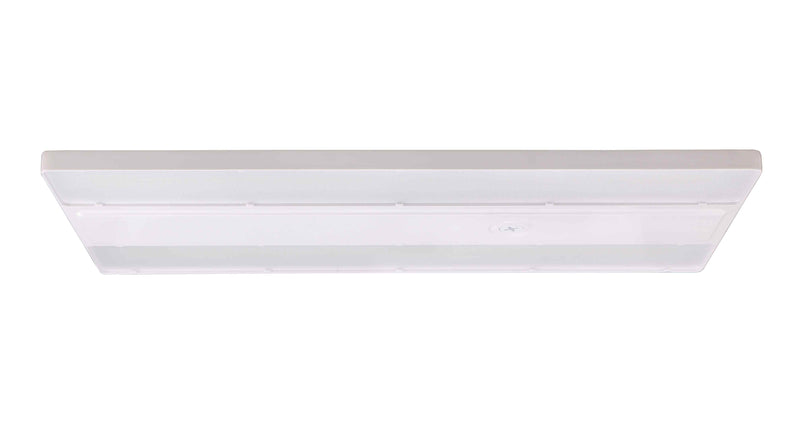

The EiKO LH1-090-50-V LED Linear High Bay shop light provides a lumen package that is ideal for replacing HID and linear fluorescent work shop light fixtures. This economical fixture offers high performance and long 100,000 life, excellent color rendering - greater than 80 CRI - and it is even UL Listed for Damp Locations. The 277-480 volt, 0-10V dimmable, LED driver offers typical applications in warehouses, manufacturing plants, distribution centers, grocery stores, cold storage, commercial and recreational facilities the flexibility required in today's demanding energy efficient environment.

The LH1-090-50-V consumes 90 watts, delivers an amazing 13,500 lumens of 5000K daylight, 80 CRI light (that's an impressive efficacy of 150 lumens per watt). Each LED high bay fixture measures 11" wide by 23" long by 2-3/16 tall. Each EiKO LH1-090-(XX)-V has a minimum starting temperature of -40 degrees Fahrenheit, a maximum operating temperature of 122 degrees Fahrenheit and they carry a 5-year limited warranty.

Manufacturer EiKO
MPN LH1-090-50-V
SKU 13404
UPC 031293134042
Lighting Technology LED
Wattage 90 Watts
Voltage 277-480V
Color Temperature (Kelvin) 5000K Daylight
Lumens 13,500 Lumens
Efficiency (Lumens Per Watt) 150 LPW
Dimmable Yes, 0-10V Dimming
Beam Angle 90 Degrees
Rated Life 100,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor >0.9
THD (Total Harmonic Distortion) <20%
Housing Die Cast Aluminum
Lens Polycarbonate
Fluorescent Equivalent 4xT8/T12
HID Equivalent 250 Watts
Operating Temperature -40°F to 122°F (-40°C to 50°C)
Dimensions 11" x 23" x 2-3/16"
Certifications DLC Listed, FCC Compliant
DLC Product ID S-U0LX4E
Environment Damp Location
Warranty 5 Year Limited



EiKO Linear LED High Bay Light Fixture Specification Sheet

EiKO Linear LED High Bay Light Fixture Installation Instructions
