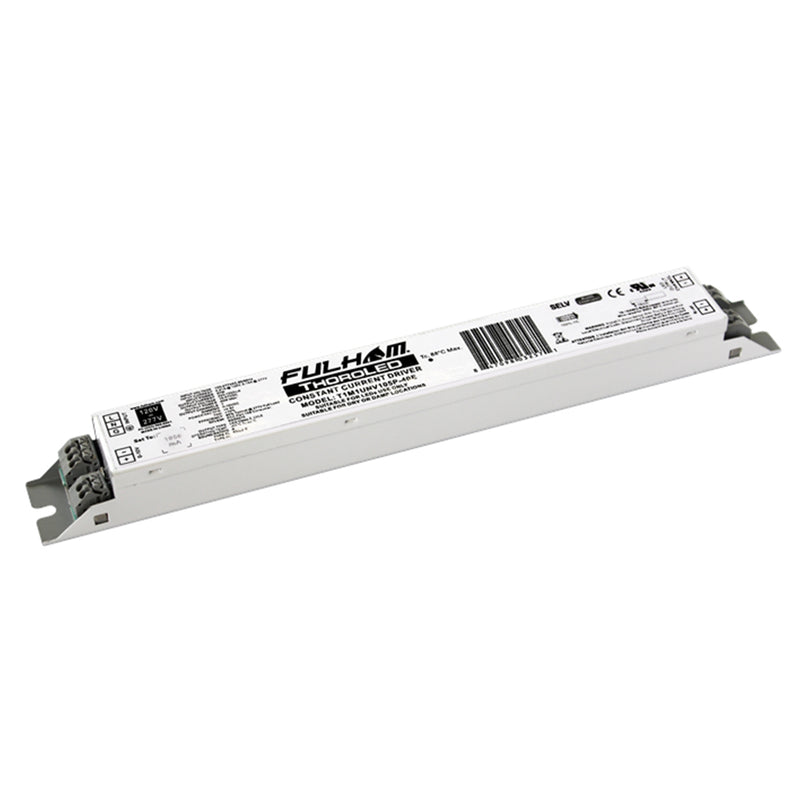

T1M1UNV105P-40E 40 Watt LED 250-1050mA Programmable Constant Current Driver

Fulham SKU: T1M1UNV105P-40E
Fulham T1M1UNV105P-40E 40 Watt LED 250-1050mA Programmable Constant Current Driver

T1M1UNV105P-40E 40 Watt LED 250-1050mA Programmable Constant Current Driver

Fulham SKU: T1M1UNV105P-40E
Regular price $61.74
/
Please call to confirm availability.
Please Call for Programming Options
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

Fulham Company Group is a leading global provider of intelligent, sustainable commercial lighting components and electronics for use in commercial general lighting, parking structure, signage, horticultural, UV and other applications. The company develops and manufactures a variety of award-winning LED and emergency products, as well as legacy products across multiple lighting platforms. Fulham is dedicated to intelligent, sustainable lighting solutions that give their users the power to control their light.

Fulham brings you their WorkHorse LED Drivers. These WorkHorse LEDs are programmable constant current drivers that are dimmable (0-10V dimming) and come in single output channels. These drivers have a wide programmable current range in 1mA increments. This allows the driver to match the output of existing fixtures or serve as a flexible platform for new luminaire designs. They will most definitely stand the test of time with a 5 year limited warranty and a rated service life of 50,000 hours. The rugged construction guarantees performance and reliability in outdoor and high-power indoor settings. The WorkHorse LED driver is comes in compact or linear style cases, allow them to fit numerous applications.

This item is the Fulham WorkHorse LED power supply part number T1M1UNV105P-40E. The input voltage is universal 120-277 volt and is a single-output channel, 0-10V dimmable LED driver, with a customizable dimming curve or step dimming. The constant output current is programmable between 250-1050mA output. The Fulham WorkHorse LED Driver comes with multiple protections including input current, input surge, output short circuit, output open circuit, output to ground short, over temperature and overload protection. The WorkHorse LED 120-277V 40W driver is rated for 50,000 hours of service life. Approvals of this driver include, RoHS, cURus, LED Class 2, Type TL, CE, SELV, and Dry or Damp Locations.

Manufacturer Fulham
MPN T1M1UNV105P-40E
SKU T1M1UNV105P-40E
UPC 847098032571
Lighting Technology LED
Driver Type Constant Current
Wattage 40 Watts
Input Voltage 120-277VAC
Voltage Output 10-57VDC
Input Current 0.41A @ 120V; 0.18A @ 277V
Current Output Programmable; 250-1050mA
Input Power 47 Watts
Frequency 50/60Hz
Output Channels 1 Channel
Dimmable 0-10VDC; 100%-10%
Rated Life 50,000 Hours
Power Factor >0.92
THD (Total Harmonic Distortion) <10%
Sound Rating A
Operating Temperature -40°C to 60°C (-40°F to 140°F)
Max Case Temperature 88°C (190.4°F)
Dimensions 10.83" L x 1.22" W x 0.98" H
Certifications Class 2, RoHS, cURus
Environment Damp Location
Warranty 5 Year Standard
