Juno Trac 12 is a miniature 20-amp low voltage track system that boldly goes where no other track lighting system can go. Small and compact, Trac 12 can be ceiling mounted, suspended in cramped quarters, or, it can be integrated into casework, coves or display cases. Wherever it goes, Juno's Trac 12 creates stunning illumination - from accent to spot to linear lighting effects. This low voltage track lighting system features a wide variety of diminutive fixtures that are perfectly matched to its miniaturized scale. LED modules, LED mini floods, LED mini cylinders and LED mini track lighting pendants offer maximum performance with minimal energy consumption.

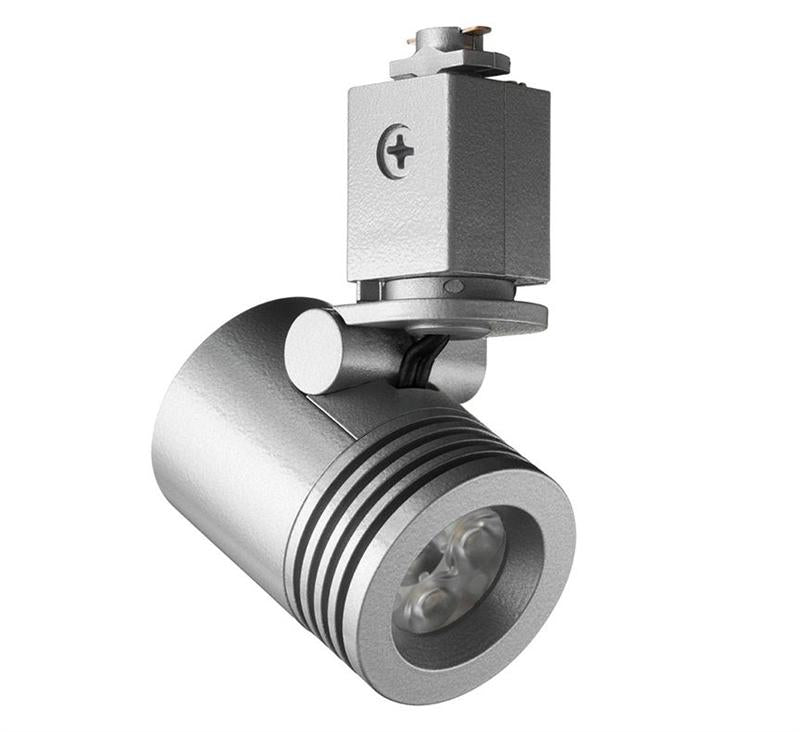

The Trac 12 LED Mini-Cylinder delivers big time performance from a fixture so small that it fits easily in the palm of your hand. It offers the light output and distribution of 20 watt MR11 halogen bulbs but requires just one-third the energy and lasts more than 10 times longer. LED Mini-Cylinder spotlight track heads are available in 2700K, 3000K, 3500K and 4000K color temperatures with a minimum 80 CRI. All color temperatures are available with beam spread options of 21 degrees (Spot), 25 degree (Narrow Flood) or 38 degrees (Flood) and all versions are available in your choice of Black, White or Silver. Now that is useful flexibility! The LED mini-cylinder spotlight is compatible with standard Trac 12 track systems, operating at 12VAC power, LED compatible transformers. An economical and flexible accent lighting choice, the TL114G2 series LED track light heads can be placed anywhere along the track.
This item is the Juno Trac 12 LED Mini-Cylinder Track Lighting Spotlight generates an amazing 272 lumens of either 2700K, 3000K, 3500K or 4000K color temperature of light output while consuming just 6.6 watts of 12 volt power. The 12 volt transformer is a separate component that is sold separately and is installed in conjunction with the Juno Trac 12 track. Compatible 12VAC transformers include the Juno TL602E-60-(XX) or the Juno Trac 12 TL540U Monopoint with integral transformer. The TL114 has a Flood type optic which will give you a uniform, 38 degree beam spread. High performance, low power LEDs provide outstanding reliability, performance and color quality.
The precision machined aluminum construction provides outstanding thermal management of the LEDs, yielding 70% average lumen maintenance at 50,000 hours of operation. The Trac 12 TL114G2 series track light heads may be dimmed with dimmers tested and qualified by Juno for use with the non-resistive TL114 series load (please see the transformer/driver specifications for compatible dimmers). The TL114G2 Mini-Cylinder LED Spotlight series is UL/cUL Listed for use with Trac 12 track. Each LED track head carries a warranty period of 5 years on LED components from the date of purchase. Standard Juno Lighting Group product guarantee terms and conditions apply. Please Note: Continuously operating the TL114G2 above 12VAC will void the warranty.
|Equivalent||20 Watt MR11 Halogen|
|Dimensions||1 13/16" W x 3 1/8" H|
|Rated Life||50,000 Hours|
|Beam Angle||38 Degree (Flood)|
|Warranty||5 Year Limited|
