Trac 12 1.5W LED Module For Track Lighting
- Details
- Specifications
- Documents
Juno Trac 12 is a miniature 20-amp low voltage track system that boldly goes where no other track lighting system can go. Small and compact, Trac 12 can be ceiling mounted, suspended in cramped quarters, or, it can be integrated into casework, coves or display cases. Wherever it goes, Juno's Trac 12 creates stunning illumination - from accent to spot to linear lighting effects. This low voltage track lighting system features a wide variety of diminutive fixtures that are perfectly matched to its miniaturized scale. LED modules, LED mini floods, LED mini cylinders and LED mini track lighting pendants offer maximum performance with minimal energy consumption.
The third generation of Juno Trac 12 LED Modules are the superior choice for linear lighting. They deliver bright-white illumination equivalent to xenon lamps but consume just one-eighth the energy. With a rated service life of 50,000 hours, they can provide over 10 years of maintenance-free operation. The LED module track lights are available in four color temperatures (2700K, 3000K, 3500K and 4000K) and can be placed anywhere along the track. The low profile and miniaturized dimensions of the Trac 12 system make it ideal for cove, under cabinet, undershelf, task, and casework display lighting in any residential, retail, or commercial interior.
The Juno Trac 12 LED Modules offer a fixture efficacy up to 57 lumens per watt and 85 CRI typical. Unprecedented Energy Saving modules produce light output equivalent to 5W-10W xenon, while reducing energy required by over 85%. There is virtually no forward projected heat and these LED track modules will not fade ultraviolet-sensitive objects. The lightly diffused lenses provide wide, uniform light distribution and place more lumens in useful zones than comparable xenon lamps. The Trac 12 Low Power LED Modules install directly on Trac 12 or Trac 12/25 systems using a variety of standard 12-volt AC magnetic transformers or electronic drivers. The lower power consumption permits longer runs using fewer transformers than comparable xenon installations. The color temperature remains constant over the full dimming range using Juno-qualified, widely available, two-wire, low voltage dimmers.

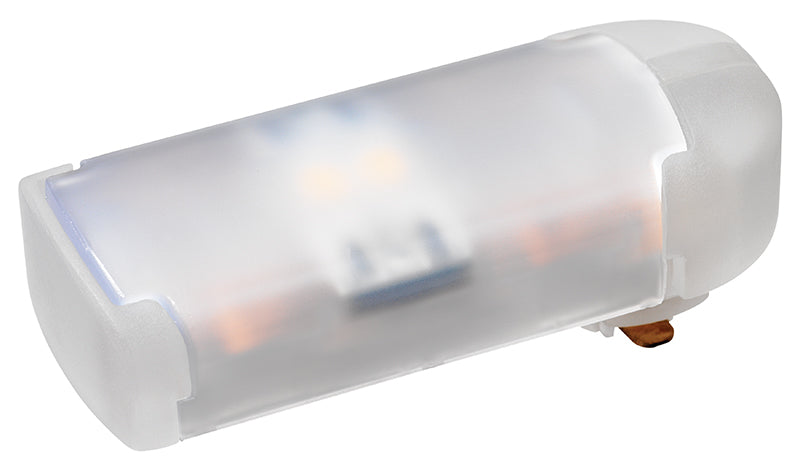

This item is the Juno Trac 12 Miniature LED Module, it generates a beautiful 76 lumens of either 2700K, 3000K, 3500K or 4000K color temperature of light output while consuming just 1.5 watts of 12 volt power. The 12 volt transformer is a separate component that is sold separately and is installed in conjunction with the Juno Trac 12 track. Compatible 12VAC transformers include the Juno TL602E-60-WH. The high performance LEDs provide outstanding reliability, performance and color quality.
The high temperature polycarbonate housing provides outstanding thermal management of the LEDs, yielding 70% average lumen maintenance at 50,000 hours of operation. The Trac 12 TL214LED series LED module track light heads may be dimmed with dimmers tested and qualified by Juno for use with the non-resistive TL214LED series load (please see the transformer/driver specifications for compatible dimmers). The TL214LED LED module series is UL/cUL Listed for use with Trac 12 and Trac 12/25 track. Each LED track bulb carries a warranty period of 5 years on the LED components from the date of purchase. Standard Juno Lighting Group product guarantee terms and conditions apply. Please Note: Continuously operating the TL214LED above 12VAC will void the warranty.
Watts | 1.5 Watts |
Voltage | 12 Volt |
Lumens | 76 Lumens |
CRI | 85 CRI |
Dimensions | 2" L x 7/8" W x 7/16" H |
Rated Life | 50,000 Hours |
Dimmable | Yes |
Certifications | UL, cUL |
Warranty | 5 Year Limited |
