WSX PDT Dual Tech Occupancy Sensor

Acuity Controls SKU: WSX PDT WH
Acuity Controls WSX PDT Dual Tech Occupancy Sensor White
Acuity Controls WSX PDT Dual Tech Occupancy Sensor Ivory

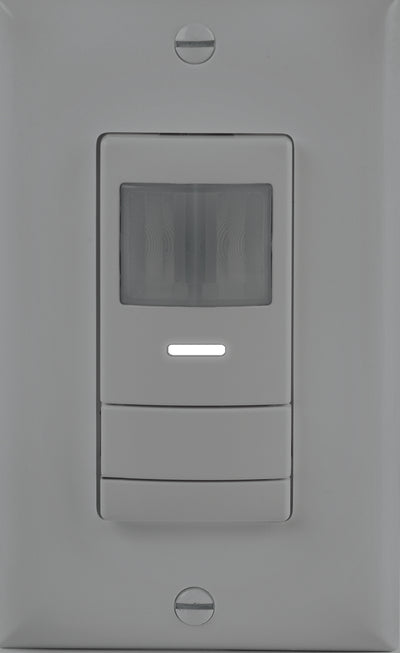

Acuity Controls WSX PDT Dual Tech Occupancy Sensor Gray

WSX PDT Dual Tech Occupancy Sensor

Acuity Controls SKU: WSX PDT WH
Regular price $85.54
/
Finish Color
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Secure payments

Acuity Brands is here to offer you their extensive line of lighting controls. Sensor Switch offers one of the industry's broadest selections of occupancy sensors, photocell devices, panels, switches, fixture-level and wireless controls for indoor and outdoor applications, single rooms or even campuses and municipalities. Using digital passive infrared (PIR) detection and Microphonics technology, these sensors accurately respond to occupant behavior.

The WSX Series from Sensor Switch of wall switch occupancy sensors provides simple and cost effective solutions for commercial and residential lighting control applications. These sensors have a stylish low profile appearance, soft-click buttons, and provide small motion detection up to 20 feet, making them perfect for private offices, private rest rooms, closets, copy rooms, or any other small enclosed space. All WSX sensors have a wiring method that enables them to function either with or without a neutral connection. These do come pre-configured for wiring without a neutral, however if connection to neutral is required by your building code, contractors can convert the unit in seconds. A user programmable time delay ensures that once the room is vacated the sensor will time out and turn off the lights. Additionally, the WSX sensor has a built in photocell that is turned off by default but can prevent the lights from turning on if sufficient daylight is present. For rooms with obstructions, the Dual Technology WSX PDT Series sensor is recommended. Please contact us for any product that you do not currently see available.

This is item number, WSX PDT WH (IV,GY), the base unit of the WSX series in a pristine white, ivory or gray color with a vandal resistant lens and operates off of either 120V or 277V. It mounts directly into a single gang switch box. This motion sensor wall switch is compatible with LEDs, electronic and magnetic ballasts, CFLs, and incandescents. This sensor has 100% passive detection, which means it has no potential for interference with other building systems. The WSX PDT WH (IV,GY) occupancy sensor has a small motion detection (ex. hand movements) up to 20 feet and large motion (ex. walking) detection greater than 36 feet. This model features Dual Technology (PIR Detection and Microphonics). The device accommodates powering over ground or neutral connection and has an ultra low current leakage when connected via ground. This sensor fully meets NEC 2011 Section 404.2C neutral requirements while line power and load wires are interchangeable which means it is impossible to wire backwards. To see the full product specification and wiring diagrams refer to the specification sheet.
