The Westgate Dusk to Dawn Barn Light is perfect for many general purpose outdoor applications. It can mount directly on a wall or pole. All fixtures are installed with a NEMA twist lock photocell.

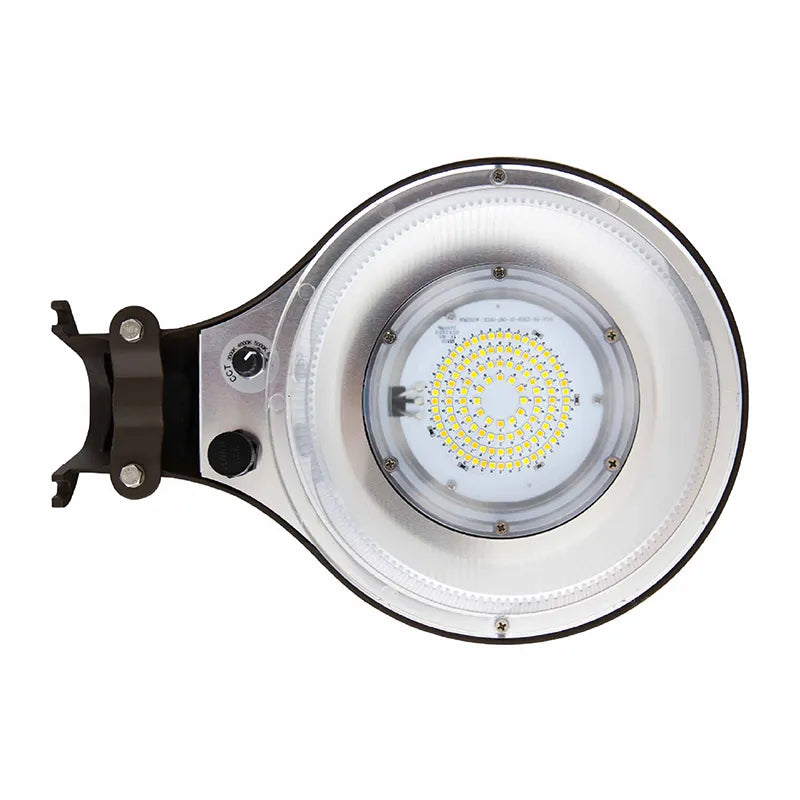

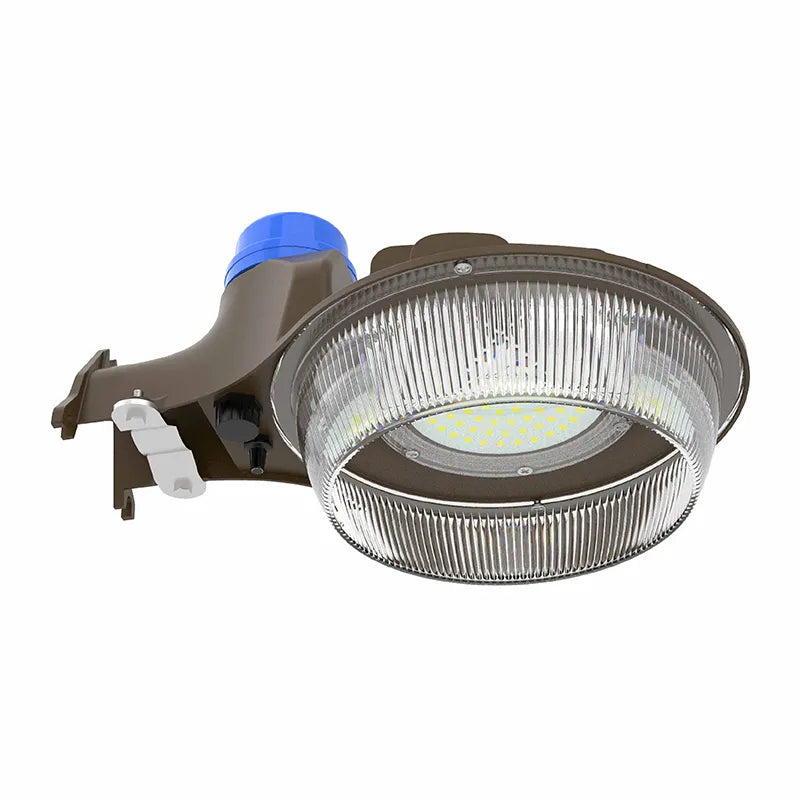

Introducing the Selectable LED Dusk to Dawn Barn Light Fixture, part number LRX-50-120W-MCTP, from Westgate. With selectable 50/80/100/120 watts of power and generate 7,800-17,000 lumens, this fixture offers efficient lighting at 130 lumens per watt. This barn light fixture come in a bronze finish, with four color temperatures, 3500K bright white, 4000K cool white, 5000K daylight and 5700K daylight. This fixture offers a 7 year warranty and is rated for 70,000 hours.
The Westgate LED Dusk to Dawn Light with Photocell is ideal for general site lighting, yard/barn lighting, loading docks, doorway, pathway and parking areas.
| Manufacturer | Westgate |
| MPN | LRX-50-120W-MCTP |
| SKU | LRX-50-120W-MCTP |
| Lighting Technology | LED |
| Voltage | 120-277VAC |
| Frequency | 60Hz |
| Dimmable | Yes, 0-10V Dimming |
| Beam Angle | 90 Degrees x 110 Degrees |
| Rated Life | 70,000 Hours |
| CRI (Color Rendering Index) | 70 CRI |
| Power Factor | >0.90 |
| THD (Total Harmonic Distortion) | <20% |
| Housing | Die Cast Aluminum Alloy |
| Lens | Polycarbonate |
| Operating Temperature | -40°F to 104°F |
| Dimensions | 11” W x 18 1/3” H x 8” D |
| Certifications | IP65 Rated, cULus Listed |
| Environment | Wet Locations |
| Warranty | 7 Year Standard |
| Wattage | 50 Watts | |||
| Color Temperature (Kelvin) | 3000K Warm White | 4000K Cool White | 5000K Daylight | 5700K Daylight |
| Lumens | 7,800 Lumens | 8,000 Lumens | 8,320 Lumens | 8,320 Lumens |
| Efficiency (Lumens Per Watt) | 130 LPW | |||
| Wattage | 80 Watts | |||
| Color Temperature (Kelvin) | 3000K Warm White | 4000K Cool White | 5000K Daylight | 5700K Daylight |
| Lumens | 11,400 Lumens | 11,800 Lumens | 12,100 Lumens | 12,100 Lumens |
| Efficiency (Lumens Per Watt) | 130 LPW | |||
| Wattage | 100 Watts | |||
| Color Temperature (Kelvin) | 3000K Warm White | 4000K Cool White | 5000K Daylight | 5700K Daylight |
| Lumens | 13,800 Lumens | 14,050 Lumens | 14,500 Lumens | 14,500 Lumens |
| Efficiency (Lumens Per Watt) | 130 LPW | |||
| Wattage | 120 Watts | |||
| Color Temperature (Kelvin) | 3000K Warm White | 4000K Cool White | 5000K Daylight | 5700K Daylight |
| Lumens | 16,000 Lumens |
16,500 Lumens | 17,000 Lumens |
17,000 Lumens |
| Efficiency (Lumens Per Watt) | 130 LPW | |||
