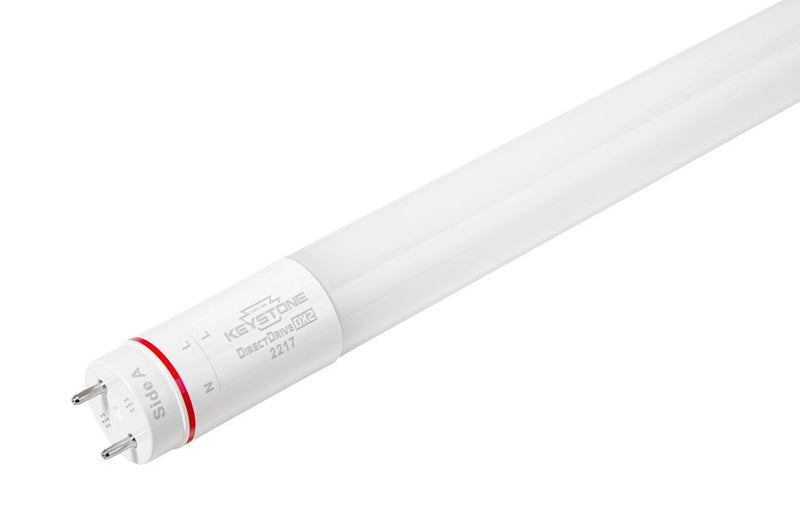

Name: 2 Foot 7 Watt T8 Ballast Bypass LED Glass Coated Tube Light
Brand: Keystone Technologies
SKU: KT-LED7T8-24GC-835-DX2 /G2
Price: 10.47 USD
Availability: InStock

Keystone Technologies 2 Foot 7 Watt T8 Ballast Bypass LED Glass Coated Tube Light

DLC Listed, NSF Listed

Price

Color Temp

3500K Bright White

4000K Cool White

5000K Daylight

Quantity

Please call to confirm availability.

Free Shipping on Orders Over $750

Most in-stock items ship the same day!

[{"id":44600104616180,"title":"3500K Bright White","option1":"3500K Bright White","option2":null,"option3":null,"sku":"KT-LED7T8-24GC-835-DX2 \/G2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2 Foot 7 Watt T8 Ballast Bypass LED Glass Coated Tube Light - 3500K Bright White","public_title":"3500K Bright White","options":["3500K Bright White"],"price":1047,"weight":1814,"compare_at_price":null,"inventory_management":"shopify","barcode":"843654157306","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44600104648948,"title":"4000K Cool White","option1":"4000K Cool White","option2":null,"option3":null,"sku":"KT-LED7T8-24GC-840-DX2 \/G2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2 Foot 7 Watt T8 Ballast Bypass LED Glass Coated Tube Light - 4000K Cool White","public_title":"4000K Cool White","options":["4000K Cool White"],"price":1047,"weight":1814,"compare_at_price":null,"inventory_management":"shopify","barcode":"843654157313","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44600104681716,"title":"5000K Daylight","option1":"5000K Daylight","option2":null,"option3":null,"sku":"KT-LED7T8-24GC-850-DX2 \/G2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2 Foot 7 Watt T8 Ballast Bypass LED Glass Coated Tube Light - 5000K Daylight","public_title":"5000K Daylight","options":["5000K Daylight"],"price":1047,"weight":1814,"compare_at_price":null,"inventory_management":"shopify","barcode":"843654157320","requires_selling_plan":false,"selling_plan_allocations":[]}]

Details
Specifications
Documents
Request A Quote

Details

Keystone's DirectDrive DX2 UL Type B tubes have both single- and double-ended wiring options and can utilize either shunted (double-ended only) or non-shunted lamp holders, so they’ll fit into a variety of fixture setups. This Keystone tube is a durable and energy-efficient replacement for conventional fluorescent lamps. With a frosted glass lens, this light eliminates pixilation and has a shatterproof coating for improved durability. Additionally, it is approximately 40% more energy efficient than standard F32T8 lamps and has a lifetime of over 50,000 hours. It also offers the flexibility of single or double-ended wiring and can operate in humidity levels of 35-80%.

This Keystone KT-LED7T8-24GC-8(XX)-DX2 /G2, is DLC listed and consumes 7 watts of 120-277 volts of energy. Suitable for dry or damp location, these LED T8 replacement tubes are non-dimmable and will produce 950/1,000 lumens of light output. Keystone's ballast bypass T8 tubes have 83 CRI and a rated life up to 50,000 hours. The physical dimensions of these shatterproof tubes are 23.19" MOL by 1.02" MOD, each carry a 10 year warranty.

Specifications

Manufacturer	Keystone Technologies
Color Temperature (Kelvin)	3500K Bright White	4000K Cool White	5000K Daylight
MPN	KT-LED7T8-24GC-835-DX2 /G2	KT-LED7T8-24GC-840-DX2 /G2	KT-LED7T8-24GC-850-DX2 /G2
SKU	KT-LED7T8-24GC-835-DX2 /G2	KT-LED7T8-24GC-840-DX2 /G2	KT-LED7T8-24GC-850-DX2 /G2
UPC	843654157306	843654157313	843654157320
Lumens	950 Lumens	1,000 Lumens	1,000 Lumens
Efficiency (Lumens Per Watt)	135 LPW	143 LPW	143 LPW
DLC Product ID	S-NJV3WG	S-TC4ANP	S-V8YEZB
Lighting Technology	LED
Wattage	7 Watts
Voltage	120-277VAC
Ballast Operation	Type B Ballast Bypass
Wiring Method	Single or Double Ended
Bulb Shape	T8
Base	G13 Medium Bi-Pin
Beam Angle	240 Degrees
Rated Life	50,000 Hours
CRI (Color Rendering Index)	83 CRI
Power Factor	>0.9
THD (Total Harmonic Distortion)	20%
Operating Temperature	-20ºC/-4ºF to 45ºC/113ºF
Dimensions	23.19" L x 1.02" Diameter
Nominal Length	24 Inches
Illuminated Length	18.67 Inches
Certifications	DLC Listed, NSF Listed
Environment	Damp Location
Warranty	10 Year Standard

Documents

Keystone Ballast Bypass LED Glass Coated Tube Light Specification Sheet

Keystone Ballast Bypass LED Glass Coated Tube Light 3500K DLC Product Listing

Keystone Ballast Bypass LED Glass Coated Tube Light 4000K DLC Product Listing

Keystone Ballast Bypass LED Glass Coated Tube Light 5000K DLC Product Listing
