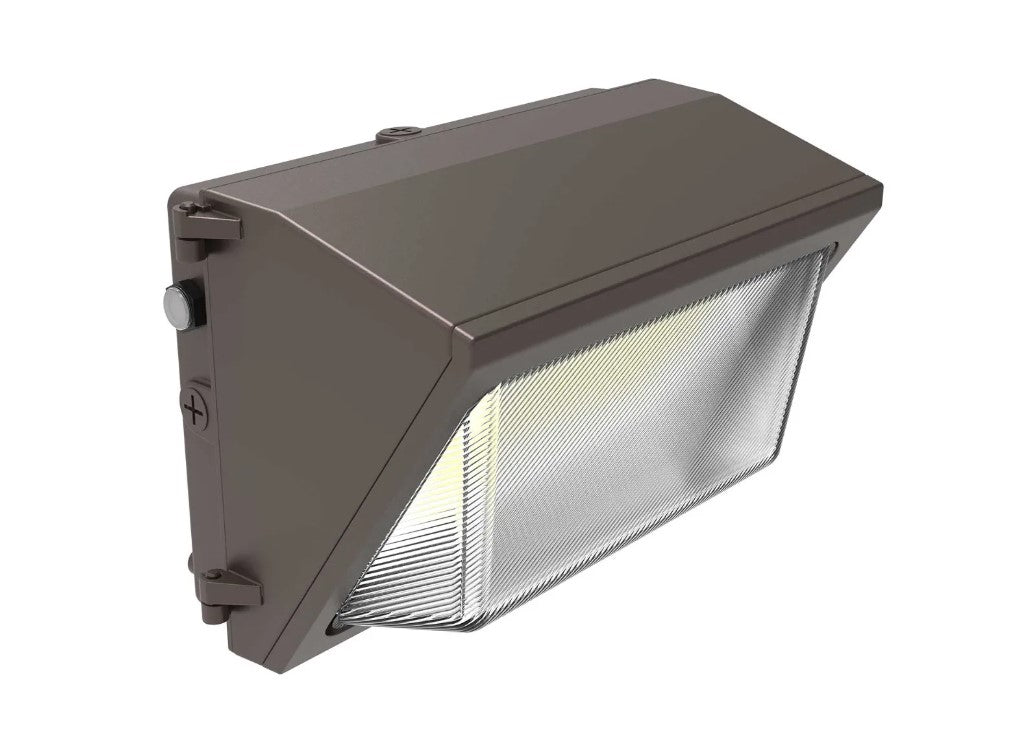

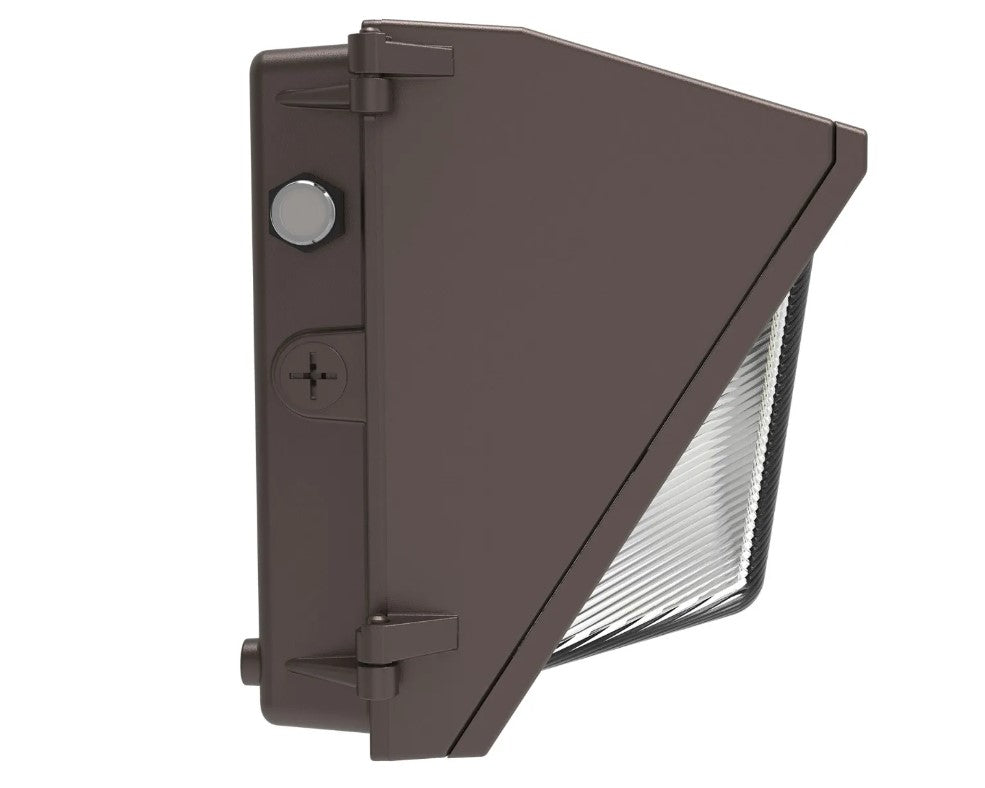

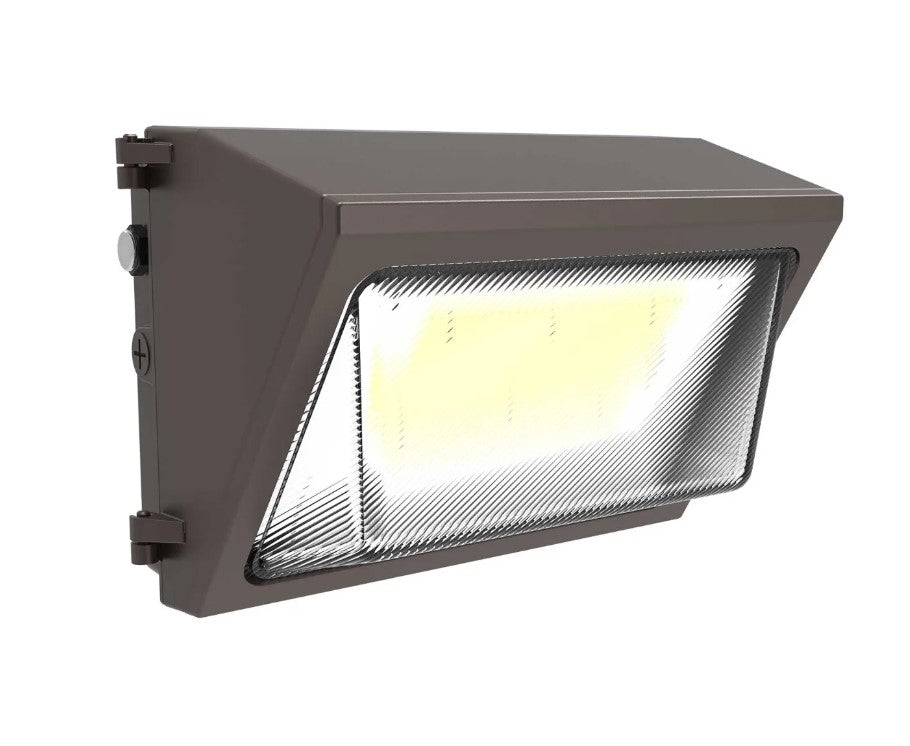

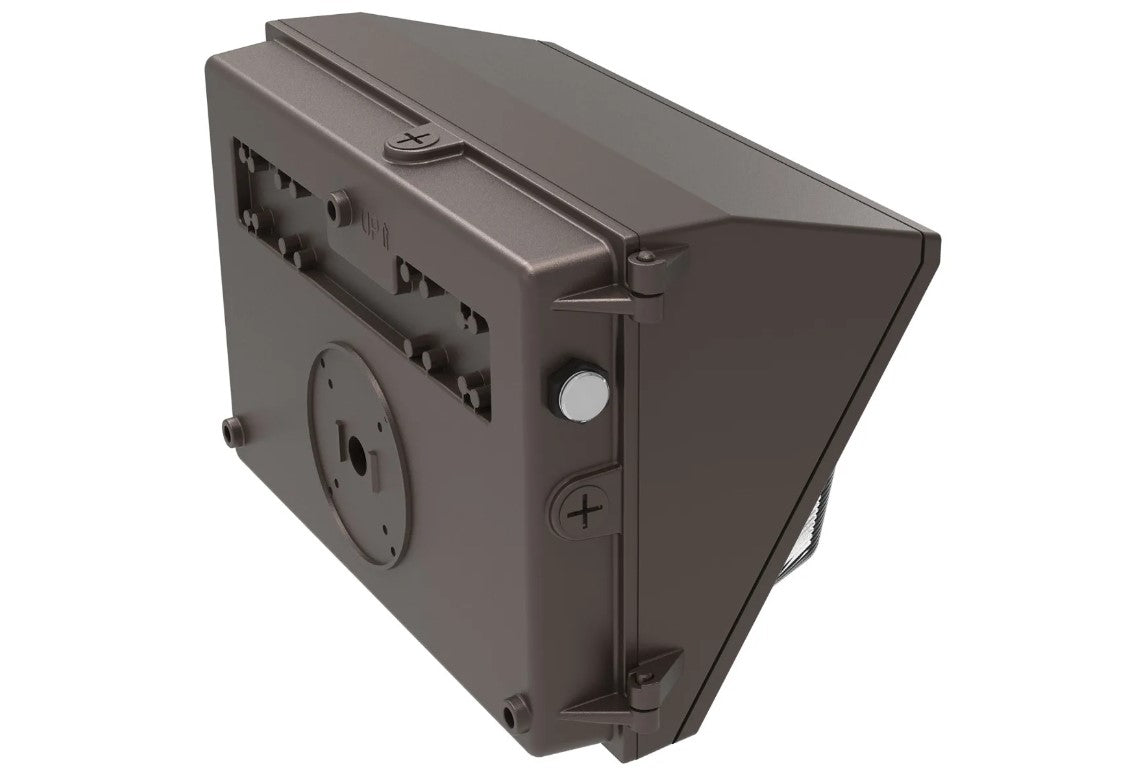

70/80/90/100 Watt ProLED 120-347V Selectable Wall Pack 3000/4000/5000K

Halco Lighting Technologies SKU: 23533
  • IP65, Title 24 Compliant
/
Color Temp
Finish Color
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

The Halco ProLED Select Wallpack Series provides the best value in the Commercial and Industrial Wallpack market to date. The innovative option to select both Wattage and Color Temperature unrivalled in todays market. The WPFS Series products are made of high quality, die-cast aluminum housings and a shatter resistant Borosilicate Glass Lens which offers a traditional, yet robust design. The Traditional Mounting Design with 1/2 inch knock outs on sides makes installation a breeze.

This item is the Halco Lighting WPFS2-WS-CS-U-PC (23533). This Halco Lighting wattage and color selectable LED Traditional Wall Pack fixture consumes 70/80/90/100 watts of 120-347 volt energy. They generate between 9,656-13,344 lumens (up to 148 lumens per watt), have a rated lumen maintenance of 50,000 hours based on L70 lumen depreciation, a selectable color temperature of either 3000K Warm White, 4000K Cool White or 5000K Daylight and a CRI of 80. The wall lights carry a 5 year standard warranty.

Manufacturer Halco Lighting Technologies
MPN WPFS2-WS-CS-U-PC
SKU 23533
UPC 807154235339
Lighting Technology LED
Voltage 120-347VAC
Frequency 50/60Hz
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor <0.9
Finish Color Bronze
Housing Injection Die-Cast Aluminum
Lens Borosilicate Glass
Equivalent 300-400 Watts
Dimensions 15.55” x 10.83” x 10.04”
Certifications IP65 Rated, RoHS Compliant, Title 24 Compliant
Environment Wet Location
Warranty 5 Year Standard
Wattage 70 Watts
Color Temperature (Kelvin) 3000K Warm White 4000K Cool White 5000K Daylight
Lumens 9,656 Lumens 10,212 Lumens 9,940 Lumens
Efficiency (Lumens Per Watt) 136 LPW 148 LPW 140 LPW
Wattage 80 Watts
Color Temperature (Kelvin) 3000K Warm White 4000K Cool White 5000K Daylight
Lumens 10,773 Lumens 11,210 Lumens 11,097 Lumens
Efficiency (Lumens Per Watt) 133 LPW 145 LPW 137 LPW
Wattage 90 Watts
Color Temperature (Kelvin) 3000K Warm White 4000K Cool White 5000K Daylight
Lumens 11,830 Lumens 12,496 Lumens 12,103 Lumens
Efficiency (Lumens Per Watt) 130 LPW 142 LPW 133 LPW
Wattage 100 Watts
Color Temperature (Kelvin) 3000K Warm White 4000K Cool White 5000K Daylight
Lumens 12,400 Lumens 13,344 Lumens 12,900 Lumens
Efficiency (Lumens Per Watt) 124 LPW 139 LPW 129 LPW


Halco ProLED 120-347V Selectable Wall Pack Specification Sheet

Halco ProLED 120-347V Selectable Wall Pack Installation Instructions
