The ZLED Lighting Magnilumen Plus kits are easy to install and fit into almost any existing linear fluorescent fixture with onboard magnets. This makes it a perfect upgrade option where energy savings and lighting efficiency is key like hospitals, schools, office buildings, car dealerships, correctional facilities, showrooms, retail stores and any structure looking for a brighter and crisper lighting scene. These kits are incredibly efficient and can incur huge savings compared to retrofitting with LED tubes. These kits are perfect for retrofitting 1' x 4', 2' x 4', and 2' x 2' fixtures, as well as 4' and 8' linear strip lights.

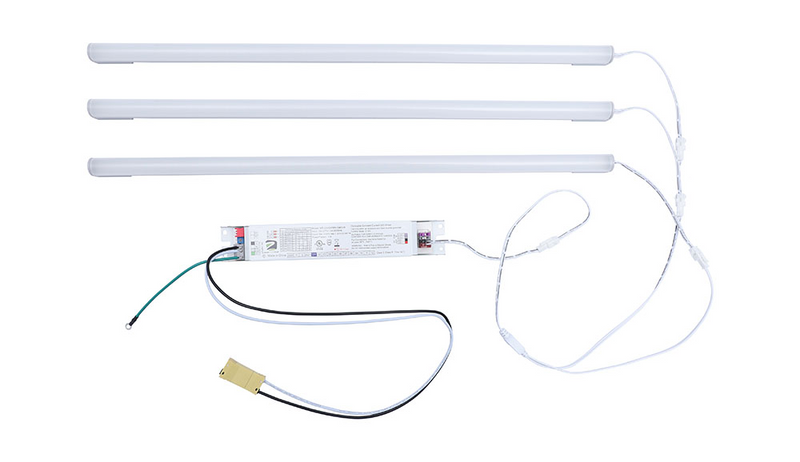

The MRK3340-(XX)K-PLUS is Magnilumen Plus' 3 foot retrofit strip kit, which consumes selectable watts choosing between 7 different wattages. These magnetic strips produce between 3,600-6,300 lumens with a diffuser and between 4,320-7,560 lumens without a diffuser. This kit comes with (3) 3 foot magnetic light strips, a wattage selectable driver, wiring harness and mounting screws. Available in four color temperatures: 3000K warm white, 3500K bright white, 4000K cool white and 5000K daylight. With a 5 year warranty and 100,000 hour lifespan, these kits are perfect for both new and existing light fixtures.
| Manufacturer | ZLED Lighting - Magnilumen Plus | |||
| Color Temperature (Kelvin) | 3000K Warm White | 3500K Bright White | 4000K Cool White | 5000K Daylight |
| MPN | MRK3340-30K-PLUS | MRK3340-35K-PLUS | MRK3340-40K-PLUS | MRK3340-50K-PLUS |
| SKU | MRK3340-30K-PLUS | MRK3340-35K-PLUS | MRK3340-40K-PLUS | MRK3340-50K-PLUS |
| UPC | 080101407809 | 080101407816 | 080101407823 | 080101407830 |
| Lighting Technology | LED | |||
| Driver Type | Magnetic - See Driver Spec Table Below | |||
| Wattage | 24/28/30/32/38/40/42 Watts | |||
| Input Voltage | 100-277VAC | |||
| Output Voltage | 27-42VDC | |||
| Dimmable | Yes, 0-10V Dimming | |||
| Rated Life | 100,000 Hours | |||
| CRI (Color Rendering Index) | 80 CRI | |||
| Power Factor | ≥0.9 | |||
| THD (Total Harmonic Distortion) | ≤10% | |||
| Operating Temperature | -40ºF to 122ºF | |||
| Strip Dimensions | 30.91" L x 0.75" H x 0.72" W | |||
| Driver Dimensions | 9.213" L x 1.141" H x 1.417" W | |||
| Certifications | ETL Listed | |||
| Environment | Damp Location | |||
| Warranty | 5 Year Standard | |||
| Driver Specifications - MRK-DRIVER-40W-PLUS | |||||
| Input Wattage | Input Voltage | Output Voltage | Switch 1 | Switch 2 | Switch 3 |
| 24 Watt | 560MA | 27-42V | Up | Up | Up |
| 28 Watt | 650MA | Down | Up | Up | |
| 30 Watt | 700MA | Up | Down | Up | |
| 32 Watt | 770MA | Up | Up | Down | |
| 38 Watt | 840MA | Down | Up | Down | |
| 40 Watt | 880MA | Up | Down | Down | |
| 42 Watt | 940MA | Down | Down | Down | |
| Wattage | Lumens W/Diffuser | Efficiency (Lumens Per Watt) | Lumens W/O Diffuser | Efficiency (Lumens Per Watt) |
| 24 Watt | 3,600 Lumens | 150 LPW | 4,320 Lumens | 180 LPW |
| 28 Watt | 4,200 Lumens | 5,040 Lumens | ||
| 30 Watt | 4,500 Lumens | 5,400 Lumens | ||
| 32 Watt | 4,800 Lumens | 5,760 Lumens | ||
| 38 Watt | 5,700 Lumens | 6,840 Lumens | ||
| 40 Watt | 6,000 Lumens | 7,200 Lumens | ||
| 42 Watt | 6,300 Lumens | 7,560 Lumens |
