Options for LED recessed lighting fixtures, whether installing canless wafer light kits or retrofitting your current can lights, have grown rapidly. Canless wafer LED light kits can be used for remodel or new construction LED recessed ceiling downlight projects. LED retrofit downlights are installed utilizing your existing recessed can housing.

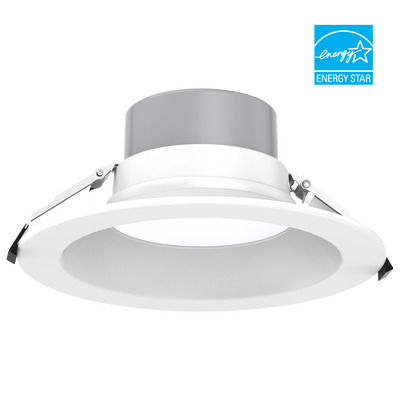

The Halco CDLH10AR40/8(XX)/LED Downlight Retrofit light kits are a perfect choice for use in your existing 10" non-IC recessed can applications. Halco's LED retrofit cans combine low up-front cost, minimal labor, best-in-class energy efficiency and architectural-quality light to deliver an exceptional value for all your retrofit projects. The downlight operates on your existing 120 through 277 volt circuit and consumes just 40 watts. These LED retrofit lights generate 3,995 delivered lumens (just over 99 Lumens Per Watt) and have a Color Rendering Index (CRI) of 80. The Halco 10" commercial LED downlight retrofit offers out-of-the-box dimming compatibility using 0-10 volt controls and is suitable for damp locations as well as being RoHS compliant. These LED downlights carry a 5 year limited warranty and are acceptable for use in Non-IC housings.

This commercial grade LED retrofit trim module is supplied with universal mounting clips for varying ceiling thickness, an external driver for easy retrofit and maintenance, and the power supply features integral thermal protection. Emergency battery options are available for all color temperatures upon request. Please contact our customer service representatives if you require one of these options or want a quote for a larger job.

Specifications

Manufacturer	Halco Lighting Technologies
Color Temperature (Kelvin)	4000K Cool White	5000K Daylight
MPN	CDLH10AR40/840/LED	CDLH10AR40/850/LED
SKU	99853	99854
UPC	807154998531	807154998548
Lumens	3995 Lumens
Wattage	40 Watts
Efficiency (Lumens Per Watt)	99.8 LPW
Lighting Technology	LED
Voltage	120-277V
Frequency	50/60 Hz
Dimmable	Yes, 0-10V
Rated Life	50,000 Hours
CRI (Color Rendering Index)	80 CRI
Power Factor	>0.95
Finish Color	White
Fluorescent Equivalent	42 Watts
Operating Temperature	0°C to 40°C
Dimensions	11.65" Diameter x 9.56" H
Certifications	Energy Star
Environment	Damp Location
Warranty	5 Year Limited

Documents

Specification Sheet

Installation Instructions
