Get the best LED drivers from Magnitude Lighting and experience their advanced technology that produces the highest efficiency ratings in the industry. With headquarters in Orange County, they provide top-quality products, fast fulfillment, and top-notch customer support.
Magnitude Lighting brings you the most compact magnetic core dimmable 12V LED Drivers with the M-Series. This driver is dimmable and encased in a coated metal box that includes 2 knock-outs, to enable easy installation that complies with electrical code requirements. These drivers have a wide range of wattages and current outputs to meet numerous applications. The Magnitude magnetic LED drivers are compact in size, allowing them to fit into your application.

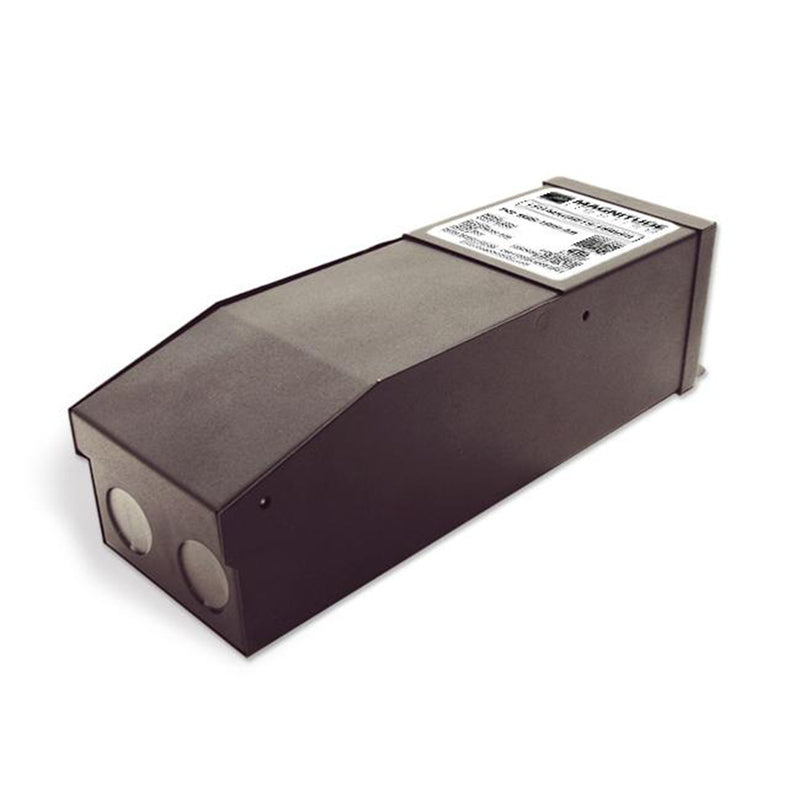

The M20L12DC-AR is the Magnitude Lighting constant voltage power supply M-Series LED driver. The input voltage is 120 volt and is equipped with two auto-reset breakers, one on the input and one on the output, which protect both the load and the driver. The output current is 1.65A output. This driver will operate any series of parallel string of LEDs designed for constant voltage input of 12V. This LED Driver is dimmable with any standard MLV/incandescent TRIAC - (Leading edge) dimmer switch. It is NEMA 3R rated and ETL Listed, all while being certified to the CSA Standard, with a 5 year warranty.
| Manufacturer | Magnitude Lighting |
| MPN | M20L12DC-AR |
| SKU | M20L12DC-AR |
| UPC | 810020791952 |
| Lighting Technology | LED |
| Driver | Constant Voltage |
| Output Current | 1.65A (1650mA) |
| Input Current | 0.195A |
| Output Wattage | 20 Watt |
| Input Voltage | 120VAC |
| Output Voltage | 12VDC |
| Frequency | 50/60Hz |
| Efficiency | 89.8% |
| Dimming | Phase Dimming |
| Operating Temperature | -30°C to 45°C |
| Dimensions | 5.60" L x 2.10" W x 2.10" H |
| Certifications | ETL Listed |
| Environment | Dry and Damp Location |
| Warranty | 5 Year |
