1x4 20/25/30/35/40 Watt Selectable LED Grid Frame Light 3000/3500/4000/5000/6500K

EiKO SKU: 16224
1x4 20/25/30/35/40 Watt Selectable LED Grid Frame Light 3000/3500/4000/5000/6500K
1x4 20/25/30/35/40 Watt Selectable LED Grid Frame Light 3000/3500/4000/5000/6500K
1x4 20/25/30/35/40 Watt Selectable LED Grid Frame Light 3000/3500/4000/5000/6500K
1x4 20/25/30/35/40 Watt Selectable LED Grid Frame Light 3000/3500/4000/5000/6500K
1x4 20/25/30/35/40 Watt Selectable LED Grid Frame Light 3000/3500/4000/5000/6500K
1x4 20/25/30/35/40 Watt Selectable LED Grid Frame Light 3000/3500/4000/5000/6500K
1x4 20/25/30/35/40 Watt Selectable LED Grid Frame Light 3000/3500/4000/5000/6500K
1x4 20/25/30/35/40 Watt Selectable LED Grid Frame Light 3000/3500/4000/5000/6500K
1x4 20/25/30/35/40 Watt Selectable LED Grid Frame Light 3000/3500/4000/5000/6500K
1x4 20/25/30/35/40 Watt Selectable LED Grid Frame Light 3000/3500/4000/5000/6500K
1x4 20/25/30/35/40 Watt Selectable LED Grid Frame Light 3000/3500/4000/5000/6500K
1x4 20/25/30/35/40 Watt Selectable LED Grid Frame Light 3000/3500/4000/5000/6500K

1x4 20/25/30/35/40 Watt Selectable LED Grid Frame Light 3000/3500/4000/5000/6500K

EiKO SKU: 16224
  • Damp Location Rated, DLC Premium Listed
/
Color Temp
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

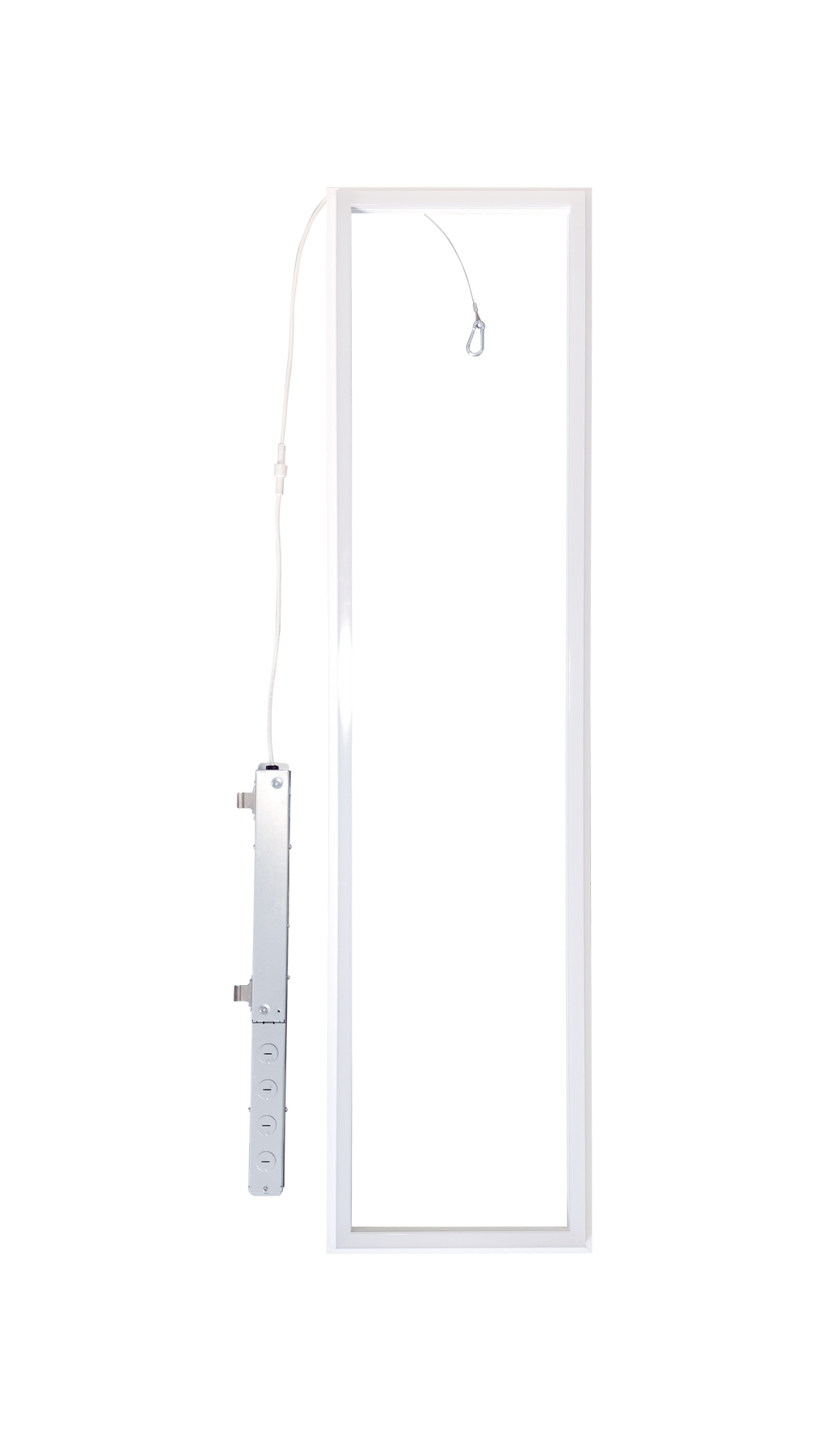

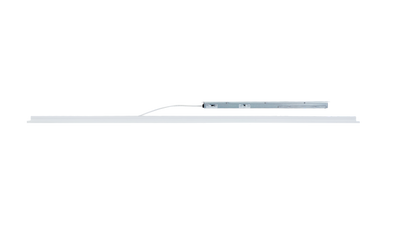

The EiKO Grid Frame Light features a sleek 1-piece design that delivers seamless, continuous illumination with the performance of LED flat panels. Easy to install and customizable with PowerSET and ColorSET technology, it's ideal for modern commercial and institutional spaces.

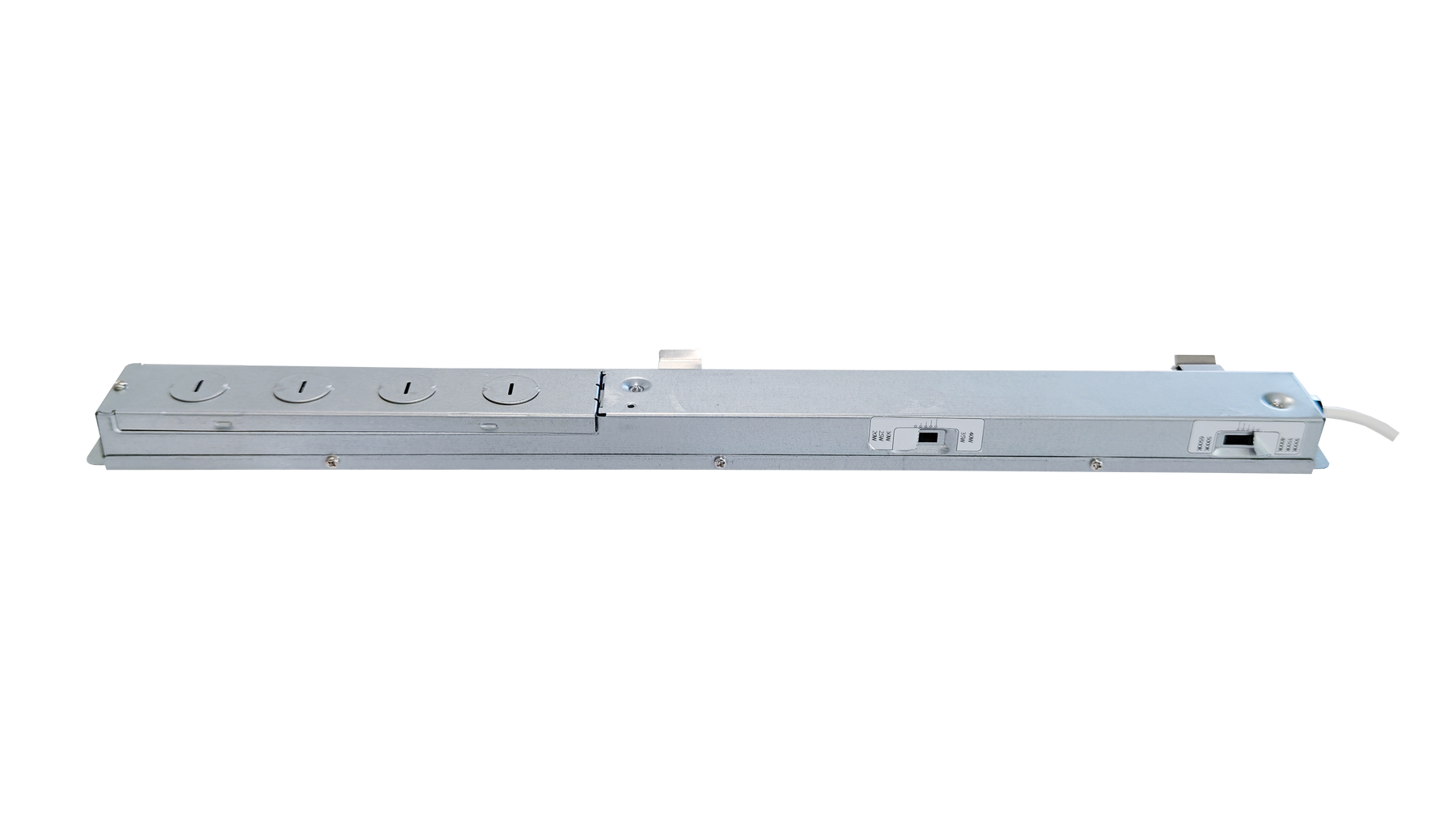

This is the EiKO GFL-14-PS40-8FCCT-HDIM (16224), a 1x4 LED frame that consumes selectable 20/25/30/35/40 watts of 120-347 volt energy and the driver have a power factor of >0.9. The GFL-14-PS40-8FCCT-HDIM generates an average of 2,600-5,200 lumens with a rated lumen maintenance of 50,000 hours based on L70 lumen depreciation. This LED frame can change between 3000 Warm White, 3500K Bright White, 4000K Cool White, 5000K Daylight and 6500K Daylight and has a CRI of at least 80. This 1x4 frame light fixture is designed to be compatible with most standard 0-10V dimming controls. The EiKO Grid Frame Light fixtures carry a 5 Year Warranty and have Emergency Battery Backup options available (Sold Separately).

Specifications
Manufacturer EiKO
MPN GFL-14-PS40-8FCCT-HDIM
SKU 16224
UPC 031293162243
Lighting Technology LED
Color Temperature (Kelvin) 3000/3500/4000/5000/6500K
Wattage 20/25/30/35/40 Watts
Voltage 120-347V
Frequency 50/60Hz
Lumens 2600/3250/3900/4550/5200 Lumens
Efficiency (Lumens Per Watt) 130 LPW
Dimmable Yes, 0-10V Dimming
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor >0.9
THD (Total Harmonic Distortion) <20%
Lens Polycarbonate Lens
Operating Temperature -4°F-104°F (-20°C to 40°C)
Dimensions 47.75" L x 11.94" W x .98" H
Certifications DLC Premium, UL Certified, FCC, RoHS Compliant
DLC Product Listing S-9SSYSM
Environment Damp Location Rated
Warranty 5 Year Limited Warranty
Documents

EiKO LED Wattage And Color Selectable Grid Frame Light Specification Sheet

EiKO LED Wattage And Color Selectable Grid Frame Light Installation Instructions

EiKO LED Wattage And Color Selectable Grid Frame Light DLC Product Listing
