Keystone's back-lit panels feature a frosted lens that provides evenly diffused light, so hot spots aren’t an issue. And the optical lenses covering each individual LED chip ensures there’s no risk of yellowing over time. These panels are just 1 inch deep and 30% lighter than competing panels. They’ll hold up—but won’t weigh down your installers or your ceiling.

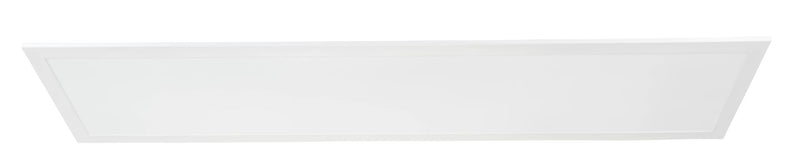

This Keystone Technologies KT-BPLED35PS-14C-8CSA-VDIM color and wattage select flat panel operates at 20/30/35 watts of 120-277 volt energy, producing 2,400-4,200 lumens (113-130 per watt) and rated at 50,000-hour life expectancy (L70 lumen depreciation). Selectable color temperatures of 3500K Bright White, 4000K Cool White, or 5000K Daylight offer a CRI of 80. The product is backed by a 5 year standard warranty.
| Manufacturer | Keystone Technologies |
| MPN | KT-BPLED35PS-14C-8CSA-VDIM |
| SKU | KT-BPLED35PS-14C-8CSA-VDIM |
| UPC | 843654156972 |
| Lighting Technology | LED |
| Voltage | 120-277V |
| Dimmable | Yes, 0-10V Dimming |
| CRI (Color Rendering Index) | 80 CRI |
| Operating Temperature | -20ºC/-4ºF to 40ºC/104ºF |
| Certifications | DLC Listed |
| DLC Product ID | S-4F680Z |
| Environment | Damp Location |
| Warranty | 5 Year Standard |
| Wattage | 20 Watts | ||
| Color Temperature (Kelvin) | 3500K Bright White | 4000K Cool White | 5000K Daylight |
| Lumens | 2,400 Lumens | 2,600 Lumens | 2,450 Lumens |
| Efficiency (Lumens Per Watt) | 120 LPW | 130 LPW | 123 LPW |
| Wattage | 30 Watts | ||
| Color Temperature (Kelvin) | 3500K Bright White | 4000K Cool White | 5000K Daylight |
| Lumens | 3,450 Lumens | 3,700 Lumens | 3,500 Lumens |
| Efficiency (Lumens Per Watt) | 115 LPW | 123 LPW | 117 LPW |
| Wattage | 35 Watts | ||
| Color Temperature (Kelvin) | 3500K Bright White | 4000K Cool White | 5000K Daylight |
| Lumens | 3,950 Lumens | 4,200 Lumens | 4,000 Lumens |
| Efficiency (Lumens Per Watt) | 113 LPW | 120 LPW | 114 LPW |
