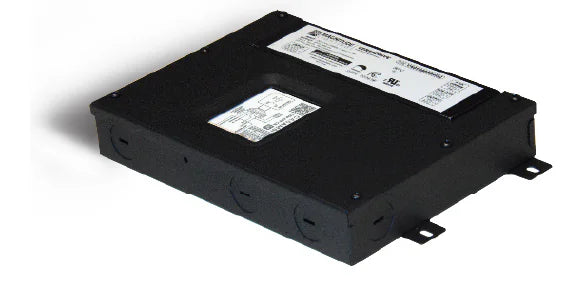

Magnitude's VersaDrive LED driver (VAWCA96L24DC) delivers professional-grade performance with seamless Casambi wireless integration. Whether you're working with high-density tape, strip lights, or COB LED products, this driver provides the reliable power and control you need. With universal input voltage (120-277V) and constant 24VDC output, it supports a maximum load of 96 Watts with ultra-smooth dimming down to 1%. This UL rated Class 2 LED driver is compatible with Casambi Bluetooth controls ecosystem.
Engineered for durability, this constant voltage driver includes comprehensive safety features including over current, over voltage, over temperature, overload, and short-circuit protection. These safeguards prevent flashing and unexpected resets, ensuring consistent performance even at full output.
| Manufacturer | Magnitude |
| MPN | VAWCA96L24DC |
| SKU | VAWCA96L24DC |
| UPC | 810020793161 |
| Lighting Technology | LED |
| Driver | Constant Voltage |
| Input Current | 1140mA @ 120V, 510mA @ 277V |
| Output Wattage | 96 Watts |
| Input Voltage | 120-277VAC |
| Output Voltage | 24VDC Constant Voltage |
| Frequency | 50/60Hz |
| Power Factor | >0.94 @ Max Load |
| THD (Total Harmonic Distortion) | <20% @ Max Load |
| Efficiency | 84% @ 120V, 85% @ 277V |
| Dimming | Yes, 0-10V, with Integrated Casambi module |
| Max Case Temperature | 90°C (194°F) |
| Operating Temperature | -40°C to 60°c / (-40°F to 140°F) |
| Rated Life | 85,000 Hours |
| Dimensions | 8.5"W x 5.9"H x 1.6"D |
| Certifications | Title 24 Compliant, FCC, RoHS, cULus |
| Environment | Dry Location Only |
| Warranty | 5 Year Warranty |
Magnitude Constant Voltage LED Driver Specification Sheet
Magnitude Constant Voltage LED Driver Installation Instructions
Magnitude Constant Voltage LED Driver Wireless Casambi User Guide
