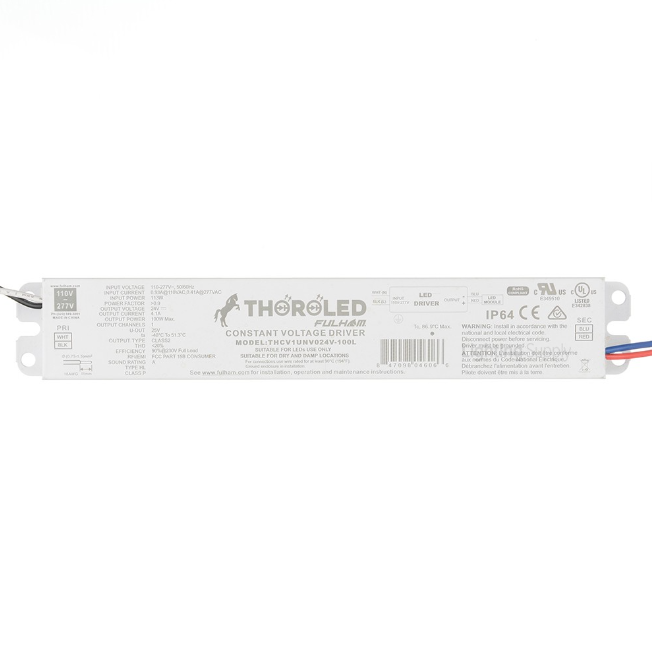

THCV1UNV024V-100L 100 Watt LED 4100mA Constant Voltage Driver

Fulham SKU: THCV1UNV024V-100L
Fulham THCV1UNV024V-100L 100 Watt LED 4100mA Constant Voltage Driver

THCV1UNV024V-100L 100 Watt LED 4100mA Constant Voltage Driver

Fulham SKU: THCV1UNV024V-100L
Regular price $45.83
/
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

LED Driver Cross Reference:
Universal D24VA100UNVA-A
Universal D24VA100UNV-A
Universal L24V100UNV-Q

Universal D24V100UNV-A
Magnitude CVN96L24DC
Magnitude CVN96R24DC

Fulham Company Group is a leading global provider of intelligent, sustainable commercial lighting components and electronics for use in commercial general lighting, parking structure, signage, horticultural, UV and other applications. The company develops and manufactures a variety of award-winning LED and emergency products, as well as legacy products across multiple lighting platforms. Fulham is dedicated to intelligent, sustainable lighting solutions that give their users the power to control their light.

Fulham brings you their ThoroLED Drivers. These ThoroLEDs are constant voltage drivers that are dimmable (0-10V dimming) and come in single and multiple output channel models. These drivers have a wide range of wattages and current outputs to meet numerous applications. They will most definitely stand the test of time with a 5 year limited warranty. The rugged construction guarantees performance and reliability various settings. The ThoroLED driver is comes in compact (square) or linear (long) style cases, allowing them to fit into your application.

This item is the Fulham ThoroLED constant voltage power supply part number THCV1UNV024V-100L. The input voltage is universal 120-277 volt and the max output current is 4.1A output. This driver will operate any LED module designed to accept constant current voltage of 24V and has a maximum input current of 0.93A at 120V power and 0.41A at 277V power. The Fulham ThoroLED Driver comes with multiple protections including input surge protection, input current, output short circuit, output open circuit, output to ground short, and overload protection. The ThoroLED 120-277V 100W driver's approvals include, cULus Class P, RoHS, CE, Dry or Damp Locations.

Manufacturer Fulham
MPN THCV1UNV024V-100L
SKU THCV1UNV024V-100L
UPC 847098046066
Lighting Technology LED
Driver Constant Voltage
Output Current 4.1A (4100mA)
Input Current 0.93A @ 120V; 0.41A @ 277V
Output Wattage 100 Watt
Input Voltage 120-277V
Output Voltage 24VDC
Frequency 50-60Hz
Power Factor >0.9
THD (Total Harmonic Distortion) Power 20%
Efficiency 90%
Sound Rating A
Max Case Temperature 86.9°C
Operating Temperature -40°C to 51.3°C
Rated Life 50,000 Hours
Dimensions 10.47” L x 1.69” W x 0.96” H
Certifications RoHS Compliant, cULus Class P
Environment Dry or Damp Location
Warranty 5 Year Limited
