20/30/40 Watt 2x2 Backlit LED Selectable Emergency Backup Flat Panel 3500/4000/5000K

Satco SKU: 65-575R1
Satco 20/30/40 Watt 2x2 Backlit LED Selectable Emergency Backup Flat Panel 3500/4000/5000K Selectable

20/30/40 Watt 2x2 Backlit LED Selectable Emergency Backup Flat Panel 3500/4000/5000K

Satco SKU: 65-575R1
  • DLC Listed, NSF Listed
Regular price $197.99
Color Temp
Please call to confirm availability.
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

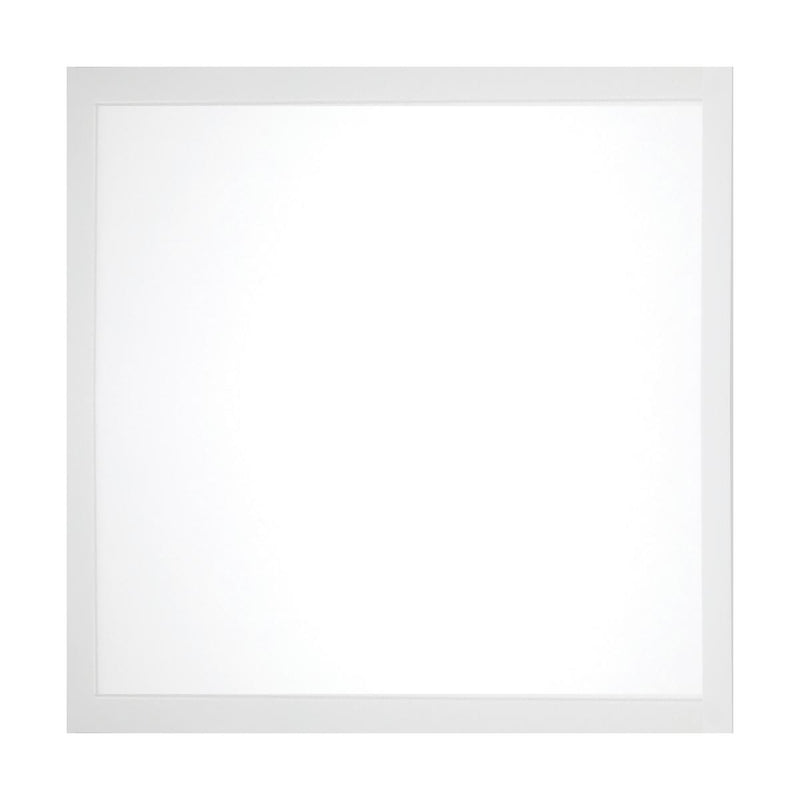

The Satco Nuvo Lighting Color Selectable Backlit LED Flat Panel Fixture, typically used to replace 2x2 and 2x4 fluorescent troffer lighting fixtures, is designed to lay in drop ceilings in offices, schools, and healthcare applications. These LED flat panels with Selectable Color Technology are fully dimmable, and are compatible with building controls, motion sensors, timers, and daylight harvesting systems. The design of the flat lay in troffer produces an even, consistent shadowless light. The LEDs enable long life, high lumen maintenance, and high CRI and are low maintenance and constructed without hazardous materials.

This is the 65-575R1, the emergency backup version of 65-571R1. You can now meet your state codes and keep everyone in the building safe with this emergency lighting backup. These lights will stay on for 90 minutes after the power has gone out, operating at 8 watts. The recharge time for the emergency battery back up is 24 hours. High efficiency LED's installed in each 65-575R1, backlit flat light fixture produce uniform color consistency. The ultra slim, modern design, with a smooth edge lit waveguide lens provides impressive visual comfort. The face frame is extruded aluminum painted white for a high end finish. In keeping with the quality of the rest of the materials, the lens is a translucent white polycarbonate that produces an even, consistent shadowless light. Designed to mount into existing recessed frames, these flat panel LED lights fit standard T-Bar and narrow grid drop ceilings.

These Satco Nuvo Lighting changeable LED flat ceiling panels consumes a selectable 20/30/40 watts of 100-277 volt energy and the driver has a power factor of 99%. The 65-575R1 generates between 2,200 lumens and 4,600 lumens depending on the color temperature selected - that's an efficacy of 110-115 lm/W with a rated lumen maintenance of 50,000 hours based on L70 lumen depreciation. This LED flat panel can change between 3500K Bright White, 4000K Cool White, and 5000K Daylight with a simple toggle switch located on the back of the fixture, and has a CRI of at least 80. This 2x2 flat light fixture is designed to be compatible with most standard 0-10V dimming controls. All Satco Nuvo LED Flat Panel fixtures carry a 5 Year Warranty and are rated for Damp locations.

Manufacturer Satco
MPN 65-575R1
SKU 65-575R1
UPC 045923657177
Lighting Technology LED
Wattage 20/30/40 Watts
Voltage 100-277 Volt
Color Temperature (Kelvin) 3500/4000/5000K
Lumens 2,200-4,600 Lumens
Efficiency (Lumens Per Watt)
110-115 LPW
Yes, 0-10V
Beam Angle 120 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index)
80 CRI
Lens Poly methyl methacrylate (PMMA)
Emergency Wattage 8 Watts
Emergency Operation 90 Minutes
Charging Time 24 Hours
Operating Temperature
-17°C to 45°C
3.06" H x 23.75" W x 23.75" L
Certifications DLC Listed, NSF Approved, FCC Compliant
DLC Product ID S-J0MT7W
Environment Damp Location
Warranty 5 Year Limited
