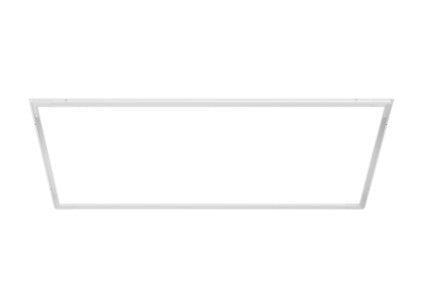

The Vivid LED Frame offers an upscale, architectural aesthetic, output versatility and energy efficiency for interior grid ceiling applications. While delivering a high-end, unique look to any environment, this fixture is also highly adaptable based on the needs of that space. Each size (available in 2’x2’ and 2’x4’) includes three distinct wattage settings as well as three settings for CCT (3500K, 4000K, 5000K). This ensures a perfect match for any application within a limited SKU count. Once wattage and CCT are set, output can still be easily controlled via 0-10V dimming, which is standard on each fixture. Installation is easy; after a quick assembly of the frame, the fixture lays into any standard grid ceiling and connects to a grid rail mounted driver, which houses the selectable wattage and CCT switches. Each fixture delivers long-term efficiency with zero maintenance, and is backed by LiteTronics 5-year warranty.
This is the LiteTronics VLFT4, a 2x4 LED frame that consumes a selectable 24/35/45 watts of 120-277 volt energy and the driver has a power factor of 95%. The VLFT4 generates an average of 3,000-5,625 lumens with a rated lumen maintenance of 50,000 hours based on L70 lumen depreciation. This LED frame can change between 3500K Bright White, 4000K Cool White, and 5000K Daylight and has a CRI of at least 80. This 2x4 frame light fixture is designed to be compatible with most standard 0-10V dimming controls. The LiteTronics LED Frame fixtures carry a 5 Year Warranty and are rated for Damp locations.
| Manufacturer | LiteTronics |
| MPN | VLFT4 |
| SKU | VLFT4 |
| UPC |
706762796600 |
| Lighting Technology | LED |
| Wattage | 24/35/45 Watts |
| Voltage | 120-277V |
| Frequency | 50/60Hz |
| Color Temperature (Kelvin) | 3500/4000/5000K |
| Lumens | 3,000/4,375/5,625 Lumens |
| Efficiency (Lumens Per Watt) | 125 LPW |
| Dimmable | Yes, 0-10V Dimming |
| Beam Angle | 110 Degrees |
| Rated Life | 50,000 Hours |
| CRI (Color Rendering Index) | 80 CRI |
| Power Factor | ≥0.95 |
| THD (Total Harmonic Distortion) | ≤20 |
| Lens | Polycarbonate Lens |
| Operating Temperature | 32°F-104°F (0°C to 40°C) |
| Dimensions | 47.74" L x 23.72" W x 0.61" H |
| Certifications | DLC Premium, FCC Compliant, RoHS Compliant |
| DLC Product ID | S-YH15CG |
| Environment | Damp Location |
| Warranty | 5 Year Standard |
