EiKO SKU: 16226
  • Damp Location Rated, DLC Premium Listed
/
Color Temp
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

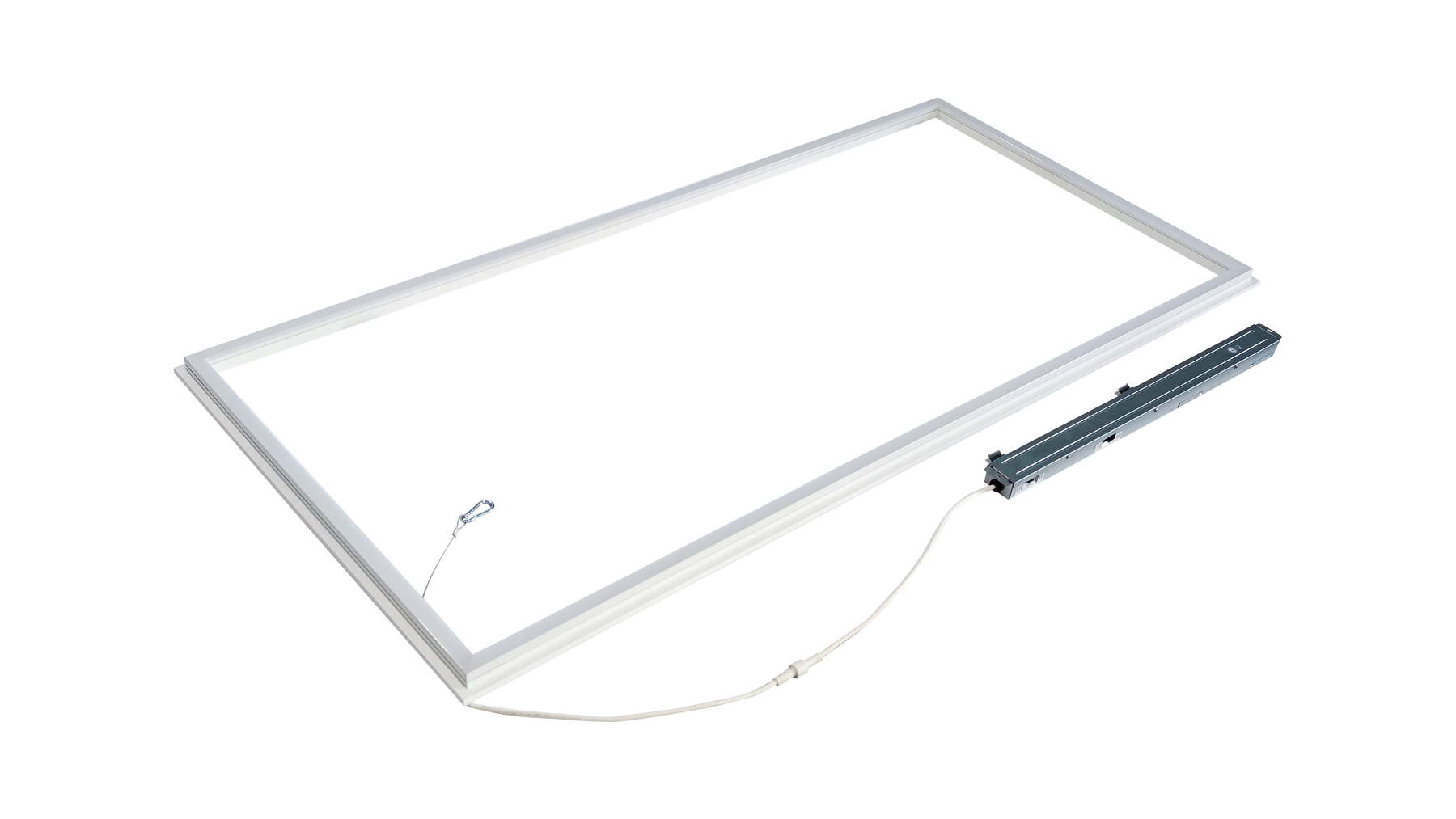

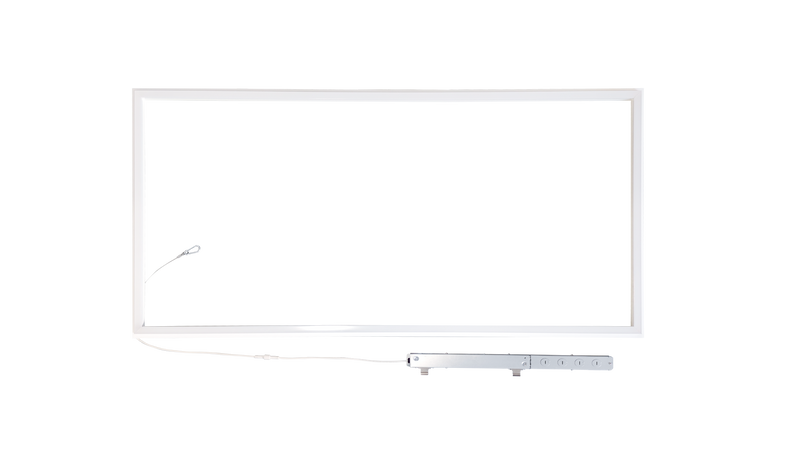

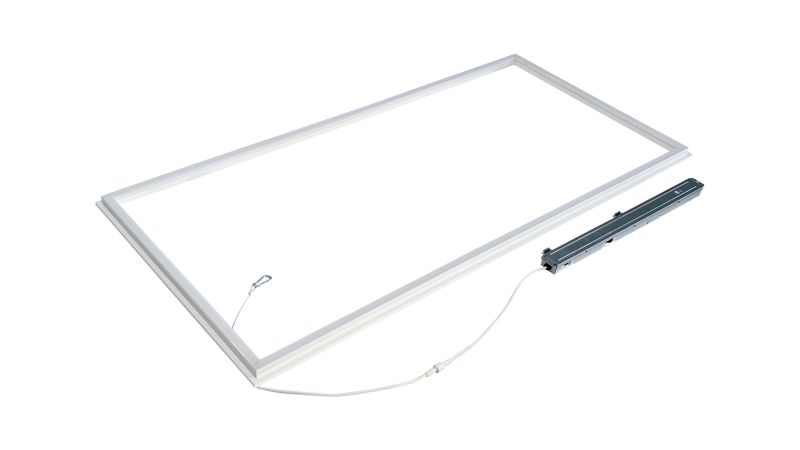

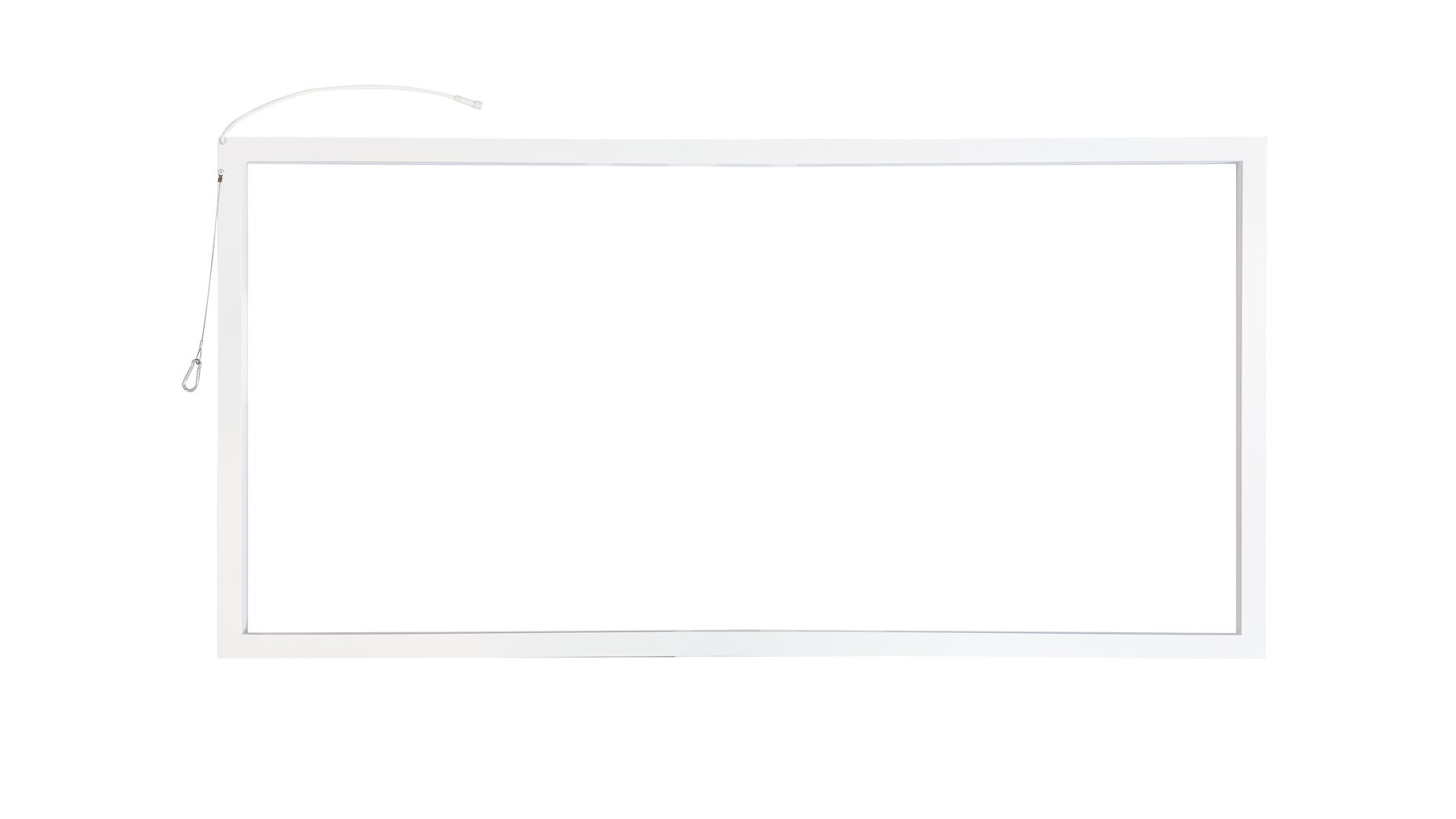

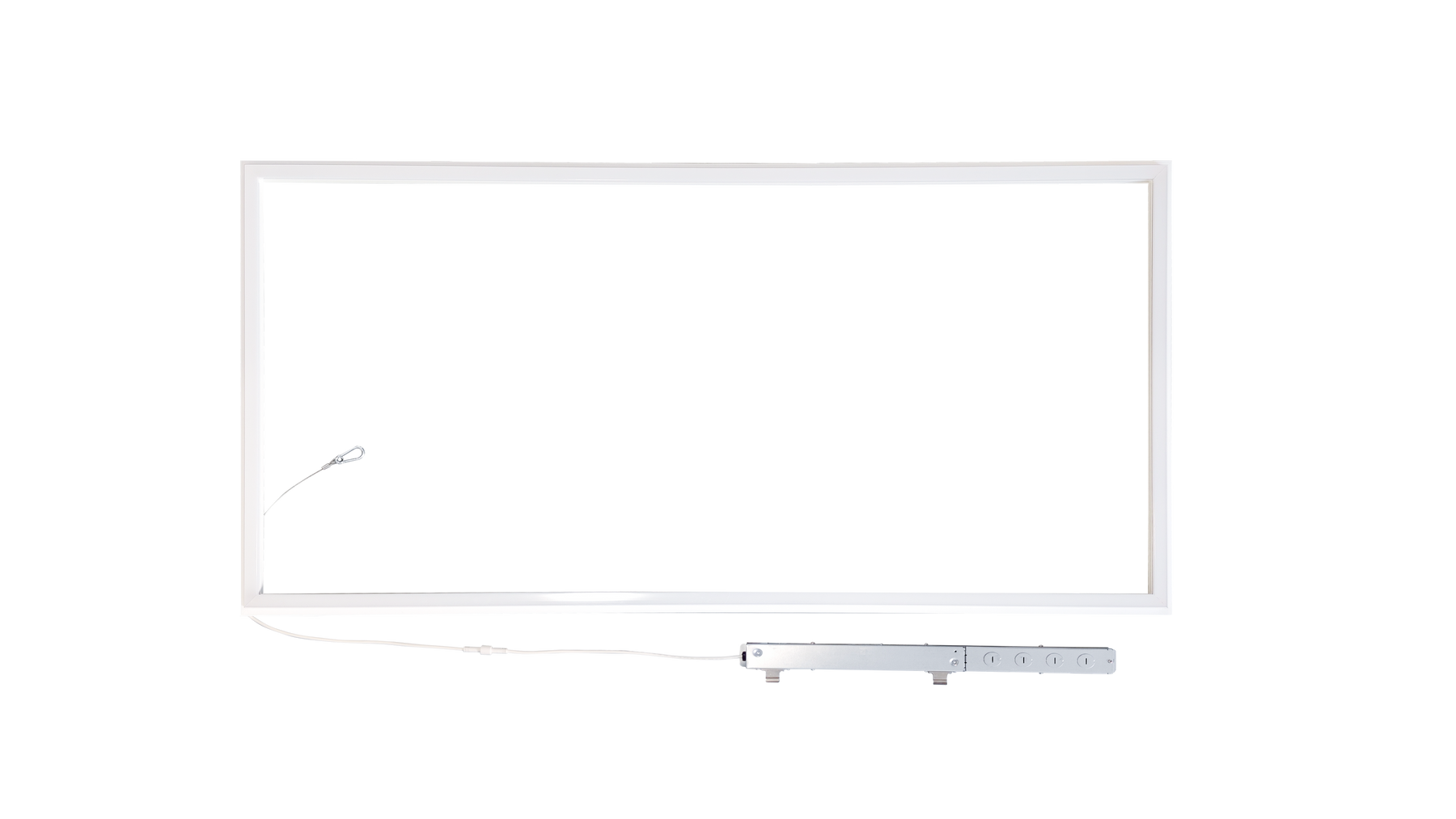

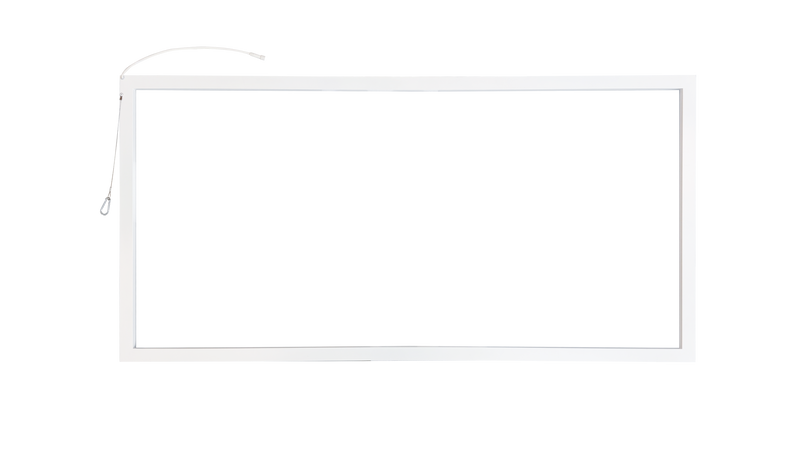

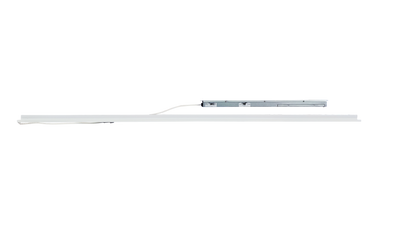

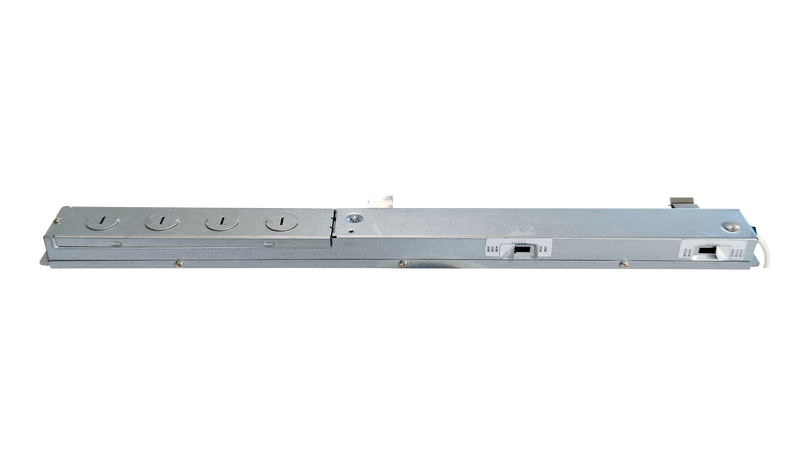

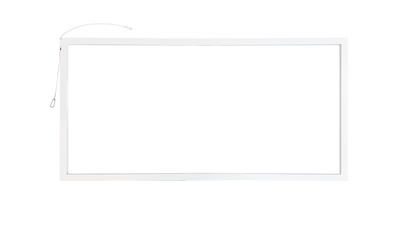

The EiKO Grid Frame Light features a sleek 1-piece design that delivers seamless, continuous illumination with the performance of LED flat panels. Easy to install and customizable with PowerSET and ColorSET technology, it's ideal for modern commercial and institutional spaces.

This is the EiKO GFL-24-PS50-8FCCT-HDIM (16226), a 2x4 LED frame that consumes selectable 30/35/40/45/50 watts of 120-347 volt energy and the driver have a power factor of >0.9. The GFL-24-PS50-8FCCT-HDIM generates an average of 3,900-6,500 lumens with a rated lumen maintenance of 50,000 hours based on L70 lumen depreciation. This LED frame can change between 3000K Warm White, 3500K Bright White, 4000K Cool White, 5000K Daylight and 6500K Daylight and has a CRI of at least 80. This 2x4 frame light fixture is designed to be compatible with most standard 0-10V dimming controls. The EiKO Grid Frame Light fixtures carry a 5 Year Warranty and have Emergency Battery Backup options available (Sold Separately).

Specifications
Manufacturer EiKO
MPN GFL-24-PS50-8FCCT-HDIM
SKU 16226
UPC 031293162267
Lighting Technology LED
Color Temperature (Kelvin) 3000/3500/4000/5000/6500K
Wattage 30/35/40/45/50 Watts
Voltage 120-347V
Frequency 50/60Hz
Lumens 2600/3250/3900/4550/5200 Lumens
Efficiency (Lumens Per Watt) 130 LPW
Dimmable Yes, 0-10V Dimming
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor >0.9
THD (Total Harmonic Distortion) <20%
Lens Polycarbonate Lens
Operating Temperature -4°F-104°F (-20°C to 40°C)
Dimensions 47.75" L x 23.75" W x .98" H
Certifications DLC Premium, UL Certified, FCC, RoHS Compliant
DLC Product Listing S-53B58H
Environment Damp Location Rated
Warranty 5 Year Limited Warranty
