2x4 30/40/50 Watt Controls Ready LED BP1 Backlit Panel Fixture 3500K/4000K/5000K

EiKO SKU: 16297
  • Damp Location Rated
/
Color Temp
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

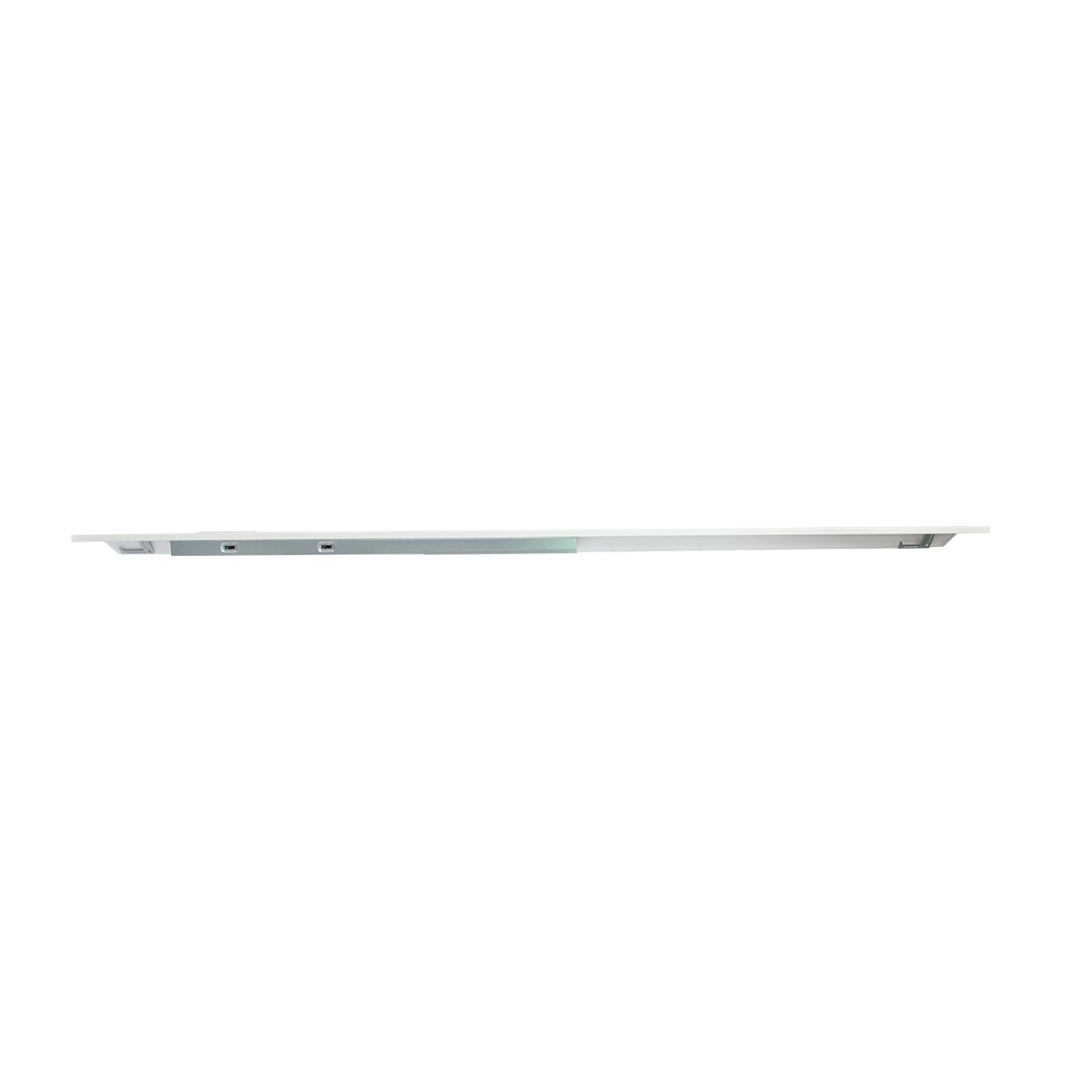

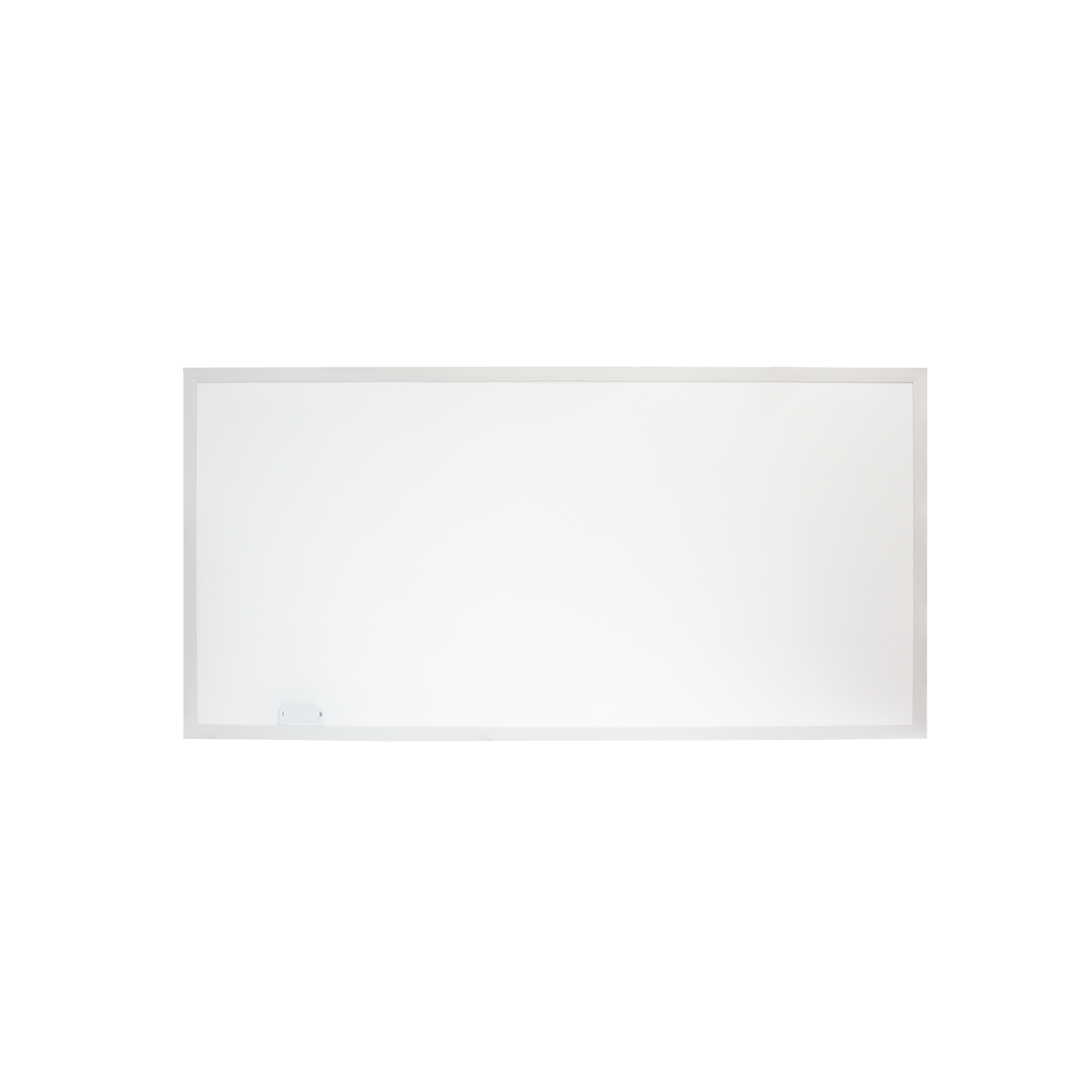

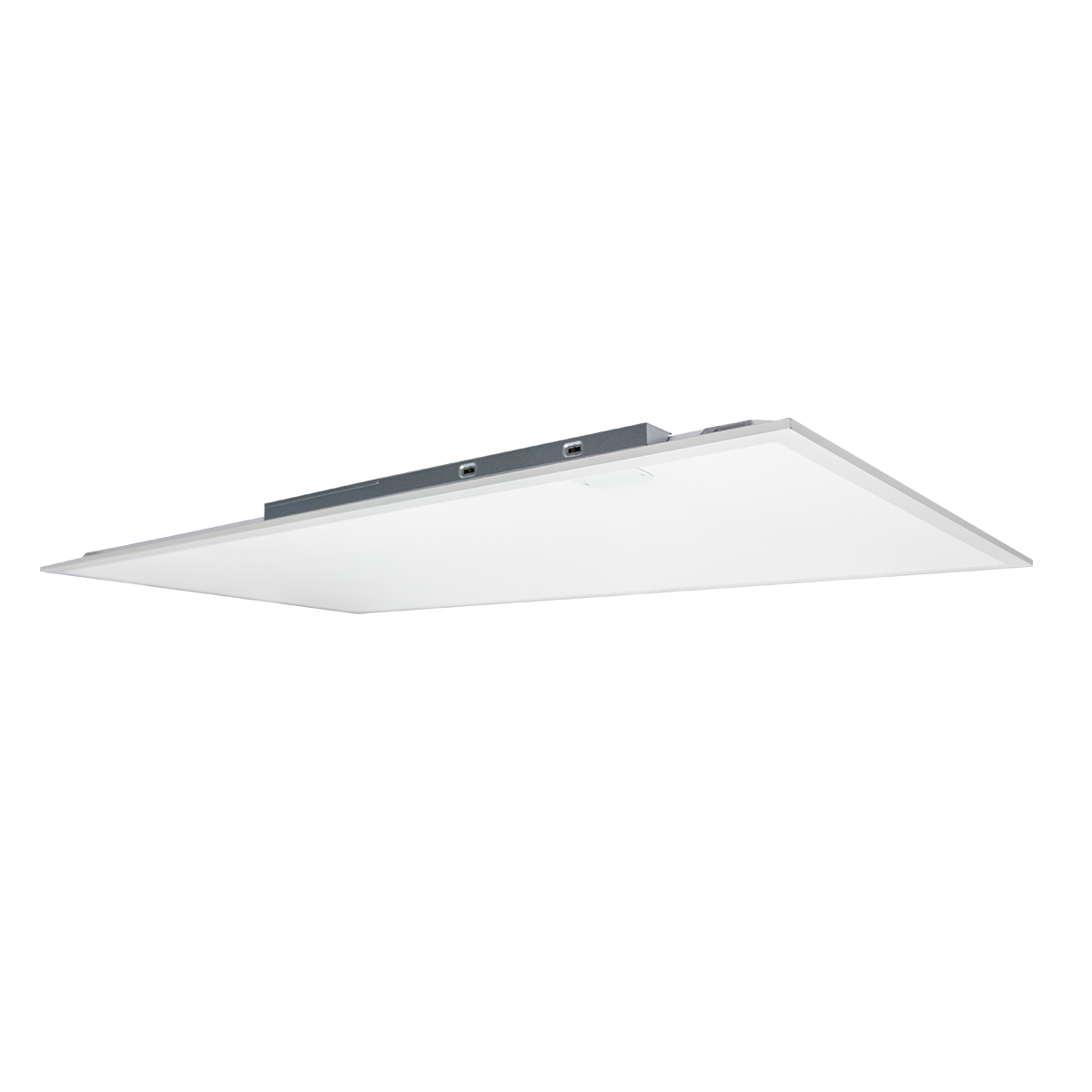

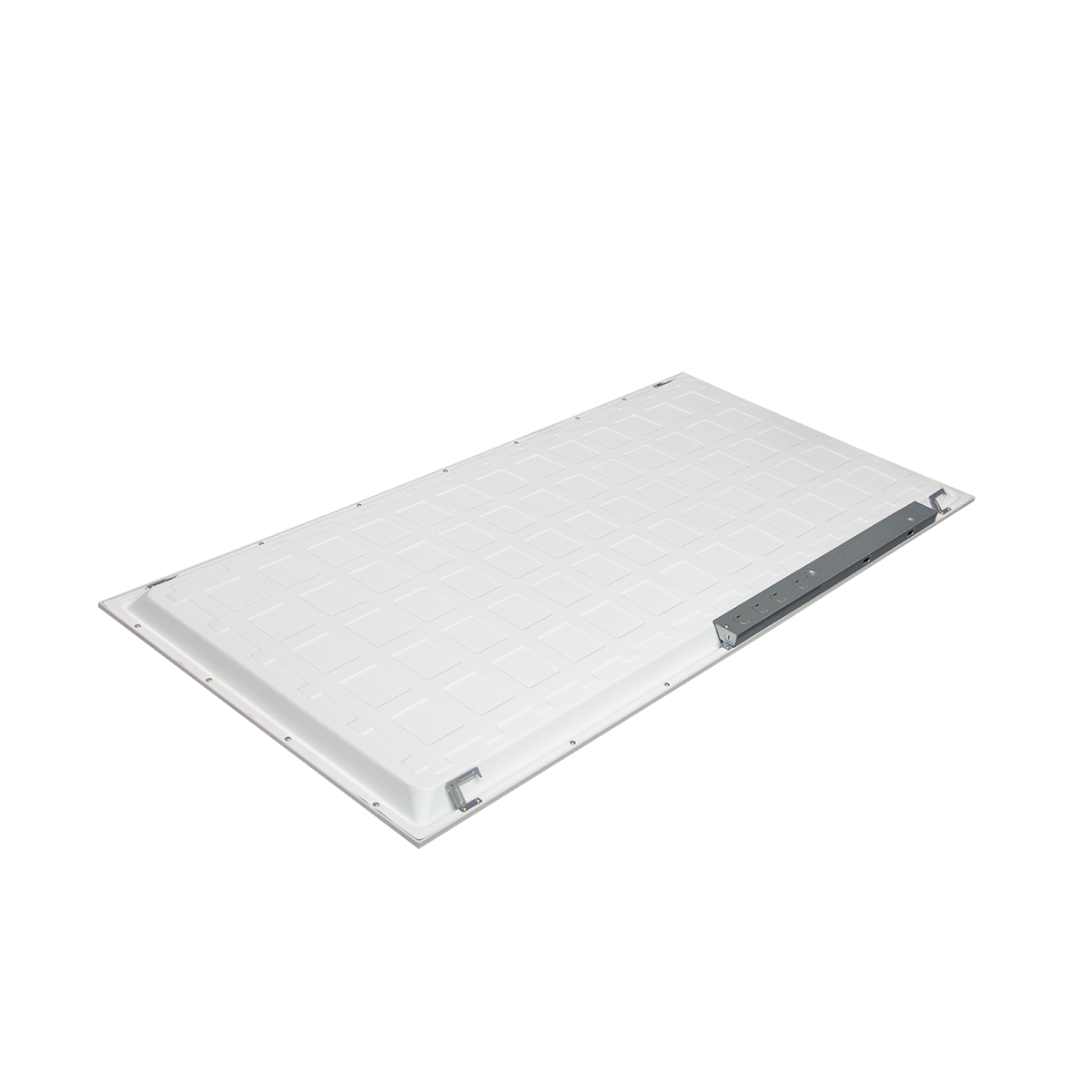

The EiKO BP1-24-PS50-8FCCT-HDIM-CRO from EiKO’s BP1-CRO Series delivers controls ready performance in an ultra slim, lightweight 2x4 design. Engineered for snap-in oval sensor integration, these panels offer seamless control capability while reducing installation time. Featuring PowerSET (30/40/50W selectable) and ColorSET (3500K/4000K/5000K selectable) technology with a 120-347V input, the BP1-CRO provides a cost effective solution with all the versatility to match the needs of any project.

Producing up to 6,750 lumens at 135 lm/W with a wide 120° beam angle, this LED panel ensures uniform, efficient illumination for commercial applications. Equipped with 0-10V dimming, damp location rating, and a 50,000 hour lifespan backed by a 5 year warranty, it delivers reliable, adaptable lighting performance for offices, schools, healthcare facilities, and other professional environments.

Specifications
Manufacturer EiKO
MPN BP1-24-PS50-8FCCT-HDIM-CRO
SKU 16297
UPC 031293162977
Lighting Technology LED
Wattage 30/40/50 Watts
Voltage 120-374 Volt
Color Temperature (Kelvin) 3500K/4000K/5000K
Lumens 4050/5400/6750 Lumens
Efficiency (Lumens Per Watt) 135 lm/W
Dimmable Yes, 0-10V Dimming
Beam Angle 120°
Rated Life 50,000 Hours
CRI (Color Rendering Index) >80 CRI
Power Factor >0.9
THD (Total Harmonic Distortion) <20%
Finish Color White
Construction Steel Frame
Lens Non-Yellowing PMMA Diffused Lens
Operating Temperature -14°F to 113°F (-20°C to 45°C)
Dimensions 23.7" W x 47.7" L x 1.17" H
Environment Damp Location
Certifications ETL, RoHS, FCC, IC Rated
Warranty 5 Year
Documents

EiKO 2x4 Controls Ready BP1 Backlit Panel Specification Sheet

EiKO 2x4 Controls Ready BP1 Backlit Panel Installation Instructions
