Name: 30/35/45 Watt Selectable 120-277V 2x4 LED Emergency Backup Flat Panel 3500K/4000K/5000K
Brand: Halco Lighting Technologies
SKU: 90526
Price: 203.88 USD
Availability: InStock

Halco Lighting Technologies 30/35/45 Watt Selectable 120-277V 2x4 LED Emergency Backup Flat Panel 3500K/4000K/5000K Selectable

Halco Lighting Technologies 30/35/45 Watt Selectable 120-277V 2x4 LED Emergency Backup Flat Panel 3500K/4000K/5000K

DLC Premium Listed, IP20, TAA Compliant, Title 24 Compliant

Price

Color Temp

Selectable

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":47340182601972,"title":"Selectable","option1":"Selectable","option2":null,"option3":null,"sku":"90526","requires_shipping":true,"taxable":true,"featured_image":{"id":42401021001972,"product_id":9249160429812,"position":1,"created_at":"2024-08-07T15:24:09-04:00","updated_at":"2024-08-07T15:24:11-04:00","alt":"Halco Lighting Technologies 30\/35\/45 Watt Selectable 120-277V 2x4 LED Emergency Backup Flat Panel 3500K\/4000K\/5000K Selectable","width":1013,"height":675,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Halco-2x4-Flat-Panel.jpg?v=1723058651","variant_ids":[47340182601972]},"available":true,"name":"30\/35\/45 Watt Selectable 120-277V 2x4 LED Emergency Backup Flat Panel 3500K\/4000K\/5000K - Selectable","public_title":"Selectable","options":["Selectable"],"price":20388,"weight":6260,"compare_at_price":null,"inventory_management":"shopify","barcode":"807154905263","featured_media":{"alt":"Halco Lighting Technologies 30\/35\/45 Watt Selectable 120-277V 2x4 LED Emergency Backup Flat Panel 3500K\/4000K\/5000K Selectable","id":35011297116404,"position":1,"preview_image":{"aspect_ratio":1.501,"height":675,"width":1013,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Halco-2x4-Flat-Panel.jpg?v=1723058651"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Details
Specifications
Documents
Request A Quote

Details

The Halco Flat Panel Series is a family of highly efficient, versatile, configurable recessed fixtures, designed for recessed applications. The DLC Premium listed panels offer lumen output and color temperature selectability, making their versatility and simple aesthetic design perfect for educational, commercial and retail and applications.

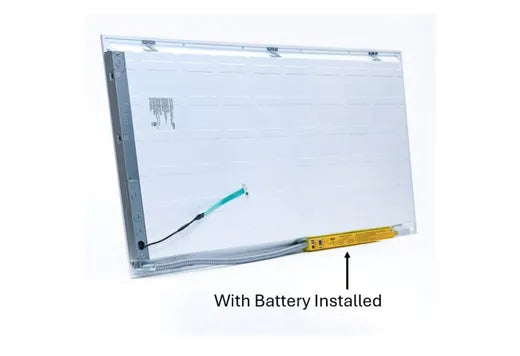

This is the Halco ProLED FPL-24-LS-CS-UNV-EM (90526), the emergency backup version of 90520. This 2x4 LED Flat Panel consumes a selectable 30/35/45 watts of 120-277 volt energy and the driver has a power factor of 90%. The built in emergency battery backup system will stay on, operating for 90 minutes after the power has gone out. Emergency light fixtures automatically switch on when power goes out to illuminate pathways toward egress exits.

The 90526 generates an average of 3,977-5,993 lumens - that's an efficacy of 126-146 lm/W with a rated lumen maintenance of 50,000 hours based on L70 lumen depreciation. This selectable LED flat panel can change between 3500K Bright White, 4000K Cool White, and 5000K Daylight with a simple toggle switch located on the back of the fixture, and has a CRI of at least 80. This 2x4 flat light fixture is designed to be compatible with most standard 0-10V dimming controls. All Halco's LED Flat Panel fixtures carry a 5 Year Warranty and are rated for Damp locations.

Specifications

Manufacturer	Halco Lighting Technologies
MPN	FPL-24-LS-CS-UNV-EM
SKU	90526
UPC	807154905263
DLC Product ID	S-GG0Y38
Lighting Technology	LED
Wattage	30/35/45 Watts
Voltage	120-277V
Frequency	50/60Hz
Color Temperature (Kelvin)	3500/4000/5000K
Lumens	3,977-5,993 Lumens
Efficiency (Lumens Per Watt)	126-146 LPW
Dimmable	Yes, 0-10V Dimming
Beam Angle	115 Degrees
Rated Life	50,000 Hours
CRI (Color Rendering Index)	80 CRI
Power Factor	>0.9
Housing	Steel Housing, Aluminum Frame
Lens	Polymethyl Methacrylate
Emergency Operation	90 Minutes
Operating Temperature	-20°C to 40°C
Dimensions	47-3/4" x 23-3/4" x 1-5/8"
Environment	Damp Location
Certifications	DLC Premium Listed, FCC Compliant, IP20, TAA Compliant, Title 24 Compliant
Warranty	5 Years

Wattage	30 Watts
Color Temperature (Kelvin)	3500K Bright White	4000K Cool White	5000K Daylight
Lumens	3,977 Lumens	4,167 Lumens	4,158 Lumens
Efficiency (Lumens Per Watt)	135 LPW	146 LPW	141 LPW

Wattage	35 Watts
Color Temperature (Kelvin)	3500K Bright White	4000K Cool White	5000K Daylight
Lumens	4,565 Lumens	4,814 Lumens	4,770 Lumens
Efficiency (Lumens Per Watt)	132 LPW	144 LPW	138 LPW

Wattage	45 Watts
Color Temperature (Kelvin)	3500K Bright White	4000K Cool White	5000K Daylight
Lumens	5,660 Lumens	5,993 Lumens	5,882 Lumens
Efficiency (Lumens Per Watt)	126 LPW	139 LPW	131 LPW

Documents

Halco Lighting Technologies 2x4 Selectable LED Emergency Backup Flat Panel Specification Sheet

Halco Lighting Technologies 2x4 Selectable LED Emergency Backup Flat Panel Installation Instructions

Halco Lighting Technologies 2x4 Selectable LED Emergency Backup Flat Panel DLC Product Listing
