CN-RDMSB-V2 C-MAX Round Control Node
MaxLite
SKU: 111456
Recommended or frequently bought with this product
More from Area Light Accessories
Recently viewed
248-276-9640 Weekdays 8-5 EST
Speak With Your Lighting Specialist 248-276-9640 Weekdays 8am-5pm EST
Are you 18 years old or older?
Sorry, the content of this store can't be seen by a younger audience. Come back when you're older.

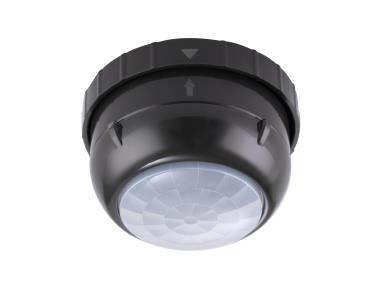

The MaxLite CN-RDMSB-V2 Round Bronze Control Node offers a simple and easy installation process with its "Plug-and-Play" connection. Its pre-installed USB-C receptacle in controls ready fixtures and locking screw make this product resistant to vandalism and vibration. Easy Programming with IR Remote (requires at least one (1) CN-REMOTE per project, sold separately) allows you to save and store settings to minimize commissioning time. With its advanced control technology and 5-year warranty, this product is built to last.
| Manufacturer | MaxLite |
| MPN | CN-RDMSB-V2 |
| SKU | 111456 |
| UPC | 767627061622 |
| Lighting Technology | LED |
| Sensor Technology | Passive Infrared and Photoelectric |
| Operating Voltage | 12-20VDC |
| Operating Current | Max 12mA |
| Photocell | LOW(1FC) / MEDIUM(20FC) / HIGH(50FC) (PC OFF) |
| Control Output | 0-10V |
| Connector Interface | USB-C |
| Operating Temperature | -40°F to 130°F (-40°C to 55°C) |
| Dimensions | 2.48" x 1.93" |
| Certifications | IP66, FCC Compliant, Title 20 Compliant |
| Environment | Wet Location |
| Warranty | 5 Year Standard |
