CFLEX-85W-1800-L-TB 85 Watt LED 700-2400mA Programmable Constant Current Driver

Magnitude Lighting SKU: CFLEX-85W-1800-L-TB
Magnitude Lighting CFLEX-85W-1800-L-TB 85 Watt LED 700-2400mA Programmable Constant Current Driver

CFLEX-85W-1800-L-TB 85 Watt LED 700-2400mA Programmable Constant Current Driver

Magnitude Lighting SKU: CFLEX-85W-1800-L-TB
  • Title 24 Compliant
/
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

LED Driver Cross Reference:
Keystone KTLD-20-UV-SC730-56-VDIM-AF4 /USB
Fulham T2C1UNV150P-40L
Fulham T1M1UNV210P-60L

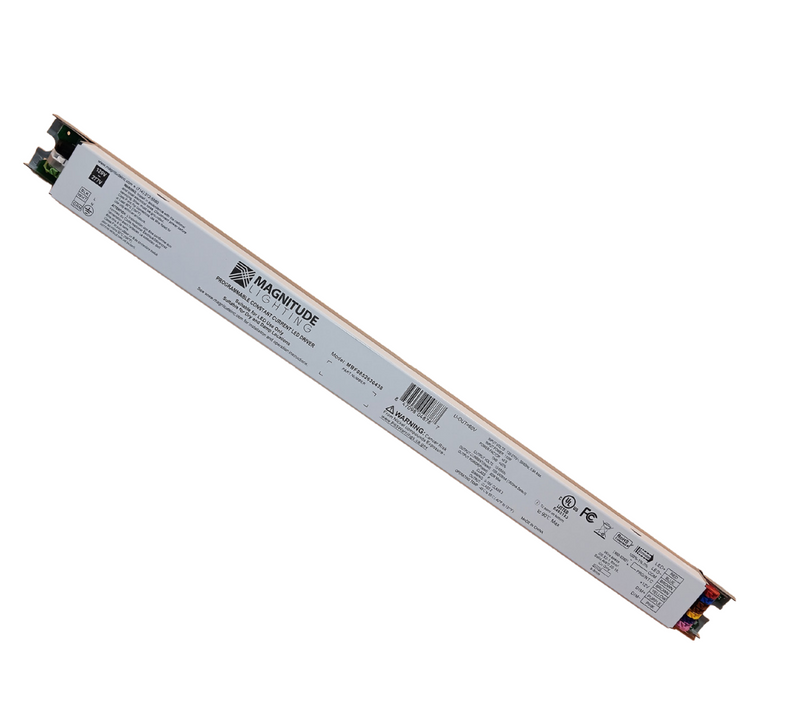

Magnitude CFLEX Linear is a simple and intuitive programmable LED driver suitable for virtually any installation scenario. Dimmable down to 1% with dim-to-off functionality, the Magnitude CFLEX Linear is available pre-programmed for high volume installations or can be customized with the optional stand-alone two-wire programming tool that does not require a PC or cellphone interface. Replacement-ready and Class P Listed, this linear and easy-to-install LED driver saves time, reduces SKUs and is ideal for OEM applications.

The CFLEX-85W-1800-L-TB is a 85 watt LED electronic driver with a wide voltage output range of 10V-55V and wide current output range of 700-2400mA. It features a programmable constant current, steel housing, side leads connector style, two half-hole flange mounting, dry/damp location rating, and a 5 year warranty. Meets Title 24/JA8 requirements.

Specifications
Manufacturer Magnitude Lighting
MPN CFLEX-85W-1800-L-TB
SKU CFLEX-85W-1800-L-TB
UPC 810020793123
Lighting Technology LED
Wattage 85 Watts
Voltage 120-277VAC ± 10%
Voltage Output 10V-55VDC
Current Output 700-2400mA
Frequency 50/60Hz
Efficiency 89% @ Max Load
Dimmable 0-10V Dimming
Rated Life 50,000 Hours at 75°C
Power Factor 0.9 @ Max Load
Finish Color White
Housing Steel
Mounting Two half-hole flange mounts
Operating Temperature -25°C to 40°C
Dimensions 16.69" L x 1.18" W x 1.00" H
Environment Dry and Damp Locations
Certifications UL 8750 Class 2, Class P, Title 24 Compliant
Warranty 5 Year Standard



Documents

Magnitude CFLEX Linear Programmable Constant Current Driver Specification Sheet
