Customers have trusted Hatch Lighting for over 30 years to provide them with the top-notch products and personal service that only an independent manufacturer can provide. Today, Hatch has stayed true to its roots and is the premier independent full-line power supply manufacturer in the industry. Whether you need transformers, HID ballasts, fluorescent ballasts, or LED drivers, Hatch has you covered.
Hatch Lighting presents their dimming, constant current LED drivers. These LED drivers are optimized for high efficiency performance and are ideal for use in interior luminaire applications. This driver is comes in many styles of cases, allowing them to fit numerous applications. Protections that this driver has are short circuit, overload, and over temperature protection. The Hatch Lighting LED drivers are suitable for dry and damp locations.

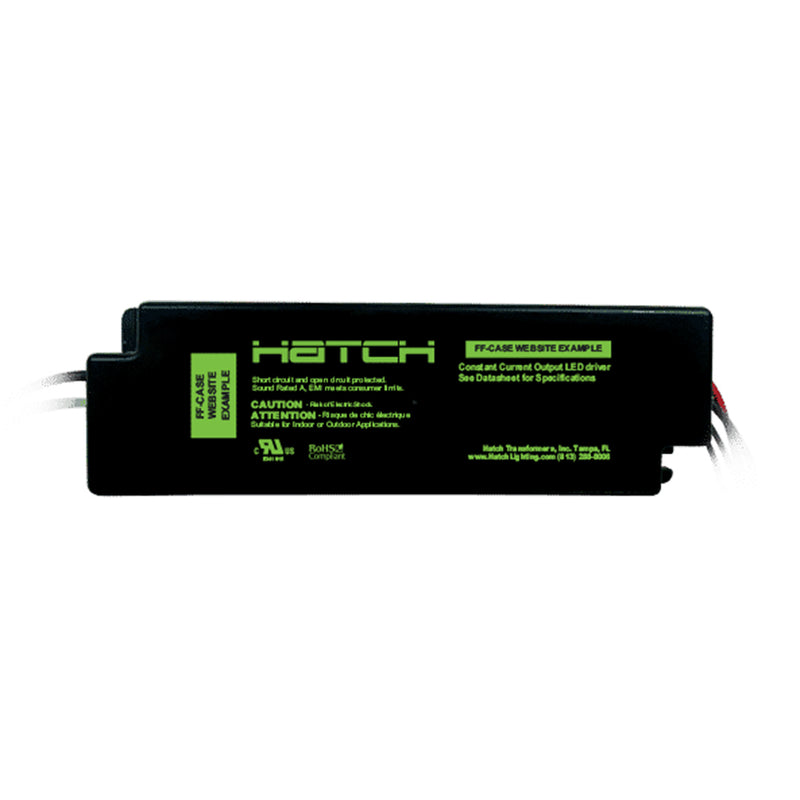

This item is the Hatch LED Driver part number LC30-0700Z-UNV-FF. The input voltage is universal 120-277 volt, and it is a dimmable LED driver. The constant current output current is 700mA output. Approvals of this driver include cURus, Class 2, CE, RoHS, Dry or Damp Locations.
Hatch Lighting provides the purchaser a 5 year warranty, given that it was properly installed per instructions and under normal operating conditions of use. Each power supply will be free from defects in material or workmanship 5 years from the date of manufacture. Hatch Transformers Inc. (HTI) warrants to the purchaser that its LED Drivers are free of defects in material and workmanship from the date of manufacture for 5 years based on a typical 12hr/day operation and subject to the Terms and Conditions.
| Manufacturer | Hatch Lighting |
| MPN | LC30-0700Z-UNV-FF |
| SKU | LC30-0700Z-UNV-FF |
| UPC | 797281661524 |
| Lighting Technology | LED |
| Driver Type | Constant Current |
| Wattage | 30 Watts |
| Input Voltage | 120-277VAC |
| Voltage Output | 22-43VDC |
| Input Current | 0.36/0.16A |
| Current Output | 700mA |
| Input Power | 33 Watts |
| Frequency | 50/60Hz |
| Dimmable | 0-10VDC; 10%-100% |
| MTBF | 324,000 Hours @ 70°C ambient |
| Power Factor | >0.90 |
| THD (Total Harmonic Distortion) | <20% |
| Operating Temperature | -40°C to 90°C |
| Dimensions | 5.31” L x 1.66” W x 1.00” H |
| Certifications | IP66 Rated, cULus, RoHS Compliant |
| Environment | Wet Locations |
| Warranty | 5 Year Limited |
