Single Face Chicago Approved Emergency Battery Backup Edge-Lit LED Exit Sign

Satco SKU: 67-340
Satco Single Face Chicago Approved Emergency Battery Backup Edge-Lit LED Exit Sign White Red
Satco Single Face Chicago Approved Emergency Battery Backup Edge-Lit LED Exit Sign
Satco Single Face Chicago Approved Emergency Battery Backup Edge-Lit LED Exit Sign
Satco Single Face Chicago Approved Emergency Battery Backup Edge-Lit LED Exit Sign
Satco Single Face Chicago Approved Emergency Battery Backup Edge-Lit LED Exit Sign
Satco Single Face Chicago Approved Emergency Battery Backup Edge-Lit LED Exit Sign White Red
Satco Single Face Chicago Approved Emergency Battery Backup Edge-Lit LED Exit Sign
Satco Single Face Chicago Approved Emergency Battery Backup Edge-Lit LED Exit Sign
Satco Single Face Chicago Approved Emergency Battery Backup Edge-Lit LED Exit Sign
Satco Single Face Chicago Approved Emergency Battery Backup Edge-Lit LED Exit Sign

Single Face Chicago Approved Emergency Battery Backup Edge-Lit LED Exit Sign

Satco SKU: 67-340
  • Chicago Code Compliant, Damp Location Rated, UL Certified
/
Finish Color
Letter Color
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

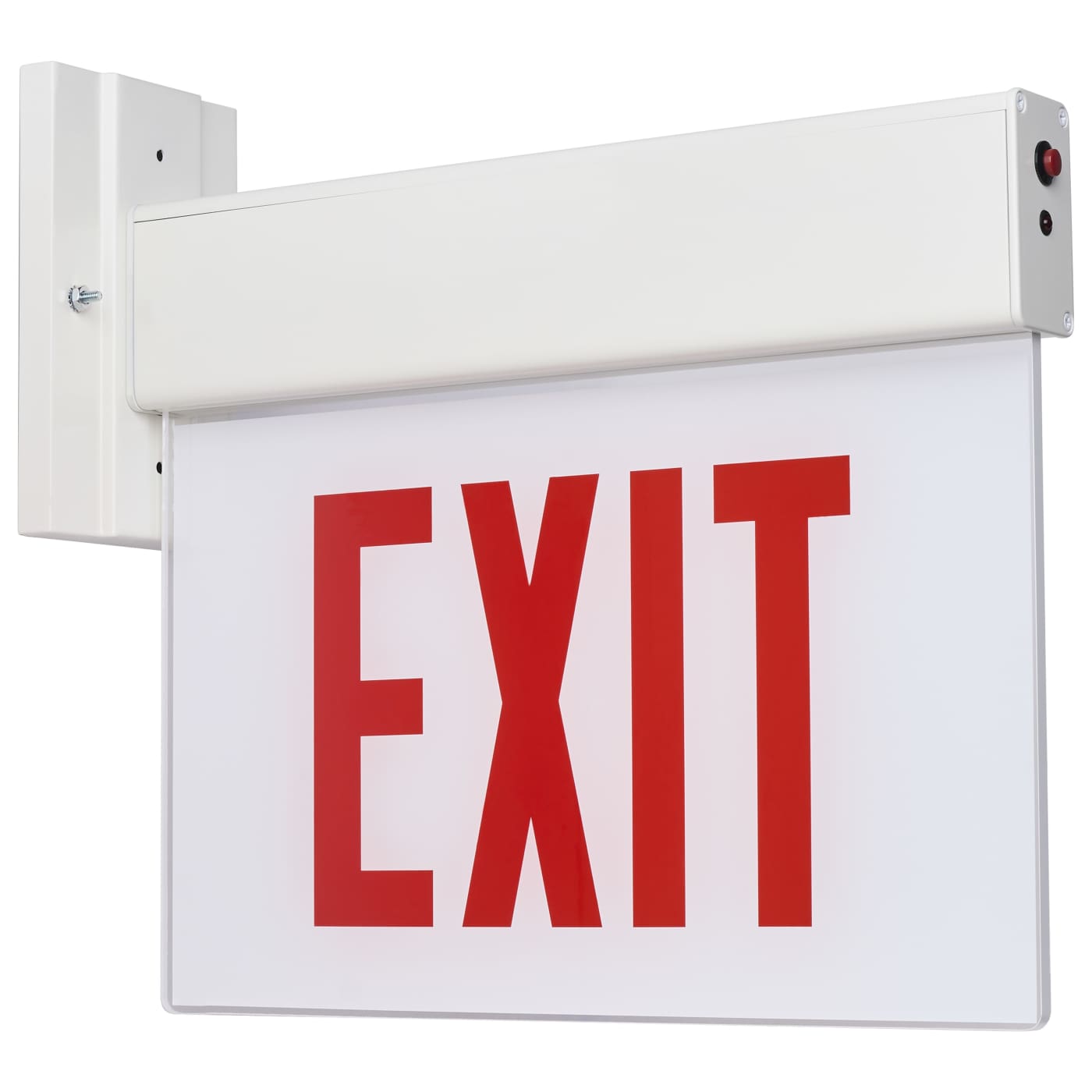

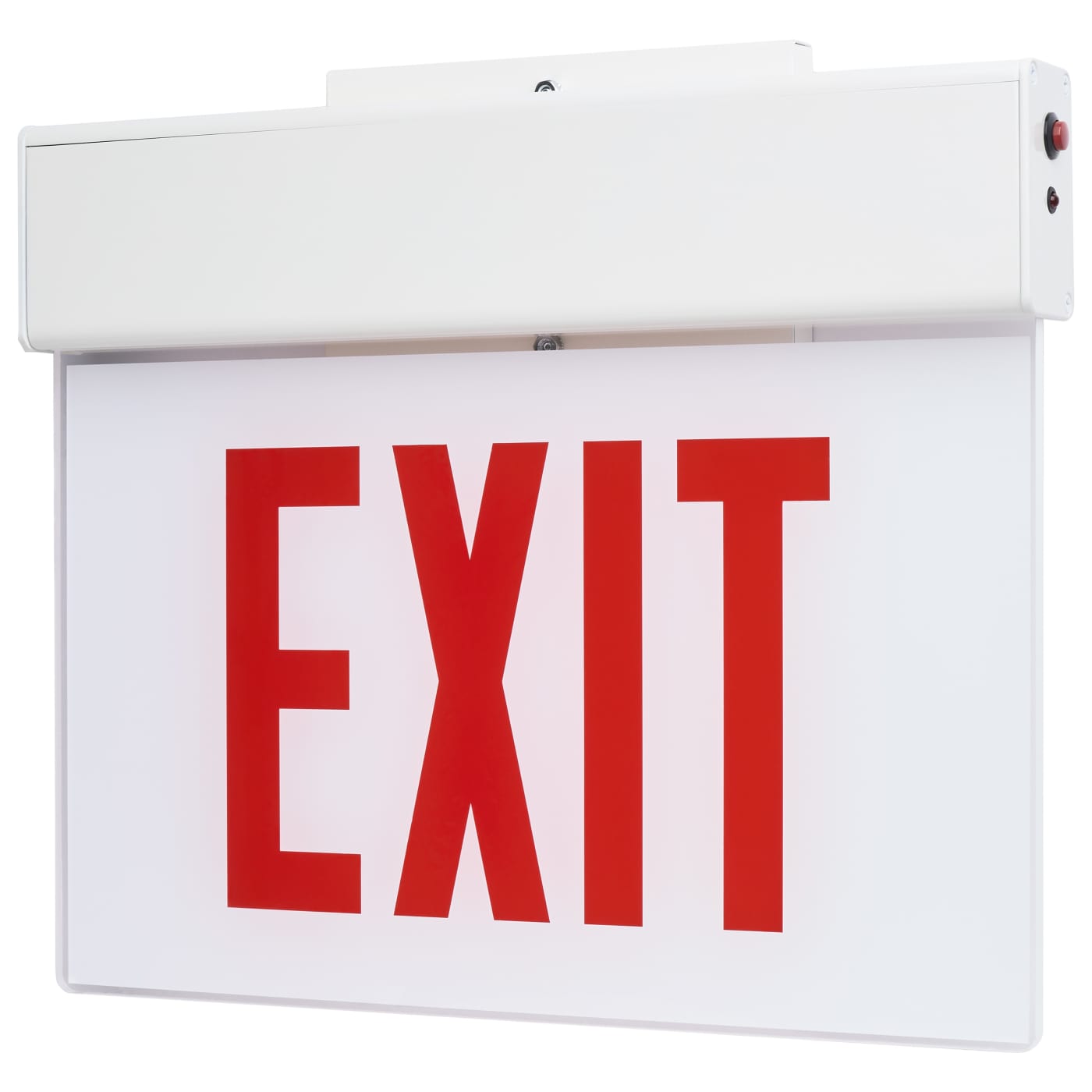

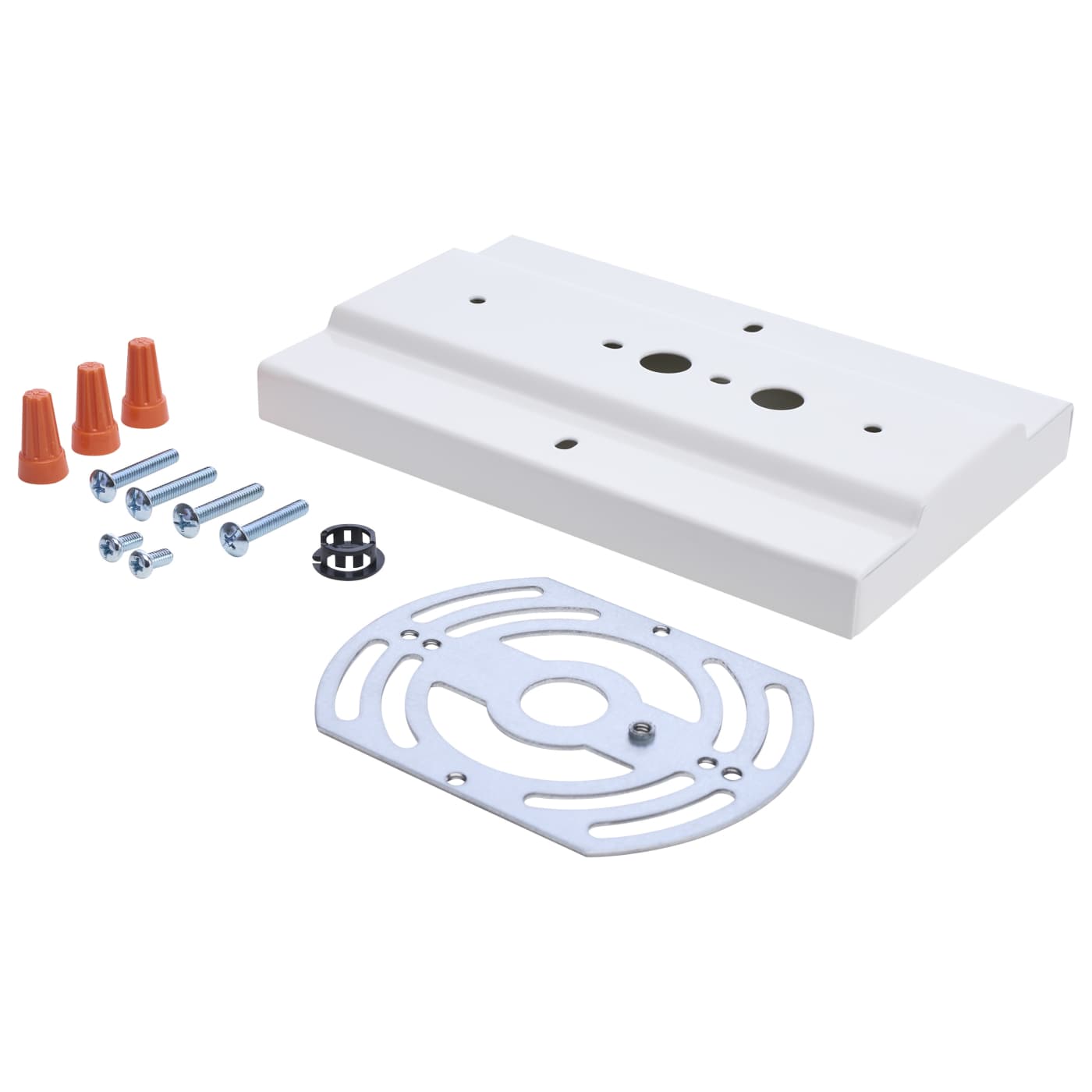

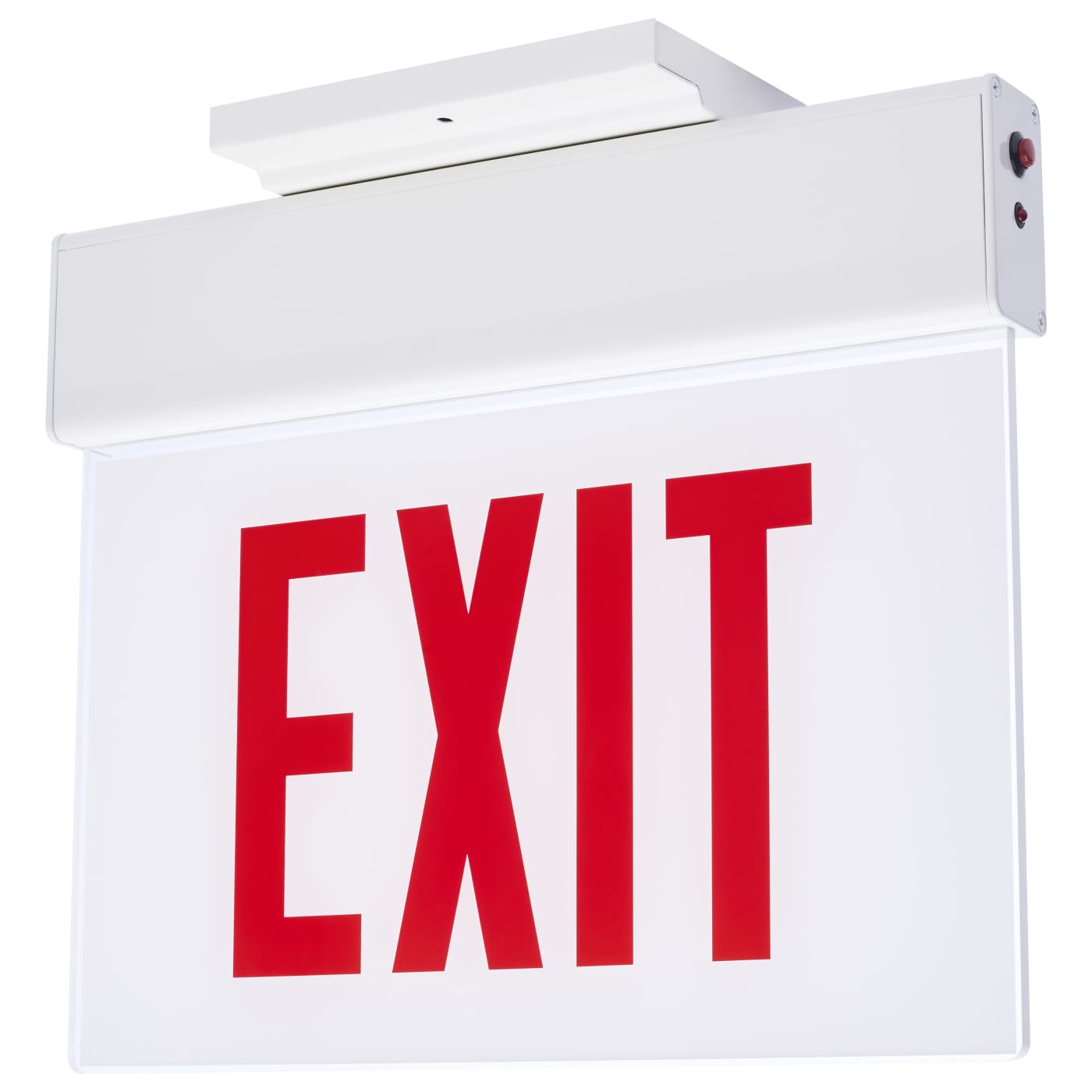

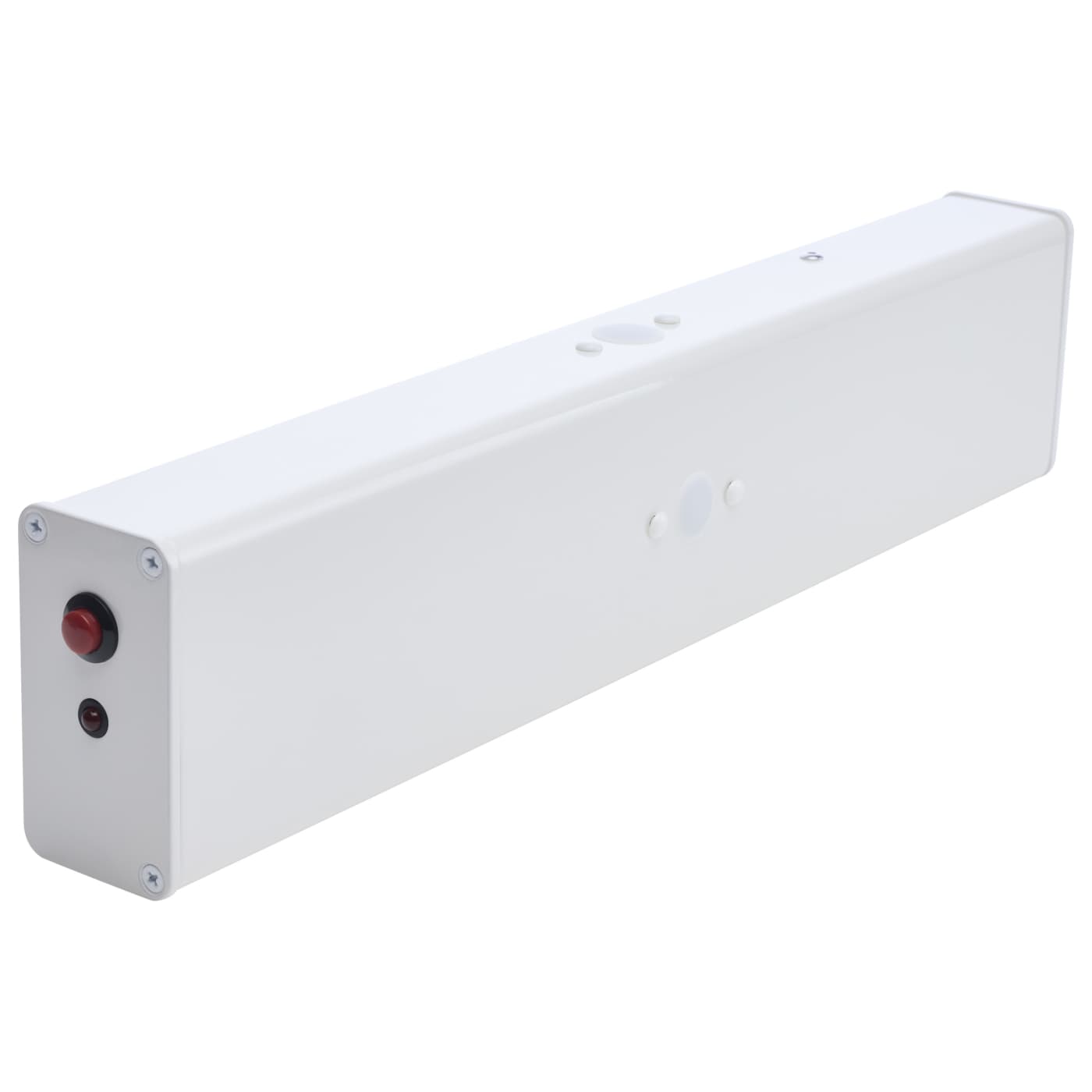

SATCO|NUVO’s Chicago approved LED Edge-Lit Exit Signs combine a sleek, modern appearance with dependable emergency performance for Chicago code-compliant installations. Available in single and double face models, these fixtures feature an edge-lit acrylic panel with bold red 6-inch EXIT lettering, universal mounting for wall, ceiling, or end installations, and durable white steel housing. Integrated battery backup provides 90 minutes of emergency illumination during power outages, while a push-to-test button and AC power indicator simplify routine maintenance. Designed for 120-277V operation, UL 924 certified, and damp location rated, these fixtures deliver reliable exit marking for commercial, institutional, and public spaces. Optional Single and Double Face directional arrow panel kits are sold separately to accommodate a variety of applications.

The Satco Chicago Code Approved EXE/WH/U/BBS/CH (67-340) includes a Single Face with Red Lettering and Featuring Surface Mounting for Top, Side or Back. Rated for 120-277V input voltage and includes a built-in test switch and provides 90 minutes of Emergency Power. With a white Steel housing measuring 14.06" W X 1.6" Depth by 11.54 " H. Certifications include Chicago Code Rated, UL Certified and is rated for damp locations with a 2-year warranty.

Specifications
Manufacturer Satco
MPN EXE/WH/U/BBS/CH
SKU 67-340
UPC 045923415739
Finish Color White
Letter Color Red
Wattage 4 Watts
Voltage 120-277V
Run Time 90 Minutes
Battery LiFePO4
Recharge Time 24 Hours
Testing Function Manual Test Button w/Charging Indicator
Mounting Surface Mount
Housing Steel
Dimensions 14.06"W x 11.54"H x 1.61"D
Operating Temperature +41F to +113F (+5C to +45C)
Environment Damp Location Rated
Certifications Chicago Approved, UL Certified
Warranty 2 Year Warranty
Documents

Satco Chicago Approved LED Edge Lit Exit Sign Specification Sheet

Satco Chicago Approved LED Edge Lit Exit Sign Installation Instructions
