Driver Cross Reference Chart:
Keystone KT-EMRG-LED-12-1200-AC /DF

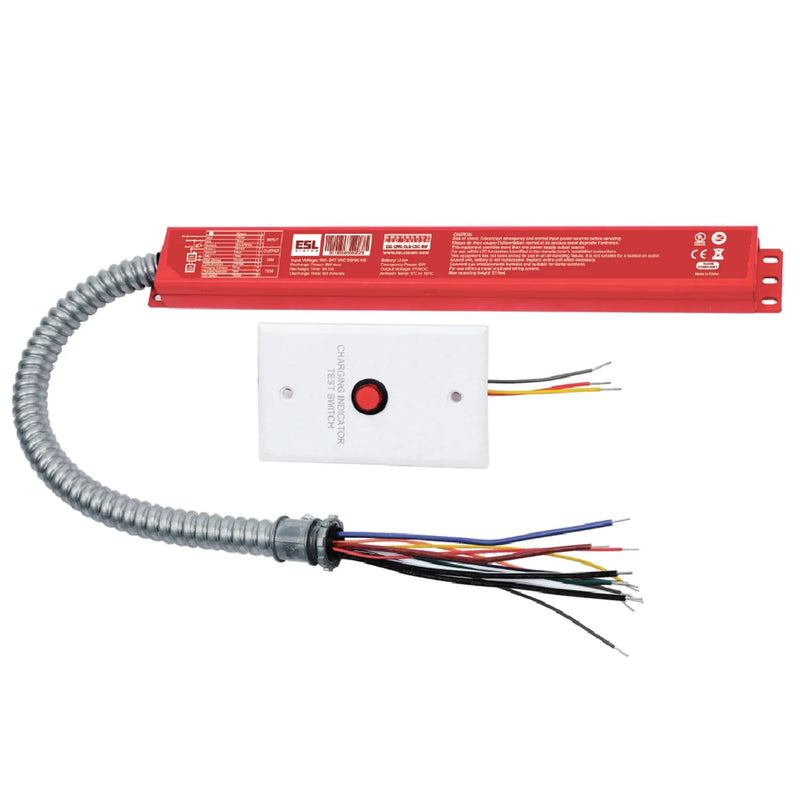

The ESL Lighting emergency driver is specially designed with features to meet UL 924 and CSA C22.2 No. 141 Emergency Lighting. Its slim profile design and auto test functions ensure efficient operation and reduced maintenance, while the emergency wall plate is equipped with a test switch and charging indicator for testing. This driver is compliant with CEC Title 20 and NEC Emergency Lighting standards, and provides up to 90 minutes of consistent egress lighting.
This 8 watt LED emergency driver is the perfect choice for reliable emergency lighting. With an AC input rating of 100-347V and a rated current of 150mA (max), the ESL-EMG-SL6-CSC-8W offers a maximum emergency output power of 8 watts, a 170VDC output voltage and 90 minutes of emergency operation. Its output short and open protection ensure safety, while its charging time of 24 hours and 1000 cycles provides long-lasting operation. Operating temperature is 41° to 122°F (5° to 50°C), and has a 5 year warranty.
|Input Power||10 Watts|
|Emergency Operation||90 Minutes|
|Charging Time||24 Hours|
|Operating Temperature||5° to 50°C|
|Dimensions||3.59" x 1.5" x 0.99"|
|Certifications||FCC Compliant, RoHS Compliant|
|Warranty||5 Year Standard|
