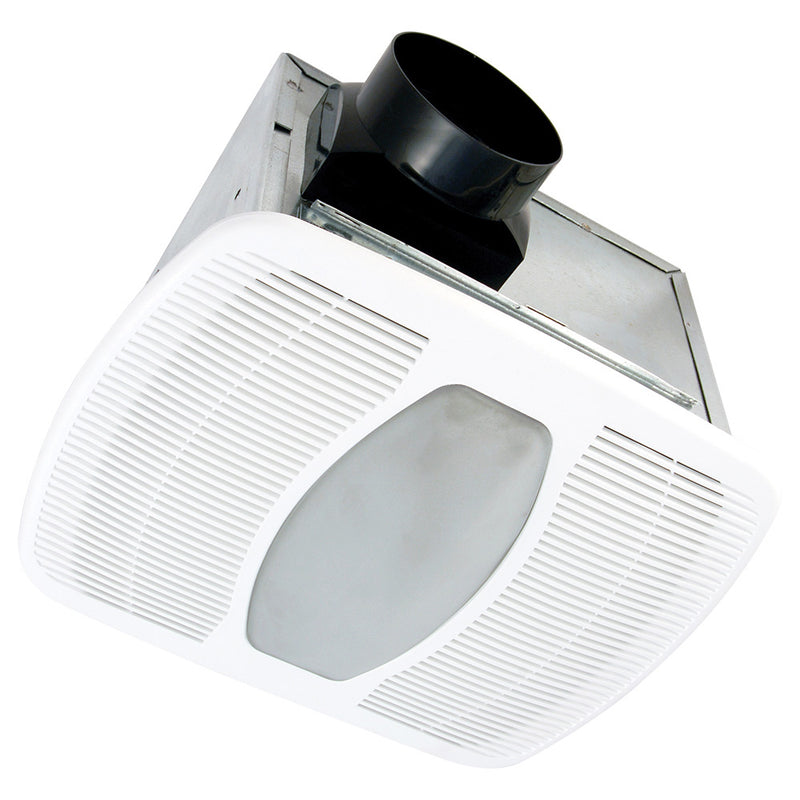

Name: LEDAK100 100 CFM Energy Star Quiet Exhaust Fan with LED Light
Brand: Air King Ventilation
SKU: LEDAK100
Price: 149.31 USD
Availability: InStock

Air King Ventilation LEDAK100H 100 CFM Energy Star Humidity Sensing Exhaust Fan with LED Light

Air King Ventilation AK50S 50 CFM Energy Star Exhaust Fan

Title 24 Compliant, Energy Star

Price

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

Details
Specification
Documents
Request A Quote

Details

Air King’s ENERGY STAR® certified LED series quiet exhaust fans with LED light provide quiet and effective ventilation for your bathroom, laundry room, or other areas of the home needing ventilation. A dimmable, 8.5 watt, 3000K warm white, 800 lumen LED light with a moonstone glass lens evenly distributes lighting throughout the room.

The LEDAK100 unit easily installs using the included adjustable hanging brackets and the 4 inch round plastic duct connector with damper protects against backdrafts and ensures quiet operation. A side access panel allows you to wire the fan from inside or outside the housing. The LED series is UL listed for installation over a tub or shower on a GFCI circuit and is HVI Certified. Available in multiple airflow configuration and perfect for use in small to mid size bathrooms.

Specification

Manufacturer	Air King Ventilation
MPN	LEDAK100
SKU	LEDAK100
UPC	083162940810
CFM @ .1 SP	100
CFM @ .25 SP (High Speed)	83
Sones @ .1 SP	2.0
Sound Level	Quiet
Maximum Fan Wattage	26.5 Watts
Fan Speed	1182 RPM
Amps	0.6 Amps
Effective Ventilation Area	100 - 125 SQ FT
ASHRAE 62.2 Ventilation	Local
LED Wattage	8.5 Watts
LED Color Temperature	3000K Warm White
LED Lumens	800 Lumens
LED Efficiency (Lumens per Watt)	94 LPW
Dimmable	Yes
LED Cover	Moonstone Glass Lens
Duct Size	4 Inch Round
Collar/Damper	Plastic
Housing	Metal
Mounting	Hanger Bars
Grill Dimensions	13-3/4" D x 11" W
Fan Housing Dimension	10-7/8" D x 9-3/8" W x 7-7/8" H
Fan Certifications	Title 24 Compliant, Energy Star
LED Certifications	Title 24 and JA8 Compliant
Warranty	5 Year Limited Warranty

Documents

Air King LEDAK100 100 CFM Energy Star Quiet Exhaust Fan with LED Light Specification Sheet

Air King LEDAK100 100 CFM Energy Star Quiet Exhaust Fan with LED Light Installation Instructions

Request A Quote

Green Electrical Supply is here to help you maximize your green^® on all your electrical supply purchases.

Looking for a quote or need help finding an item, simply use our Contact Us form to request a quote, get assistance, or provide feedback. If you're more of a talker, feel free to give us a call at 248-276-9640 during our weekday hours from 8 am to 5 pm EST.

Here's a little tip to make your quote request even smoother: don't forget to copy the SKU from above and include it along with the quantity in your request. It's a small detail that ensures we get you the most accurate and efficient service. And, just a heads up, the SKU is dynamic, especially for products with multiple options. So, be sure to choose your required options first to view the precise SKU.
